L&L Luce&Light
517
37x37 mm
140x140 mm
H 120 mm
230Vac
230Vac
Ø 40 mm
Ø 140 mm
H 120 mm
24Vdc
24Vdc

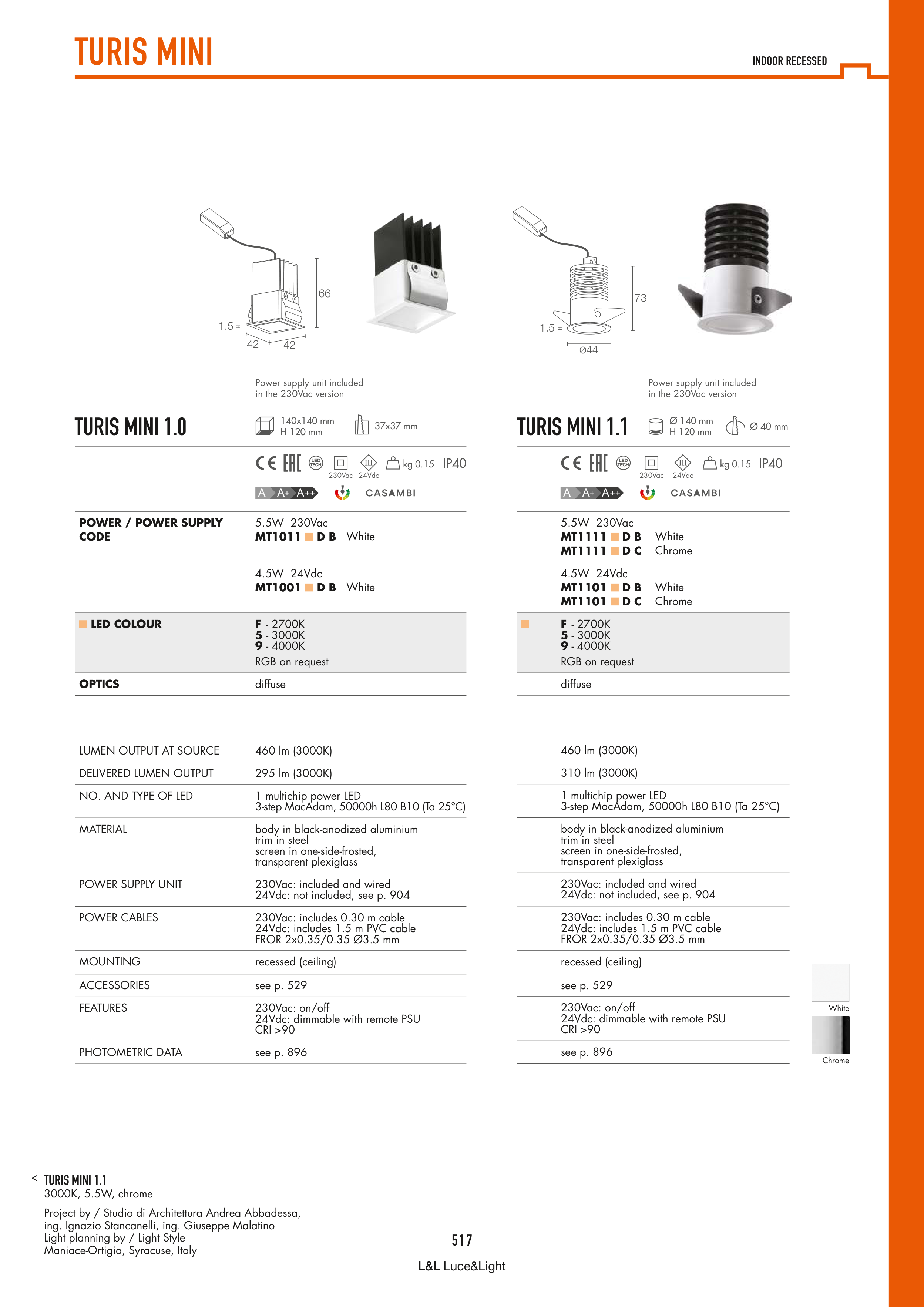

TURIS MINI
IP40
IP40
TURIS MINI 1.0
TURIS MINI 1.1
INDOOR RECESSED
POWER / POWER SUPPLY
CODE
5.5W 230Vac
MT1011 D B
White
4.5W 24Vdc
MT1001 D B
White
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
RGB on request
OPTICS
diffuse
LUMEN OUTPUT AT SOURCE
460 lm (3000K)
DELIVERED LUMEN OUTPUT
295 lm (3000K)
NO. AND TYPE OF LED
1 multichip power LED
3-step MacAdam, 50000h L80 B10 (Ta 25°C)
MATERIAL
body in black-anodized aluminium
trim in steel
screen in one-side-frosted,
transparent plexiglass
POWER SUPPLY UNIT
230Vac: included and wired
24Vdc: not included, see p. 904
POWER CABLES
230Vac: includes 0.30 m cable
24Vdc: includes 1.5 m PVC cable
FROR 2x0.35/0.35 Ø3.5 mm
MOUNTING
recessed (ceiling)
ACCESSORIES
see p. 529
FEATURES
230Vac: on/off
24Vdc: dimmable with remote PSU
CRI >90
PHOTOMETRIC DATA
see p. 896
5.5W 230Vac
MT1111 D B
MT1111 D C
White
Chrome
4.5W 24Vdc
MT1101 D B
MT1101 D C
White
Chrome
F - 2700K
5 - 3000K
9 - 4000K
RGB on request
diffuse
460 lm (3000K)
310 lm (3000K)
1 multichip power LED
3-step MacAdam, 50000h L80 B10 (Ta 25°C)
body in black-anodized aluminium
trim in steel
screen in one-side-frosted,
transparent plexiglass
230Vac: included and wired
24Vdc: not included, see p. 904
230Vac: includes 0.30 m cable
24Vdc: includes 1.5 m PVC cable
FROR 2x0.35/0.35 Ø3.5 mm
recessed (ceiling)
see p. 529
230Vac: on/off
24Vdc: dimmable with remote PSU
CRI >90
see p. 896
Power supply unit included
in the 230Vac version
Power supply unit included
in the 230Vac version
TURIS MINI 1.1
3000K, 5.5W, chrome
Project by / Studio di Architettura Andrea Abbadessa,
ing. Ignazio Stancanelli, ing. Giuseppe Malatino
Light planning by / Light Style
Maniace-Ortigia, Syracuse, Italy
White
Chrome
kg 0.15
kg 0.15
66
42
42
1.5
73
Ø44
1.5
