511
510
IP40
IP40

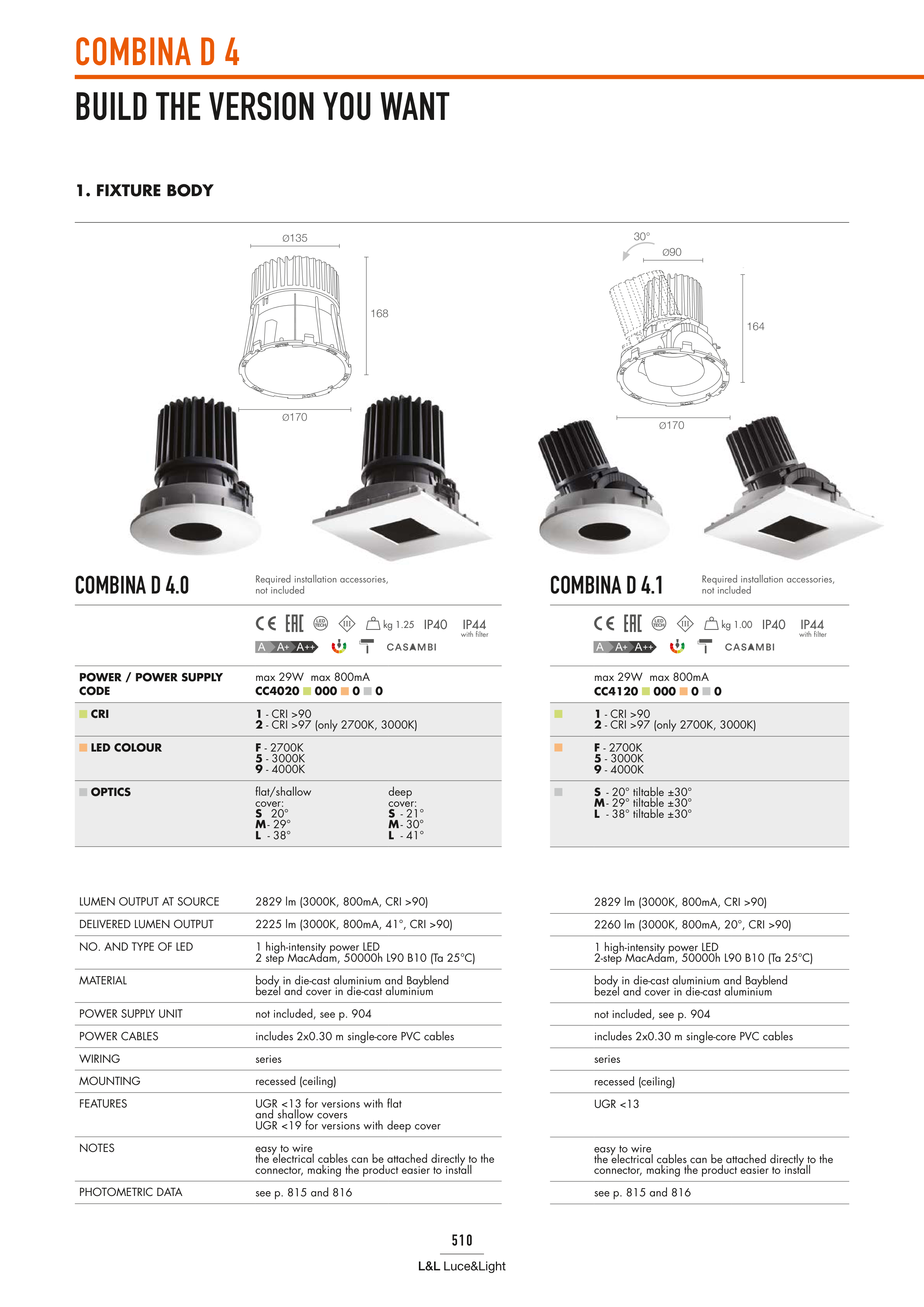

COMBINA D 4.0
COMBINA D 4.1
168
Ø135
Ø170
Ø90
30°
164
Ø170
COMBINA D 4
IP44
IP44
kg 1.25
kg 1.00
POWER / POWER SUPPLY
CODE
max 29W max 800mA
CC4020 000 0 0
CRI
1 - CRI >90
2 - CRI >97 (only 2700K, 3000K)
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
flat/shallow
cover:
S 20°
M - 29°
L - 38°
deep
cover:
S - 21°
M - 30°
L - 41°
LUMEN OUTPUT AT SOURCE
2829 lm (3000K, 800mA, CRI >90)
DELIVERED LUMEN OUTPUT
2225 lm (3000K, 800mA, 41°, CRI >90)
NO. AND TYPE OF LED
1 high-intensity power LED
2 step MacAdam, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in die-cast aluminium and Bayblend
bezel and cover in die-cast aluminium
POWER SUPPLY UNIT
not included, see p. 904
POWER CABLES
includes 2x0.30 m single-core PVC cables
WIRING
series
MOUNTING
recessed (ceiling)
FEATURES
UGR <13 for versions with flat
and shallow covers
UGR <19 for versions with deep cover
NOTES
easy to wire
the electrical cables can be attached directly to the
connector, making the product easier to install
PHOTOMETRIC DATA
see p. 815 and 816
max 29W max 800mA
CC4120 000 0 0
1 - CRI >90
2 - CRI >97 (only 2700K, 3000K)
F - 2700K
5 - 3000K
9 - 4000K
S - 20° tiltable ±30°
M - 29° tiltable ±30°
L - 38° tiltable ±30°
2829 lm (3000K, 800mA, CRI >90)
2260 lm (3000K, 800mA, 20°, CRI >90)
1 high-intensity power LED
2-step MacAdam, 50000h L90 B10 (Ta 25°C)
body in die-cast aluminium and Bayblend
bezel and cover in die-cast aluminium
not included, see p. 904
includes 2x0.30 m single-core PVC cables
series
recessed (ceiling)
UGR <13
easy to wire
the electrical cables can be attached directly to the
connector, making the product easier to install
see p. 815 and 816
Required installation accessories,
not included
Required installation accessories,
not included
1. FIXTURE BODY
BUILD THE VERSION YOU WANT
with filter
with filter
