L&L Luce&Light
L&L Luce&Light
507
506
IP40
IP40

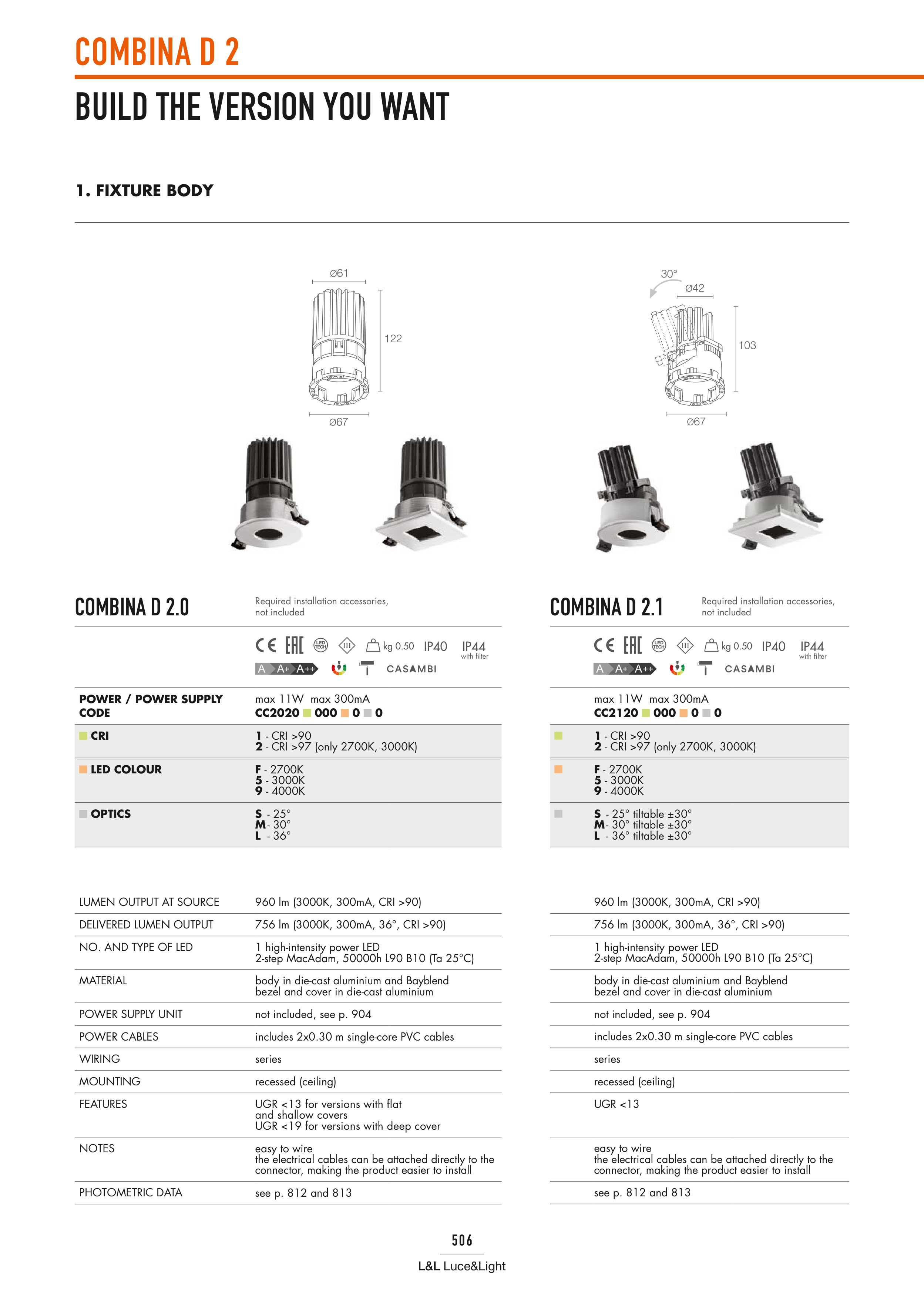

COMBINA D 2.0
COMBINA D 2.1
122
Ø61
Ø67
103
Ø42
Ø67
30°
COMBINA D 2
IP44
IP44
kg 0.50
kg 0.50
POWER / POWER SUPPLY
CODE
max 11W max 300mA
CC2020 000 0 0
CRI
1 - CRI >90
2 - CRI >97 (only 2700K, 3000K)
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 25°
M - 30°
L - 36°
LUMEN OUTPUT AT SOURCE
960 lm (3000K, 300mA, CRI >90)
DELIVERED LUMEN OUTPUT
756 lm (3000K, 300mA, 36°, CRI >90)
NO. AND TYPE OF LED
1 high-intensity power LED
2-step MacAdam, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in die-cast aluminium and Bayblend
bezel and cover in die-cast aluminium
POWER SUPPLY UNIT
not included, see p. 904
POWER CABLES
includes 2x0.30 m single-core PVC cables
WIRING
series
MOUNTING
recessed (ceiling)
FEATURES
UGR <13 for versions with flat
and shallow covers
UGR <19 for versions with deep cover
NOTES
easy to wire
the electrical cables can be attached directly to the
connector, making the product easier to install
PHOTOMETRIC DATA
see p. 812 and 813
max 11W max 300mA
CC2120 000 0 0
1 - CRI >90
2 - CRI >97 (only 2700K, 3000K)
F - 2700K
5 - 3000K
9 - 4000K
S - 25° tiltable ±30°
M - 30° tiltable ±30°
L - 36° tiltable ±30°
960 lm (3000K, 300mA, CRI >90)
756 lm (3000K, 300mA, 36°, CRI >90)
1 high-intensity power LED
2-step MacAdam, 50000h L90 B10 (Ta 25°C)
body in die-cast aluminium and Bayblend
bezel and cover in die-cast aluminium
not included, see p. 904
includes 2x0.30 m single-core PVC cables
series
recessed (ceiling)
UGR <13
easy to wire
the electrical cables can be attached directly to the
connector, making the product easier to install
see p. 812 and 813
Required installation accessories,
not included
Required installation accessories,
not included
BUILD THE VERSION YOU WANT
1. FIXTURE BODY
with filter
with filter
