L&L Luce&Light
504
IP40
IP40

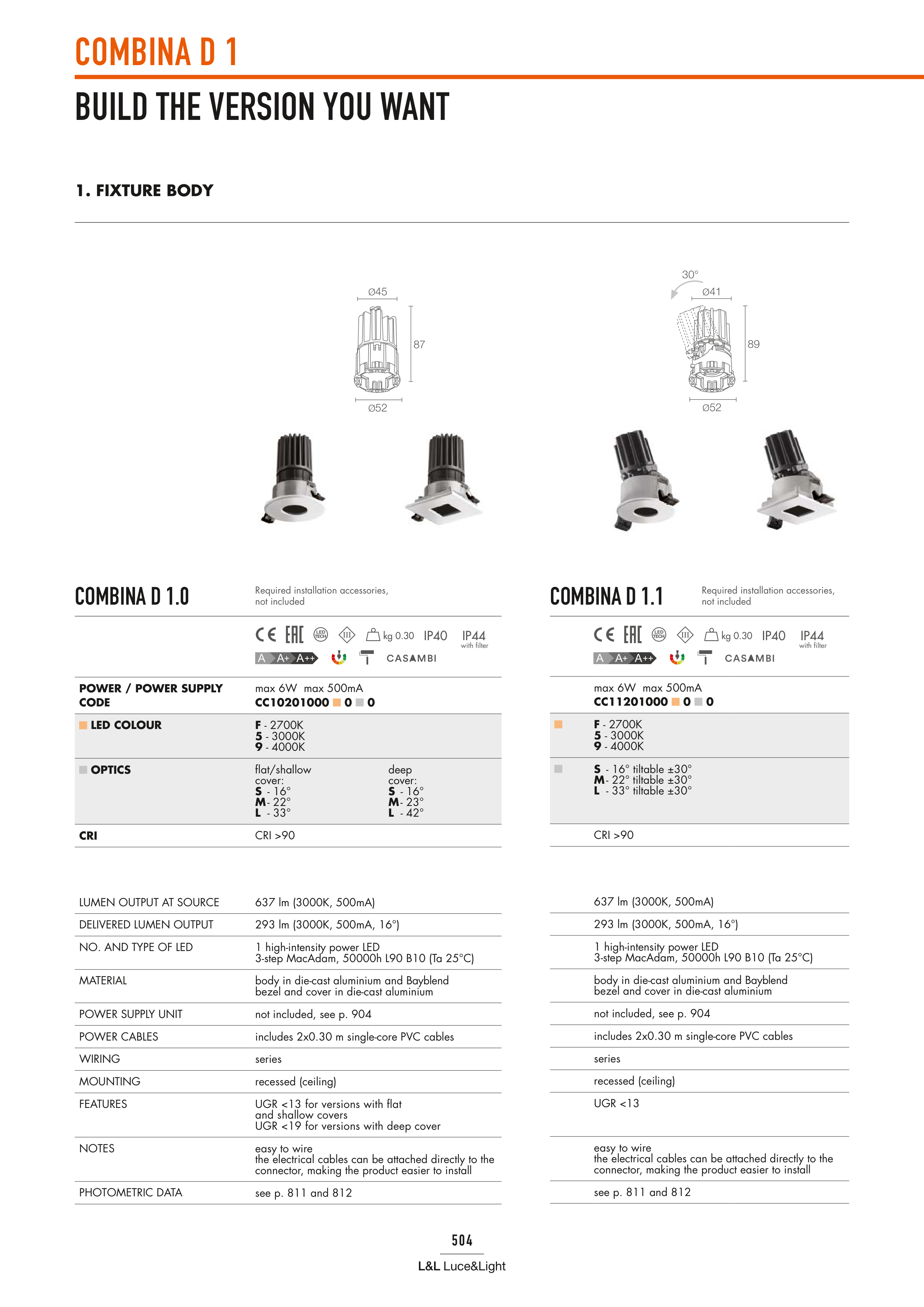

COMBINA D 1.0
COMBINA D 1.1
87
Ø52
Ø45
89
Ø52
Ø41
30°
IP44
IP44
COMBINA D 1
BUILD THE VERSION YOU WANT
kg 0.30
kg 0.30
POWER / POWER SUPPLY
CODE
max 6W max 500mA
CC10201000 0 0
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
flat/shallow
cover:
S - 16°
M - 22°
L - 33°
deep
cover:
S - 16°
M - 23°
L - 42°
CRI
CRI >90
LUMEN OUTPUT AT SOURCE
637 lm (3000K, 500mA)
DELIVERED LUMEN OUTPUT
293 lm (3000K, 500mA, 16°)
NO. AND TYPE OF LED
1 high-intensity power LED
3-step MacAdam, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in die-cast aluminium and Bayblend
bezel and cover in die-cast aluminium
POWER SUPPLY UNIT
not included, see p. 904
POWER CABLES
includes 2x0.30 m single-core PVC cables
WIRING
series
MOUNTING
recessed (ceiling)
FEATURES
UGR <13 for versions with flat
and shallow covers
UGR <19 for versions with deep cover
NOTES
easy to wire
the electrical cables can be attached directly to the
connector, making the product easier to install
PHOTOMETRIC DATA
see p. 811 and 812
max 6W max 500mA
CC11201000 0 0
F - 2700K
5 - 3000K
9 - 4000K
S - 16° tiltable ±30°
M - 22° tiltable ±30°
L - 33° tiltable ±30°
CRI >90
637 lm (3000K, 500mA)
293 lm (3000K, 500mA, 16°)
1 high-intensity power LED
3-step MacAdam, 50000h L90 B10 (Ta 25°C)
body in die-cast aluminium and Bayblend
bezel and cover in die-cast aluminium
not included, see p. 904
includes 2x0.30 m single-core PVC cables
series
recessed (ceiling)
UGR <13
easy to wire
the electrical cables can be attached directly to the
connector, making the product easier to install
see p. 811 and 812
Required installation accessories,
not included
Required installation accessories,
not included
1. FIXTURE BODY
with filter
with filter
