L&L Luce&Light
478
600/800
170
150
150

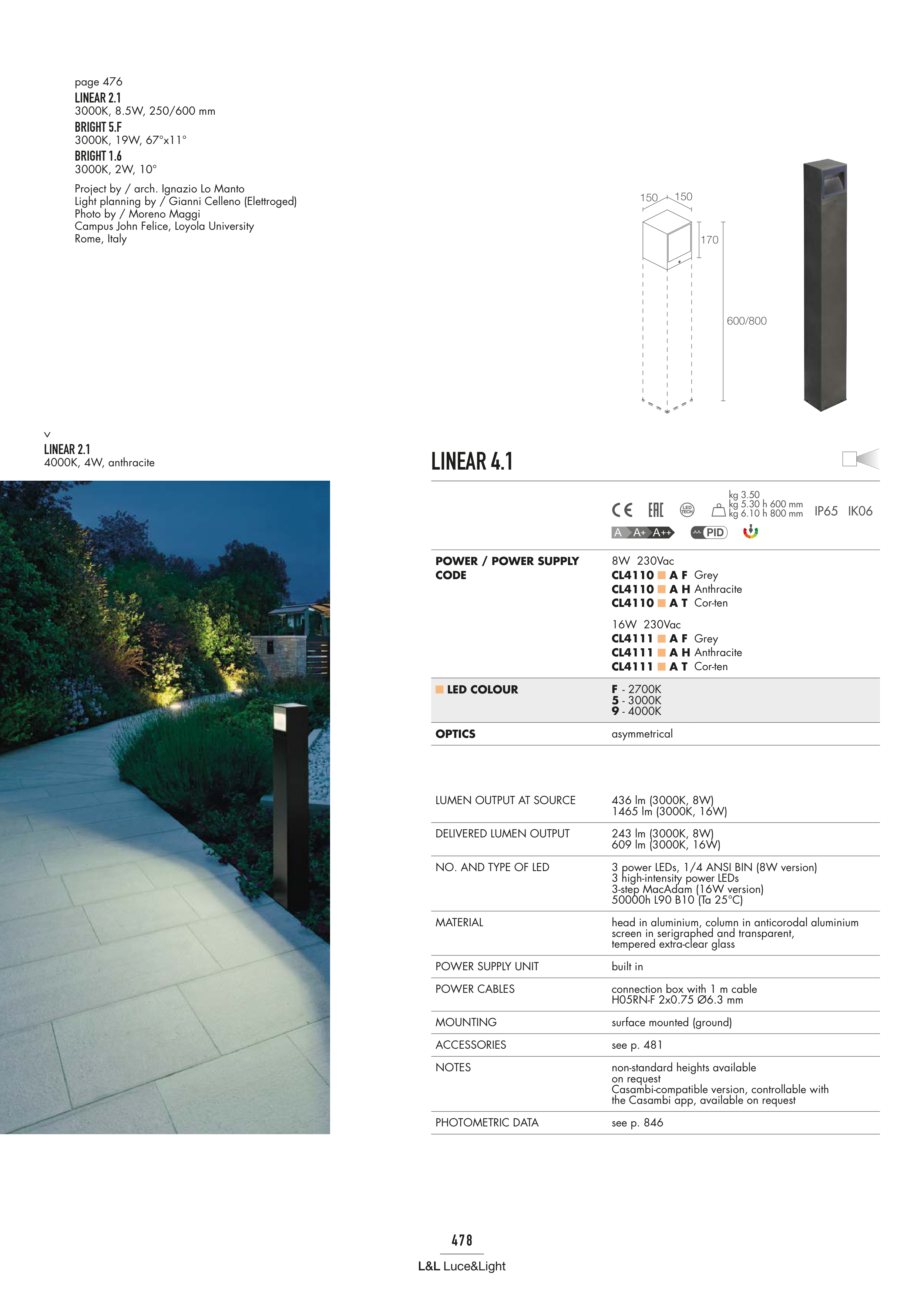

LINEAR 4.1
IK06
IP65
POWER / POWER SUPPLY
CODE
8W 230Vac
CL4110 A F
CL4110 A H
CL4110 A T
Grey
Anthracite
Cor-ten
16W 230Vac
CL4111 A F
CL4111 A H
CL4111 A T
Grey
Anthracite
Cor-ten
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
asymmetrical
LUMEN OUTPUT AT SOURCE
436 lm (3000K, 8W)
1465 lm (3000K, 16W)
DELIVERED LUMEN OUTPUT
243 lm (3000K, 8W)
609 lm (3000K, 16W)
NO. AND TYPE OF LED
3 power LEDs, 1/4 ANSI BIN (8W version)
3 high-intensity power LEDs
3-step MacAdam (16W version)
50000h L90 B10 (Ta 25°C)
MATERIAL
head in aluminium, column in anticorodal aluminium
screen in serigraphed and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
built in
POWER CABLES
connection box with 1 m cable
H05RN-F 2x0.75 Ø6.3 mm
MOUNTING
surface mounted (ground)
ACCESSORIES
see p. 481
NOTES
non-standard heights available
on request
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 846
LINEAR 2.1
4000K, 4W, anthracite
page 476
LINEAR 2.1
3000K, 8.5W, 250/600 mm
BRIGHT 5.F
3000K, 19W, 67°x11°
BRIGHT 1.6
3000K, 2W, 10°
Project by / arch. Ignazio Lo Manto
Light planning by / Gianni Celleno (Elettroged)
Photo by / Moreno Maggi
Campus John Felice, Loyola University
Rome, Italy
kg 3.50
kg 5.30 h 600 mm
kg 6.10 h 800 mm
