L&L Luce&Light
474
250/600/800
120
100
100
250/600/800
120
100
100

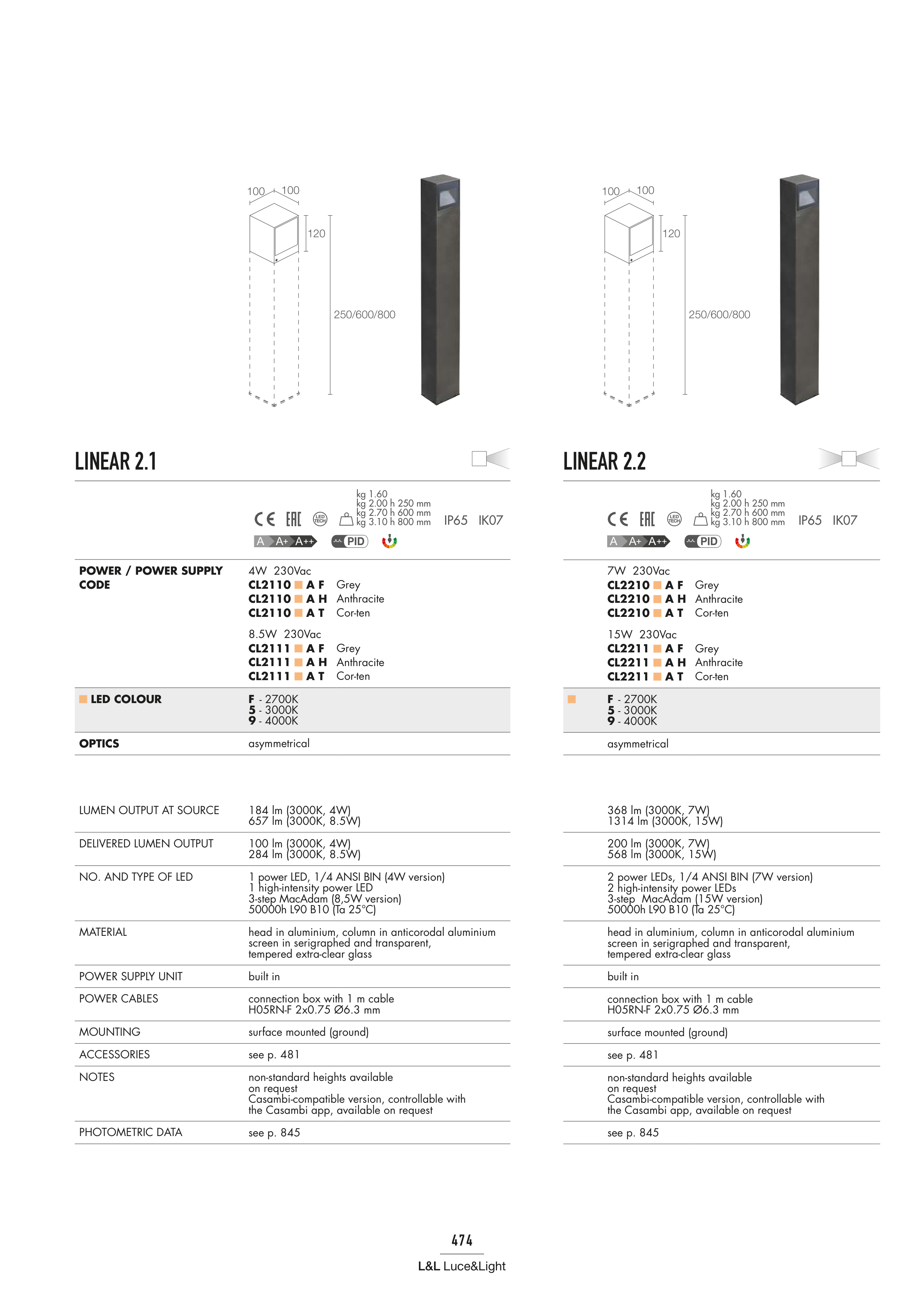

LINEAR 2.2
LINEAR 2.1
IK07
IK07
IP65
IP65
POWER / POWER SUPPLY
CODE
4W 230Vac
CL2110 A F
CL2110 A H
CL2110 A T
Grey
Anthracite
Cor-ten
8.5W 230Vac
CL2111 A F
CL2111 A H
CL2111 A T
Grey
Anthracite
Cor-ten
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
asymmetrical
LUMEN OUTPUT AT SOURCE
184 lm (3000K, 4W)
657 lm (3000K, 8.5W)
DELIVERED LUMEN OUTPUT
100 lm (3000K, 4W)
284 lm (3000K, 8.5W)
NO. AND TYPE OF LED
1 power LED, 1/4 ANSI BIN (4W version)
1 high-intensity power LED
3-step MacAdam (8,5W version)
50000h L90 B10 (Ta 25°C)
MATERIAL
head in aluminium, column in anticorodal aluminium
screen in serigraphed and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
built in
POWER CABLES
connection box with 1 m cable
H05RN-F 2x0.75 Ø6.3 mm
MOUNTING
surface mounted (ground)
ACCESSORIES
see p. 481
NOTES
non-standard heights available
on request
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 845
7W 230Vac
CL2210 A F
CL2210 A H
CL2210 A T
Grey
Anthracite
Cor-ten
15W 230Vac
CL2211 A F
CL2211 A H
CL2211 A T
Grey
Anthracite
Cor-ten
F - 2700K
5 - 3000K
9 - 4000K
asymmetrical
368 lm (3000K, 7W)
1314 lm (3000K, 15W)
200 lm (3000K, 7W)
568 lm (3000K, 15W)
2 power LEDs, 1/4 ANSI BIN (7W version)
2 high-intensity power LEDs
3-step MacAdam (15W version)
50000h L90 B10 (Ta 25°C)
head in aluminium, column in anticorodal aluminium
screen in serigraphed and transparent,
tempered extra-clear glass
built in
connection box with 1 m cable
H05RN-F 2x0.75 Ø6.3 mm
surface mounted (ground)
see p. 481
non-standard heights available
on request
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 845
kg 1.60
kg 2.00 h 250 mm
kg 2.70 h 600 mm
kg 3.10 h 800 mm
kg 1.60
kg 2.00 h 250 mm
kg 2.70 h 600 mm
kg 3.10 h 800 mm
