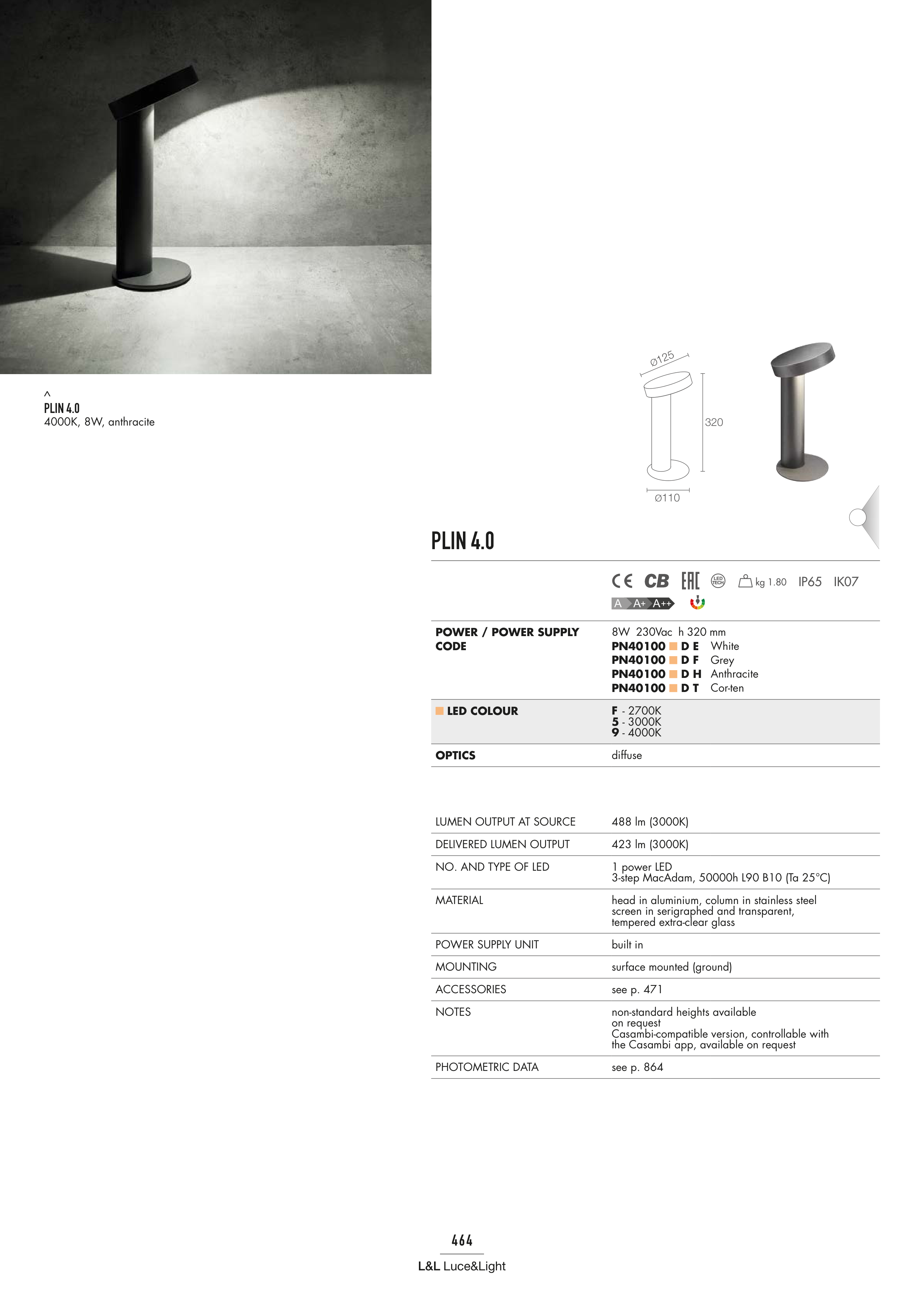

L&L Luce&Light
464
Ø125
Ø110
320
IK07
IP65
PLIN 4.0
POWER / POWER SUPPLY
CODE
8W 230Vac h 320 mm
PN40100 D E
PN40100 D F
PN40100 D H
PN40100 D T
White
Grey
Anthracite
Cor-ten
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
diffuse
LUMEN OUTPUT AT SOURCE
488 lm (3000K)
DELIVERED LUMEN OUTPUT
423 lm (3000K)
NO. AND TYPE OF LED
1 power LED
3-step MacAdam, 50000h L90 B10 (Ta 25°C)
MATERIAL
head in aluminium, column in stainless steel
screen in serigraphed and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
built in
MOUNTING
surface mounted (ground)
ACCESSORIES
see p. 471
NOTES
non-standard heights available
on request
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 864
kg 1.80
PLIN 4.0
4000K, 8W, anthracite
