L&L Luce&Light
462
120
34 124
260
103
120
34 124
560
103
120
103
34 124
760
IK08
IP65

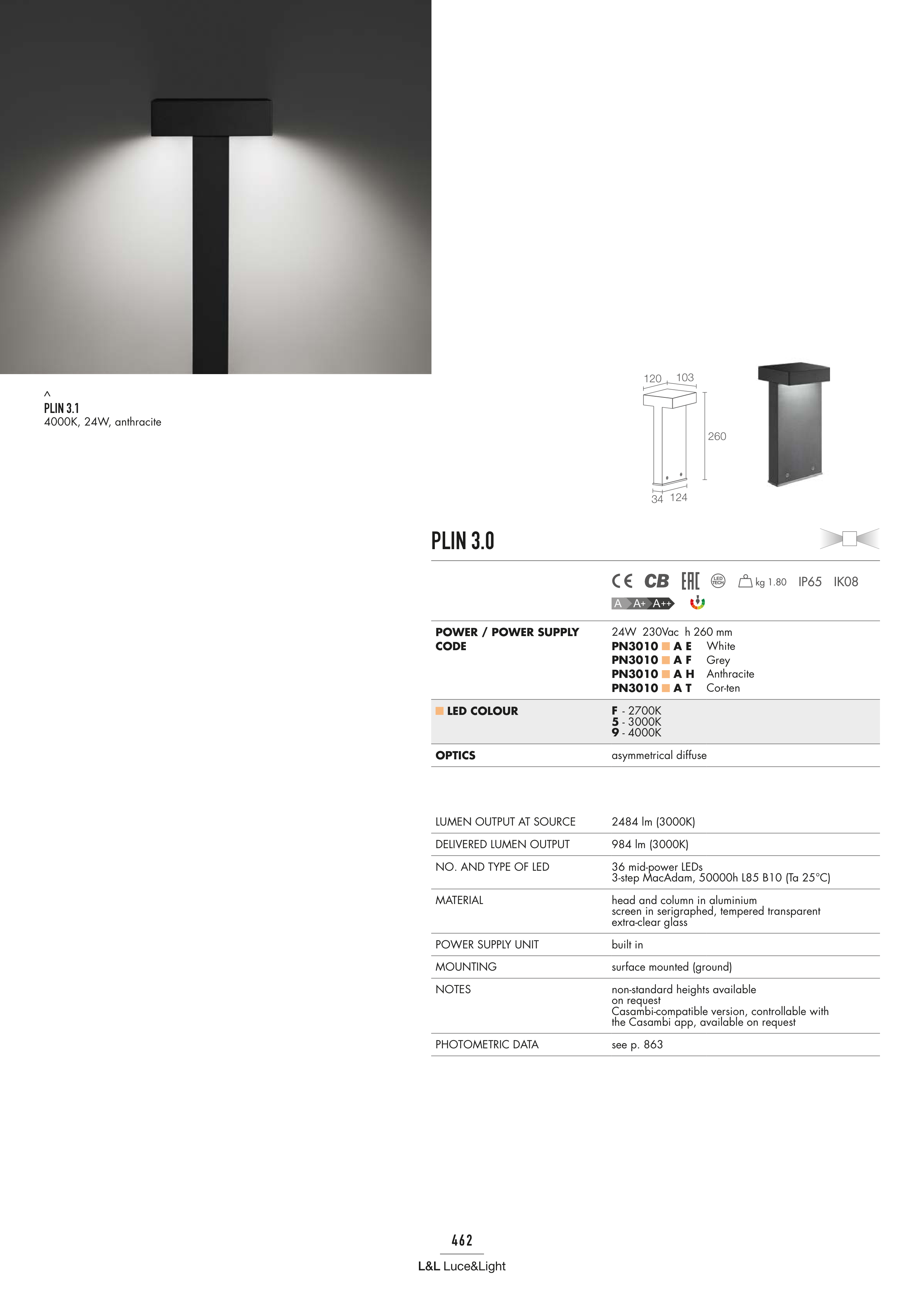

PLIN 3.0
POWER / POWER SUPPLY
CODE
24W 230Vac h 260 mm
PN3010 A E
PN3010 A F
PN3010 A H
PN3010 A T
White
Grey
Anthracite
Cor-ten
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
asymmetrical diffuse
LUMEN OUTPUT AT SOURCE
2484 lm (3000K)
DELIVERED LUMEN OUTPUT
984 lm (3000K)
NO. AND TYPE OF LED
36 mid-power LEDs
3-step MacAdam, 50000h L85 B10 (Ta 25°C)
MATERIAL
head and column in aluminium
screen in serigraphed, tempered transparent
extra-clear glass
POWER SUPPLY UNIT
built in
MOUNTING
surface mounted (ground)
NOTES
non-standard heights available
on request
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 863
kg 1.80
PLIN 3.1
4000K, 24W, anthracite
