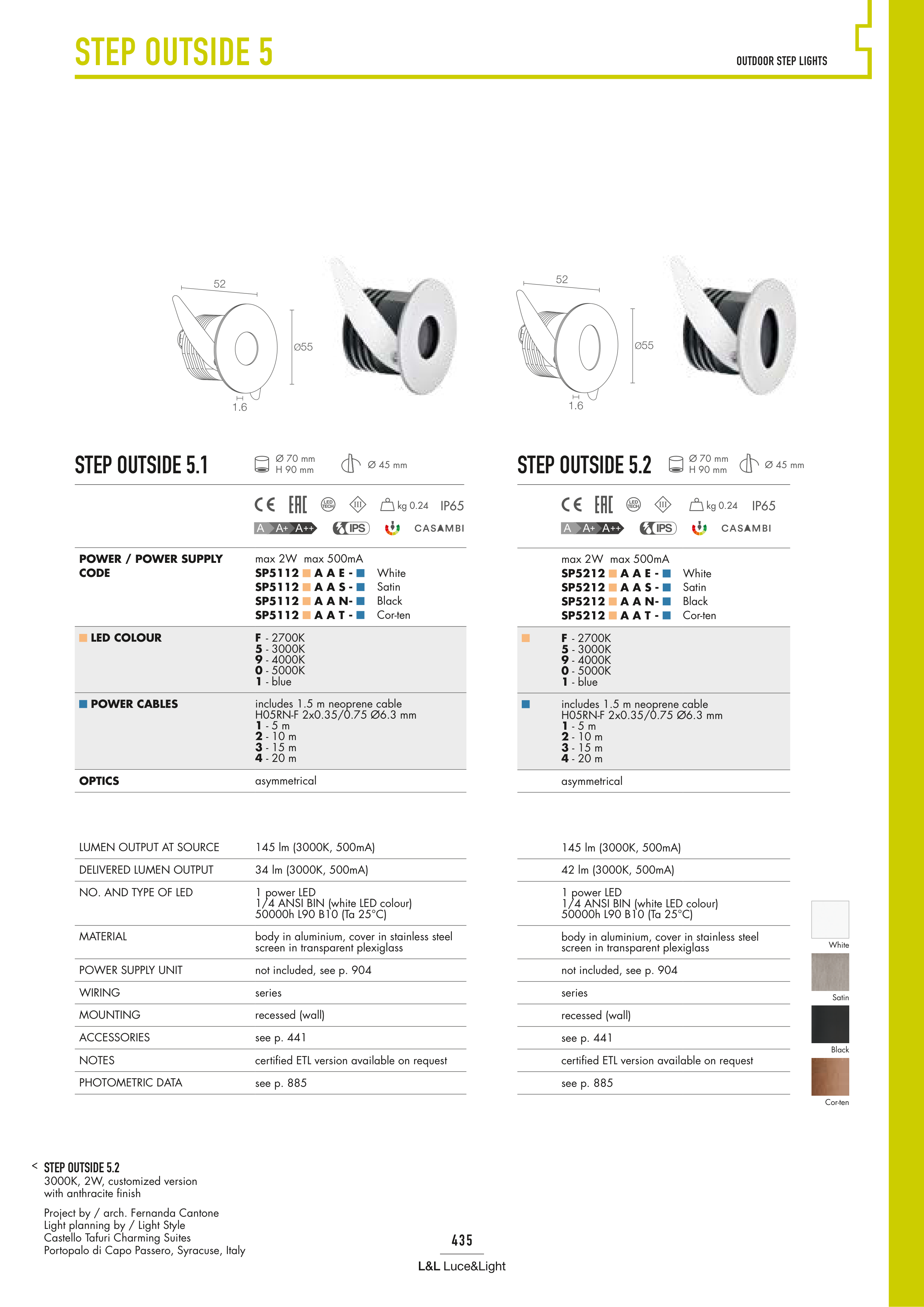

STEP OUTSIDE 5
STEP OUTSIDE 5.1
STEP OUTSIDE 5.2
Ø 45 mm
Ø 45 mm
Ø 70 mm
H 90 mm
Ø 70 mm
H 90 mm
IP65
IP65
L&L Luce&Light
435
OUTDOOR STEP LIGHTS
POWER / POWER SUPPLY
CODE
max 2W max 500mA
SP5112 A A E -
SP5112 A A S -
SP5112 A A N -
SP5112 A A T -
White
Satin
Black
Cor-ten
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
POWER CABLES
includes 1.5 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
OPTICS
asymmetrical
LUMEN OUTPUT AT SOURCE
145 lm (3000K, 500mA)
DELIVERED LUMEN OUTPUT
34 lm (3000K, 500mA)
NO. AND TYPE OF LED
1 power LED
1/4 ANSI BIN (white LED colour)
50000h L90 B10 (Ta 25°C)
MATERIAL
body in aluminium, cover in stainless steel
screen in transparent plexiglass
POWER SUPPLY UNIT
not included, see p. 904
WIRING
series
MOUNTING
recessed (wall)
ACCESSORIES
see p. 441
NOTES
certified ETL version available on request
PHOTOMETRIC DATA
see p. 885
max 2W max 500mA
SP5212 A A E -
SP5212 A A S -
SP5212 A A N -
SP5212 A A T -
White
Satin
Black
Cor-ten
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
includes 1.5 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
asymmetrical
145 lm (3000K, 500mA)
42 lm (3000K, 500mA)
1 power LED
1/4 ANSI BIN (white LED colour)
50000h L90 B10 (Ta 25°C)
body in aluminium, cover in stainless steel
screen in transparent plexiglass
not included, see p. 904
series
recessed (wall)
see p. 441
certified ETL version available on request
see p. 885
STEP OUTSIDE 5.2
3000K, 2W, customized version
with anthracite finish
Project by / arch. Fernanda Cantone
Light planning by / Light Style
Castello Tafuri Charming Suites
Portopalo di Capo Passero, Syracuse, Italy
kg 0.24
kg 0.24
Satin
White
Black
Cor-ten
Ø55
52
1.6
Ø55
52
1.6
