L&L Luce&Light
427
157
143
43
157
46
143
IK06
IP65

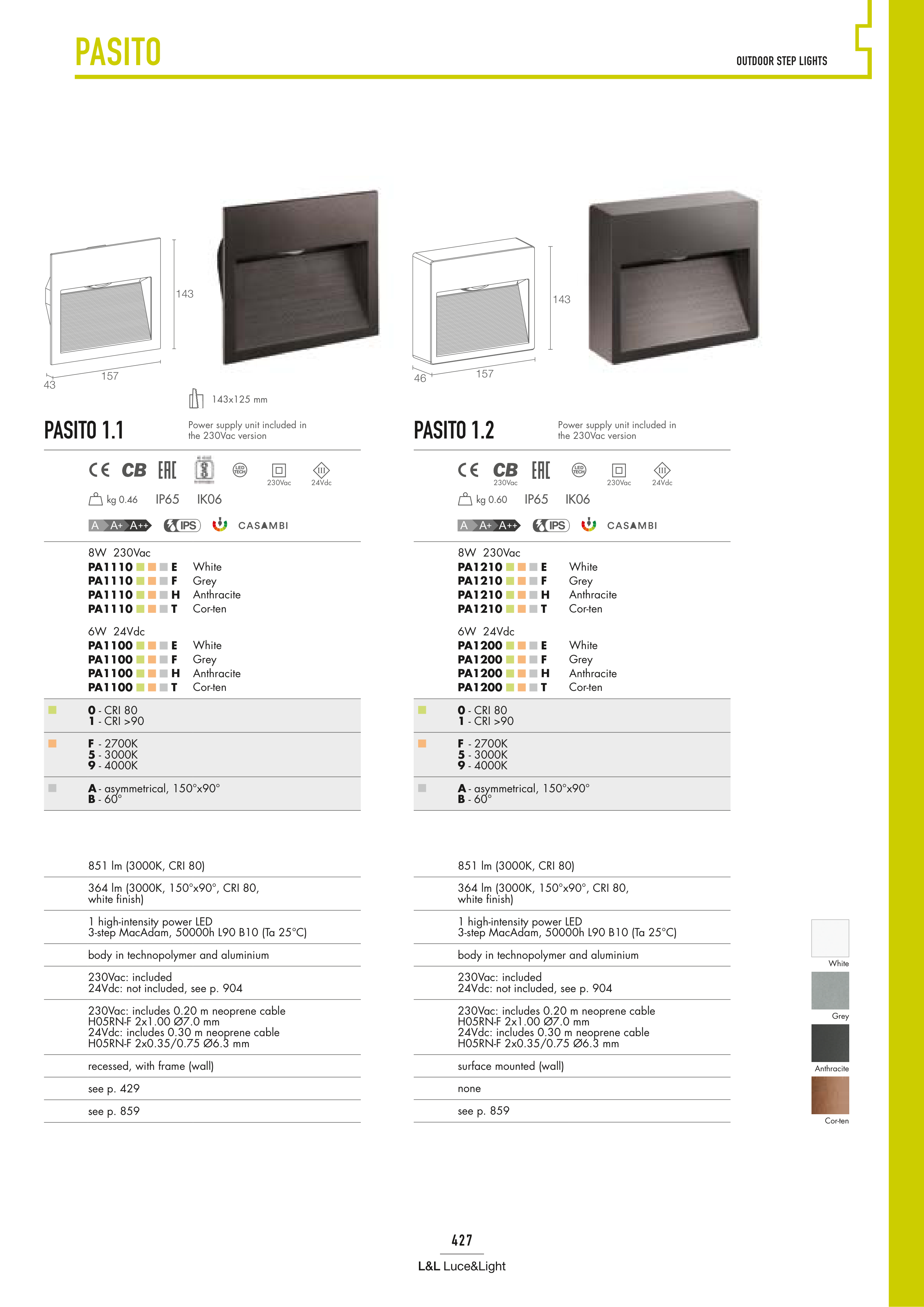

PASITO 1.1
143x125 mm
PASITO 1.2
PASITO
230Vac
230Vac
24Vdc
24Vdc
IK06
IP65
230Vac
OUTDOOR STEP LIGHTS
8W 230Vac
PA1210 E
PA1210 F
PA1210 H
PA1210 T
White
Grey
Anthracite
Cor-ten
6W 24Vdc
PA1200 E
PA1200 F
PA1200 H
PA1200 T
White
Grey
Anthracite
Cor-ten
0 - CRI 80
1 - CRI >90
F - 2700K
5 - 3000K
9 - 4000K
A - asymmetrical, 150°x90°
B - 60°
851 lm (3000K, CRI 80)
364 lm (3000K, 150°x90°, CRI 80,
white finish)
1 high-intensity power LED
3-step MacAdam, 50000h L90 B10 (Ta 25°C)
body in technopolymer and aluminium
230Vac: included
24Vdc: not included, see p. 904
230Vac: includes 0.20 m neoprene cable
H05RN-F 2x1.00 Ø7.0 mm
24Vdc: includes 0.30 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
surface mounted (wall)
none
see p. 859
8W 230Vac
PA1110 E
PA1110 F
PA1110 H
PA1110 T
White
Grey
Anthracite
Cor-ten
6W 24Vdc
PA1100 E
PA1100 F
PA1100 H
PA1100 T
White
Grey
Anthracite
Cor-ten
0 - CRI 80
1 - CRI >90
F - 2700K
5 - 3000K
9 - 4000K
A - asymmetrical, 150°x90°
B - 60°
851 lm (3000K, CRI 80)
364 lm (3000K, 150°x90°, CRI 80,
white finish)
1 high-intensity power LED
3-step MacAdam, 50000h L90 B10 (Ta 25°C)
body in technopolymer and aluminium
230Vac: included
24Vdc: not included, see p. 904
230Vac: includes 0.20 m neoprene cable
H05RN-F 2x1.00 Ø7.0 mm
24Vdc: includes 0.30 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
recessed, with frame (wall)
see p. 429
see p. 859
kg 0.46
kg 0.60
White
Anthracite
Grey
Cor-ten
Power supply unit included in
the 230Vac version
Power supply unit included in
the 230Vac version
