L&L Luce&Light
424
230Vac
24Vdc
IK05
IP65

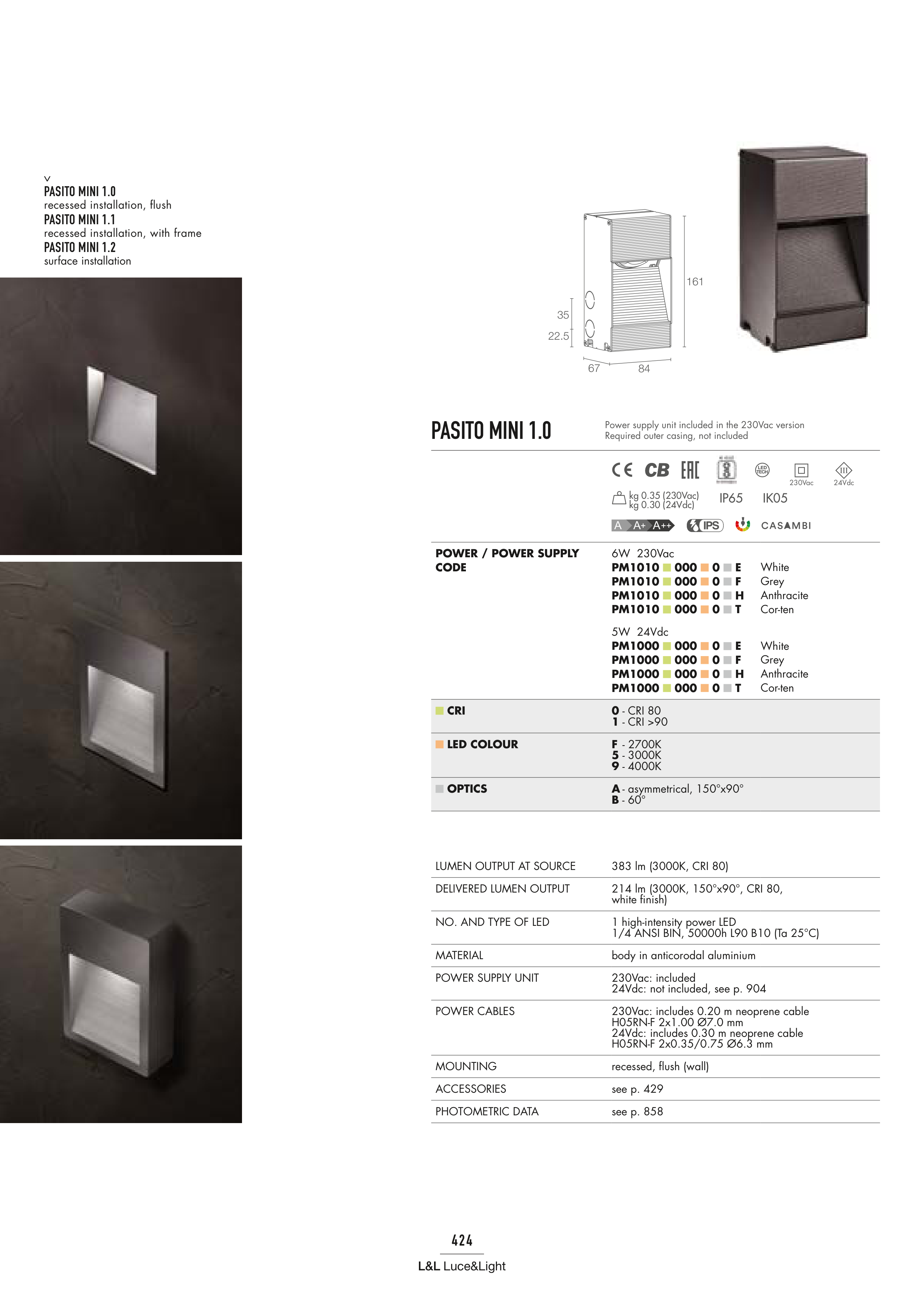

PASITO MINI 1.0
POWER / POWER SUPPLY
CODE
6W 230Vac
PM1010 000 0 E
PM1010 000 0 F
PM1010 000 0 H
PM1010 000 0 T
White
Grey
Anthracite
Cor-ten
5W 24Vdc
PM1000 000 0 E
PM1000 000 0 F
PM1000 000 0 H
PM1000 000 0 T
White
Grey
Anthracite
Cor-ten
CRI
0 - CRI 80
1 - CRI >90
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
A - asymmetrical, 150°x90°
B - 60°
LUMEN OUTPUT AT SOURCE
383 lm (3000K, CRI 80)
DELIVERED LUMEN OUTPUT
214 lm (3000K, 150°x90°, CRI 80,
white finish)
NO. AND TYPE OF LED
1 high-intensity power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in anticorodal aluminium
POWER SUPPLY UNIT
230Vac: included
24Vdc: not included, see p. 904
POWER CABLES
230Vac: includes 0.20 m neoprene cable
H05RN-F 2x1.00 Ø7.0 mm
24Vdc: includes 0.30 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
MOUNTING
recessed, flush (wall)
ACCESSORIES
see p. 429
PHOTOMETRIC DATA
see p. 858
kg 0.35 (230Vac)
kg 0.30 (24Vdc)
PASITO MINI 1.0
recessed installation, flush
PASITO MINI 1.1
recessed installation, with frame
PASITO MINI 1.2
surface installation
Power supply unit included in the 230Vac version
Required outer casing, not included
84
67
161
22.5
35
