417
Ø69
Ø78
29
12
41
Ø124
Ø130
36
11
47

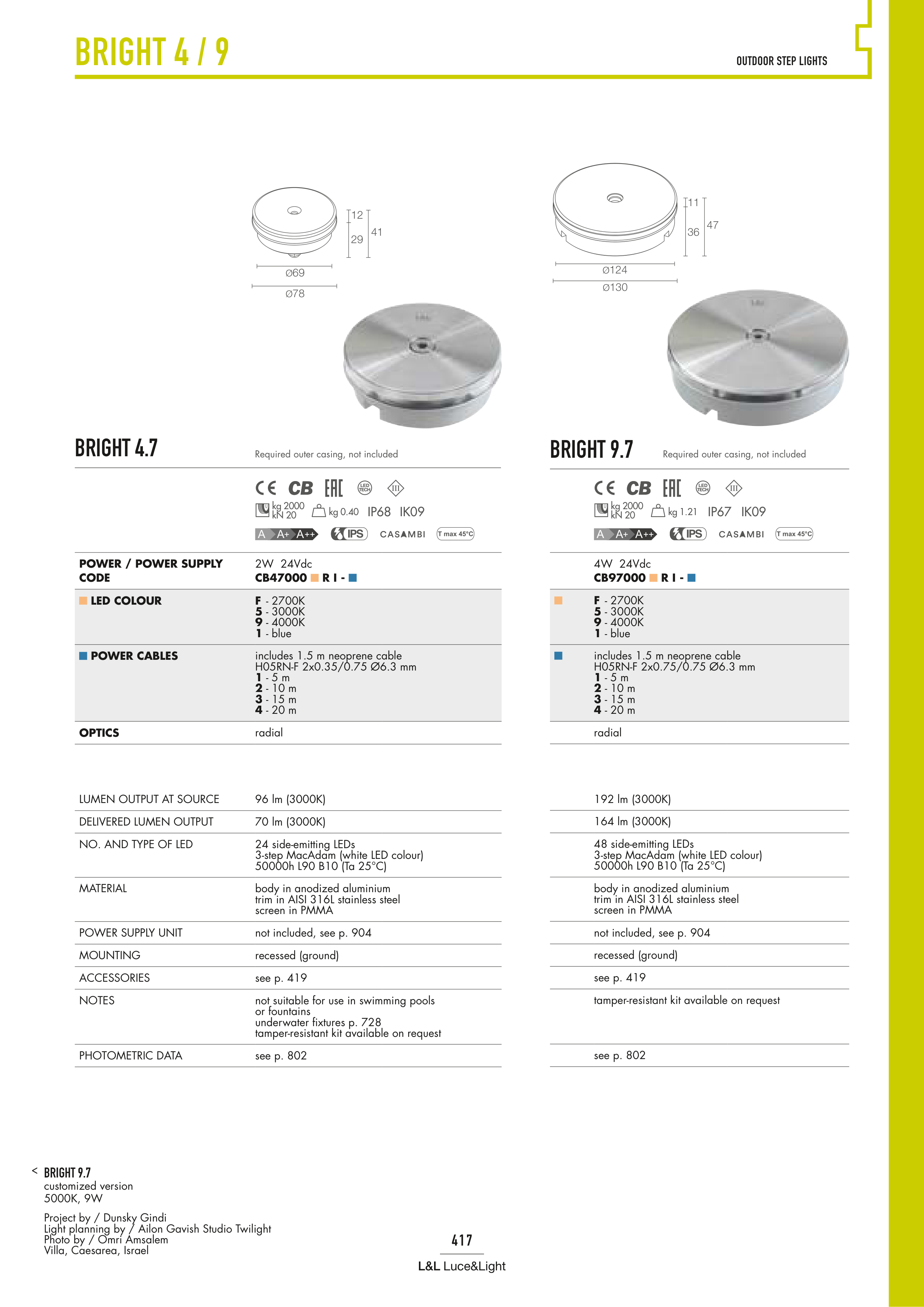

BRIGHT 4 / 9
BRIGHT 4.7
BRIGHT 9.7
IK09
IK09
IP67
IP68
kg 2000
kN 20
kg 2000
kN 20
OUTDOOR STEP LIGHTS
POWER / POWER SUPPLY
CODE
2W 24Vdc
CB47000 R I -
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
1 - blue
POWER CABLES
includes 1.5 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
OPTICS
radial
LUMEN OUTPUT AT SOURCE
96 lm (3000K)
DELIVERED LUMEN OUTPUT
70 lm (3000K)
NO. AND TYPE OF LED
24 side-emitting LEDs
3-step MacAdam (white LED colour)
50000h L90 B10 (Ta 25°C)
MATERIAL
body in anodized aluminium
trim in AISI 316L stainless steel
screen in PMMA
POWER SUPPLY UNIT
not included, see p. 904
MOUNTING
recessed (ground)
ACCESSORIES
see p. 419
NOTES
not suitable for use in swimming pools
or fountains
underwater fixtures p. 728
tamper-resistant kit available on request
PHOTOMETRIC DATA
see p. 802
Required outer casing, not included
4W 24Vdc
CB97000 R I -
F - 2700K
5 - 3000K
9 - 4000K
1 - blue
includes 1.5 m neoprene cable
H05RN-F 2x0.75/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
radial
192 lm (3000K)
164 lm (3000K)
48 side-emitting LEDs
3-step MacAdam (white LED colour)
50000h L90 B10 (Ta 25°C)
body in anodized aluminium
trim in AISI 316L stainless steel
screen in PMMA
not included, see p. 904
recessed (ground)
see p. 419
tamper-resistant kit available on request
see p. 802
Required outer casing, not included
BRIGHT 9.7
customized version
5000K, 9W
Project by / Dunsky Gindi
Light planning by / Ailon Gavish Studio Twilight
Photo by / Omri Amsalem
Villa, Caesarea, Israel
kg 0.40
kg 1.21
