L&L Luce&Light
409

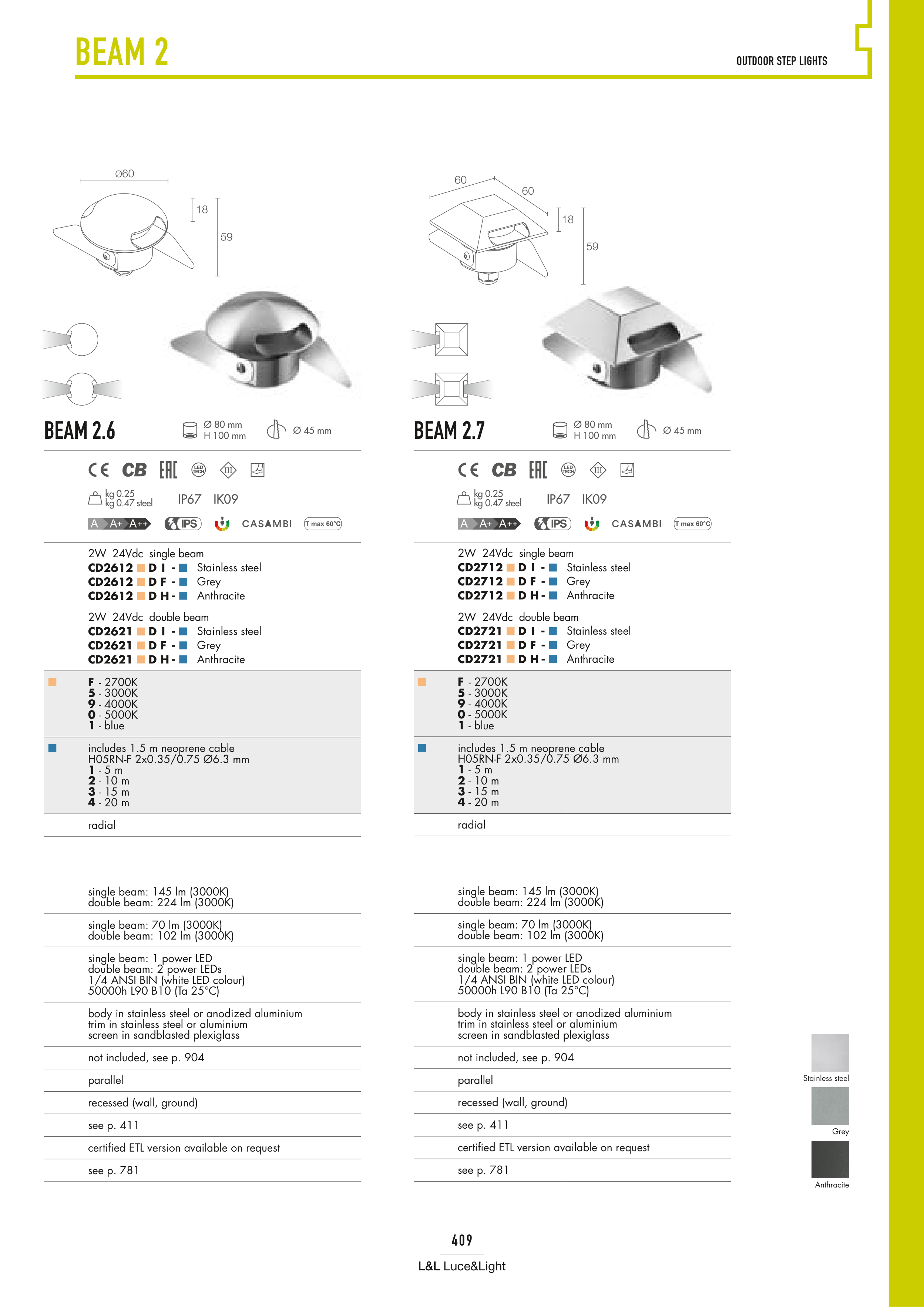

BEAM 2
BEAM 2.6
BEAM 2.7
IK09
IK09
IP67
IP67
Ø 45 mm
Ø 45 mm
Ø 80 mm
H 100 mm
Ø 80 mm
H 100 mm
59
18
Ø60
59
18
60
60
OUTDOOR STEP LIGHTS
2W 24Vdc single beam
CD2612 D I -
CD2612 D F -
CD2612 D H -
Stainless steel
Grey
Anthracite
2W 24Vdc double beam
CD2621 D I -
CD2621 D F -
CD2621 D H -
Stainless steel
Grey
Anthracite
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
includes 1.5 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
radial
single beam: 145 lm (3000K)
double beam: 224 lm (3000K)
single beam: 70 lm (3000K)
double beam: 102 lm (3000K)
single beam: 1 power LED
double beam: 2 power LEDs
1/4 ANSI BIN (white LED colour)
50000h L90 B10 (Ta 25°C)
body in stainless steel or anodized aluminium
trim in stainless steel or aluminium
screen in sandblasted plexiglass
not included, see p. 904
parallel
recessed (wall, ground)
see p. 411
certified ETL version available on request
see p. 781
2W 24Vdc single beam
CD2712 D I -
CD2712 D F -
CD2712 D H -
Stainless steel
Grey
Anthracite
2W 24Vdc double beam
CD2721 D I -
CD2721 D F -
CD2721 D H -
Stainless steel
Grey
Anthracite
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
includes 1.5 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
radial
single beam: 145 lm (3000K)
double beam: 224 lm (3000K)
single beam: 70 lm (3000K)
double beam: 102 lm (3000K)
single beam: 1 power LED
double beam: 2 power LEDs
1/4 ANSI BIN (white LED colour)
50000h L90 B10 (Ta 25°C)
body in stainless steel or anodized aluminium
trim in stainless steel or aluminium
screen in sandblasted plexiglass
not included, see p. 904
parallel
recessed (wall, ground)
see p. 411
certified ETL version available on request
see p. 781
Anthracite
Stainless steel
Grey
kg 0.25
kg 0.47 steel
kg 0.25
kg 0.47 steel
