L&L Luce&Light
398
26
48
Ø100
48
26
IK08
IP67

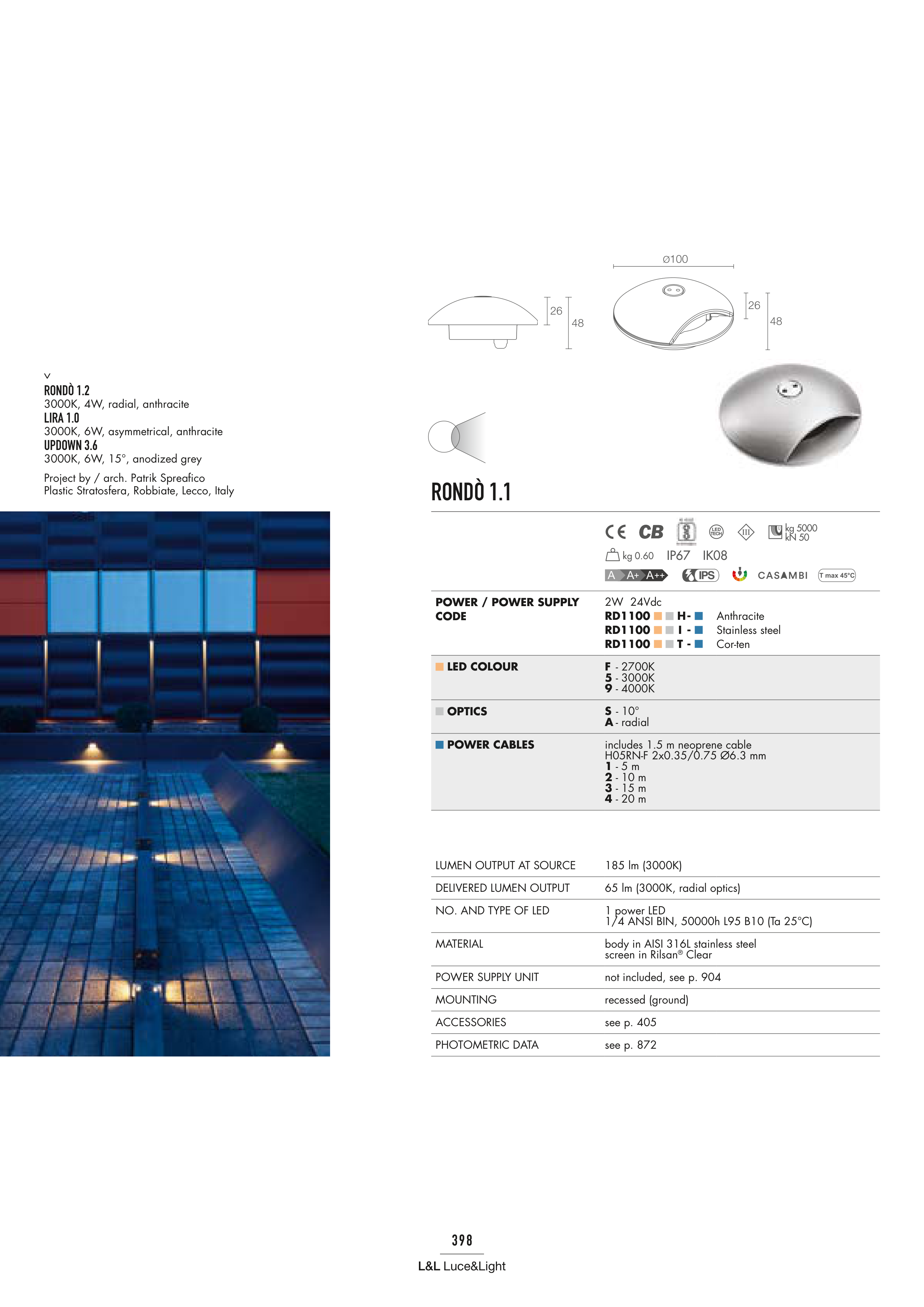

RONDÒ 1.1
kg 5000
kN 50
POWER / POWER SUPPLY
CODE
2W 24Vdc
RD1100 H -
RD1100 I -
RD1100 T -
Anthracite
Stainless steel
Cor-ten
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 10°
A - radial
POWER CABLES
includes 1.5 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
185 lm (3000K)
DELIVERED LUMEN OUTPUT
65 lm (3000K, radial optics)
NO. AND TYPE OF LED
1 power LED
1/4 ANSI BIN, 50000h L95 B10 (Ta 25°C)
MATERIAL
body in AISI 316L stainless steel
screen in Rilsan® Clear
POWER SUPPLY UNIT
not included, see p. 904
MOUNTING
recessed (ground)
ACCESSORIES
see p. 405
PHOTOMETRIC DATA
see p. 872
RONDÒ 1.2
3000K, 4W, radial, anthracite
LIRA 1.0
3000K, 6W, asymmetrical, anthracite
UPDOWN 3.6
3000K, 6W, 15°, anodized grey
Project by / arch. Patrik Spreafico
Plastic Stratosfera, Robbiate, Lecco, Italy
kg 0.60
