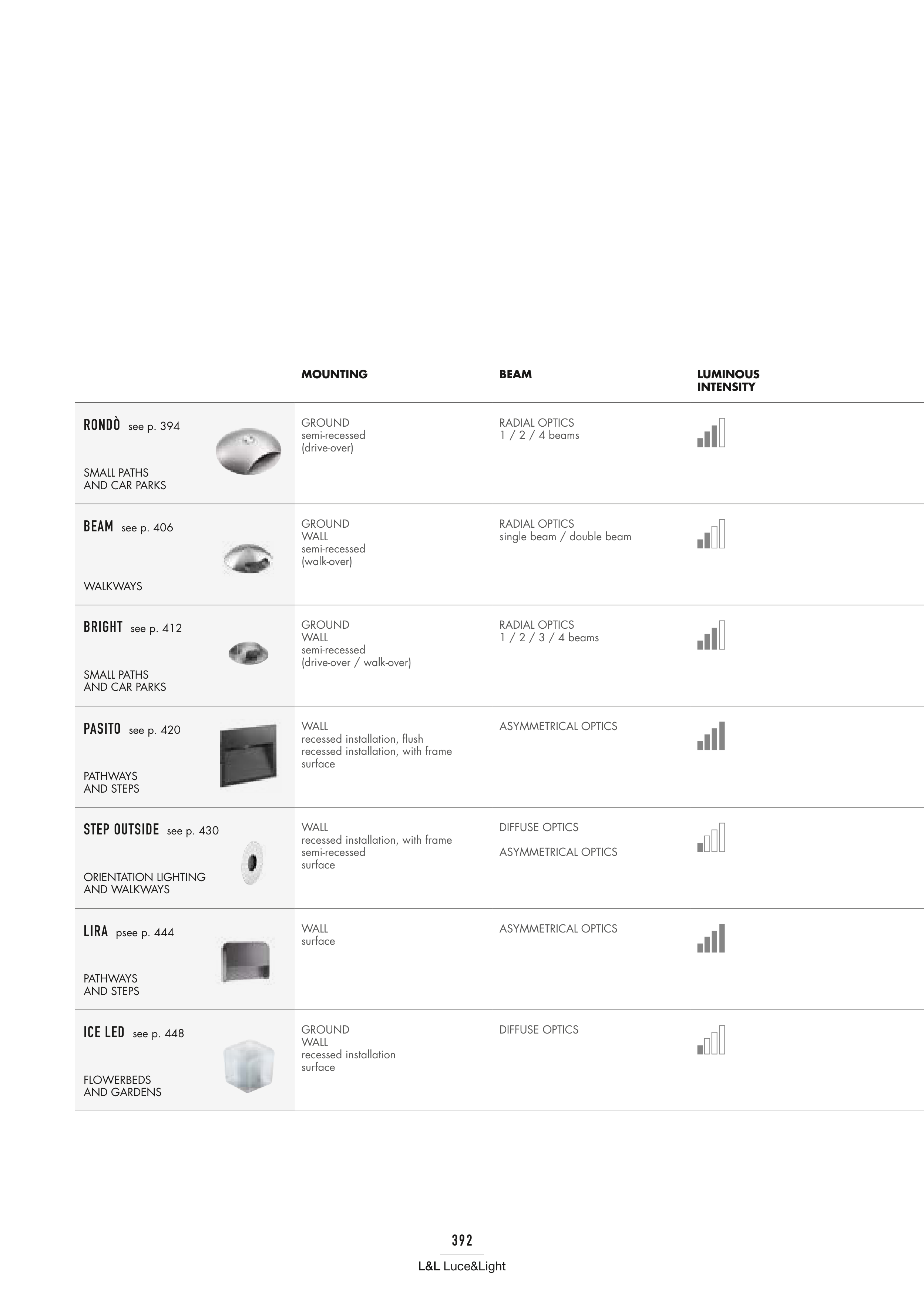

MOUNTING
BEAM
LUMINOUS
INTENSITY
LIGHT
COLOUR
POWER SUPPLY
IP
APPLIANCE
CLASS
RONDÒ see p. 394
SMALL PATHS
AND CAR PARKS
GROUND
semi-recessed
(drive-over)
RADIAL OPTICS
1 / 2 / 4 beams
2700K
4000K
3000K
CONSTANT VOLTAGE (power supply unit not included)
24Vdc
MAINS VOLTAGE (built-in power supply unit)
230Vac
IP67
BEAM see p. 406
WALKWAYS
GROUND
WALL
semi-recessed
(walk-over)
RADIAL OPTICS
single beam / double beam
2700K
4000K
3000K
blue
5000K
CONSTANT CURRENT (power supply unit not included)
max 350mA (double beam)
max 500mA (single beam)
CONSTANT VOLTAGE (power supply unit not included)
24Vdc
IP67
BRIGHT see p. 412
SMALL PATHS
AND CAR PARKS
GROUND
WALL
semi-recessed
(drive-over / walk-over)
RADIAL OPTICS
1 / 2 / 3 / 4 beams
blue
2700K
4000K
3000K
CONSTANT CURRENT (power supply unit not included)
max 700mA
CONSTANT VOLTAGE (power supply unit not included)
24Vdc
IP65
IP67
IP68
PASITO see p. 420
PATHWAYS
AND STEPS
WALL
recessed installation, flush
recessed installation, with frame
surface
ASYMMETRICAL OPTICS
2700K
4000K
3000K
CONSTANT VOLTAGE (power supply unit not included)
24Vdc
MAINS VOLTAGE (built-in power supply unit)
230Vac
IP65
STEP OUTSIDE see p. 430
ORIENTATION LIGHTING
AND WALKWAYS
WALL
recessed installation, with frame
semi-recessed
surface
DIFFUSE OPTICS
ASYMMETRICAL OPTICS
2700K
4000K
3000K
blue
5000K
CONSTANT CURRENT (power supply unit not included)
max 500mA
CONSTANT VOLTAGE (power supply unit not included)
24Vdc
IP54
IP65
LIRA psee p. 444
PATHWAYS
AND STEPS
WALL
surface
ASYMMETRICAL OPTICS
2700K
4000K
3000K
MAINS VOLTAGE (built-in power supply unit)
230Vac
IP65
ICE LED see p. 448
FLOWERBEDS
AND GARDENS
GROUND
WALL
recessed installation
surface
DIFFUSE OPTICS
2700K
4000K
3000K
blue
5000K
CONSTANT CURRENT (power supply unit not included)
max 350mA
IP67
