L&L Luce&Light
382
80
123
29

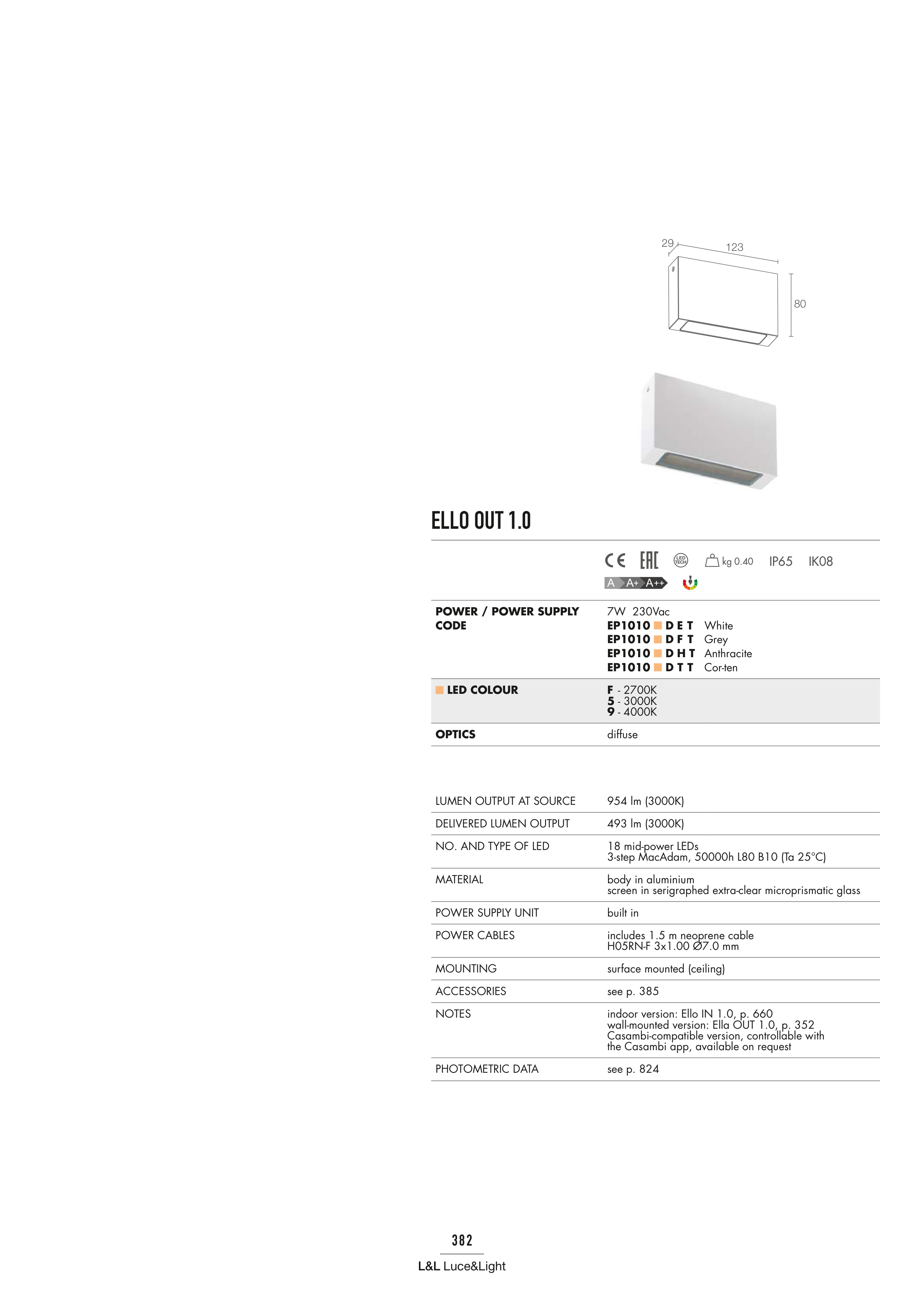

ELLO OUT 1.0
IK08
IP65
POWER / POWER SUPPLY
CODE
7W 230Vac
EP1010 D E T
EP1010 D F T
EP1010 D H T
EP1010 D T T
White
Grey
Anthracite
Cor-ten
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
diffuse
LUMEN OUTPUT AT SOURCE
954 lm (3000K)
DELIVERED LUMEN OUTPUT
493 lm (3000K)
NO. AND TYPE OF LED
18 mid-power LEDs
3-step MacAdam, 50000h L80 B10 (Ta 25°C)
MATERIAL
body in aluminium
screen in serigraphed extra-clear microprismatic glass
POWER SUPPLY UNIT
built in
POWER CABLES
includes 1.5 m neoprene cable
H05RN-F 3x1.00 Ø7.0 mm
MOUNTING
surface mounted (ceiling)
ACCESSORIES
see p. 385
NOTES
indoor version: Ello IN 1.0, p. 660
wall-mounted version: Ella OUT 1.0, p. 352
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 824
kg 0.40
