L&L Luce&Light
376
IK06
IP65
82
103
100
53

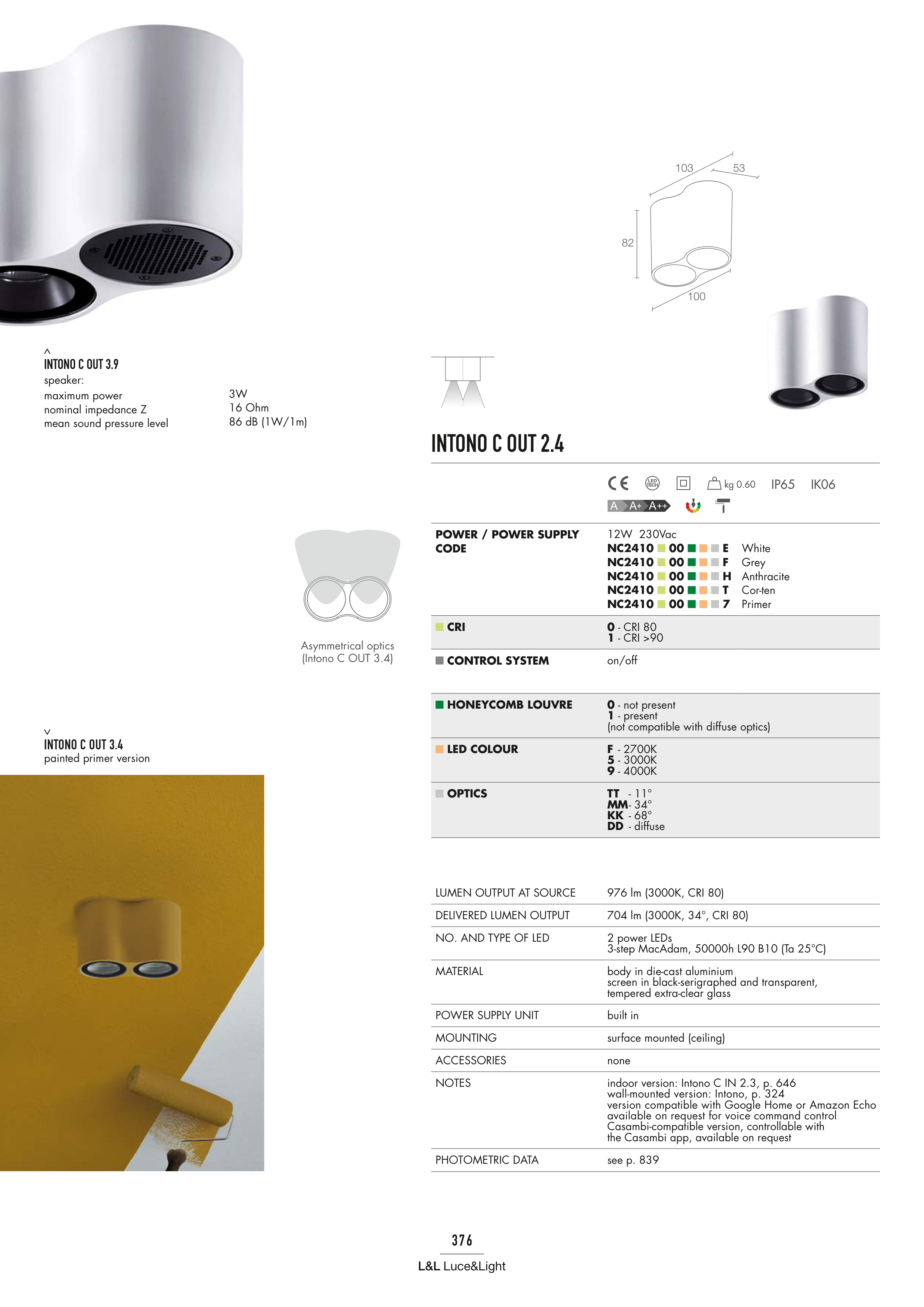

INTONO C OUT 2.4
kg 0.60
POWER / POWER SUPPLY
CODE
12W 230Vac
NC2410 00 E
NC2410 00 F
NC2410 00 H
NC2410 00 T
NC2410 00 7
White
Grey
Anthracite
Cor-ten
Primer
CRI
0 - CRI 80
1 - CRI >90
CONTROL SYSTEM
on/off
HONEYCOMB LOUVRE
0 - not present
1 - present
(not compatible with diffuse optics)
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
TT - 11°
MM - 34°
KK - 68°
DD - diffuse
LUMEN OUTPUT AT SOURCE
976 lm (3000K, CRI 80)
DELIVERED LUMEN OUTPUT
704 lm (3000K, 34°, CRI 80)
NO. AND TYPE OF LED
2 power LEDs
3-step MacAdam, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in die-cast aluminium
screen in black-serigraphed and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
built in
MOUNTING
surface mounted (ceiling)
ACCESSORIES
none
NOTES
indoor version: Intono C IN 2.3, p. 646
wall-mounted version: Intono, p. 324
version compatible with Google Home or Amazon Echo
available on request for voice command control
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 839
Asymmetrical optics
(Intono C OUT 3.4)
INTONO C OUT 3.4
painted primer version
INTONO C OUT 3.9
speaker:
maximum power
nominal impedance Z
mean sound pressure level
3W
16 Ohm
86 dB (1W/1m)
