0 mm
55
200
L&L Luce&Light
369

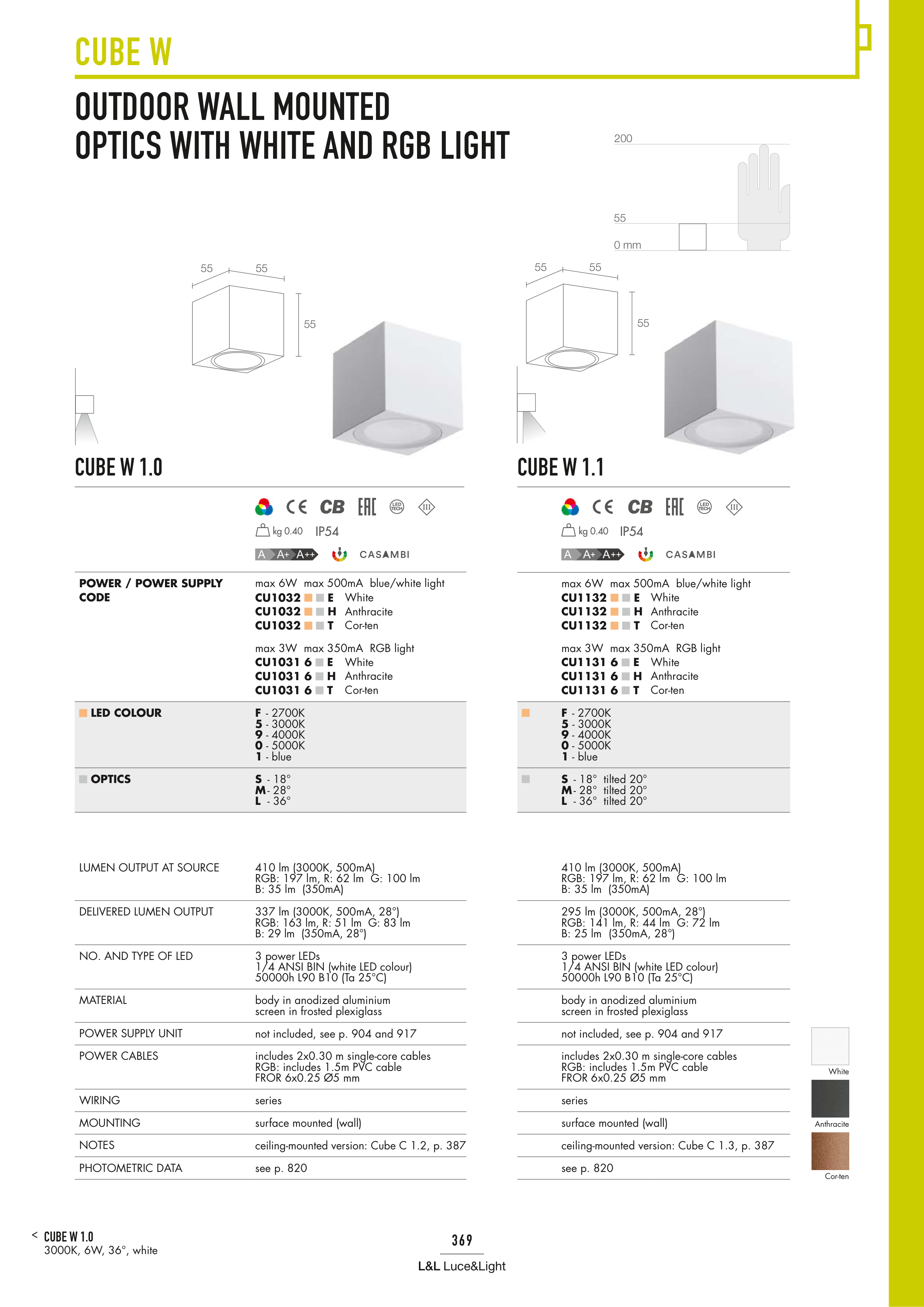

CUBE W
IP54
IP54
55
55
55
55
55
55
CUBE W 1.0
3000K, 6W, 36°, white
POWER / POWER SUPPLY
CODE
max 6W max 500mA blue/white light
CU1032 E
CU1032 H
CU1032 T
White
Anthracite
Cor-ten
max 3W max 350mA RGB light
CU1031 6 E
CU1031 6 H
CU1031 6 T
White
Anthracite
Cor-ten
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
OPTICS
S - 18°
M - 28°
L - 36°
LUMEN OUTPUT AT SOURCE
410 lm (3000K, 500mA)
RGB: 197 lm, R: 62 lm G: 100 lm
B: 35 lm (350mA)
DELIVERED LUMEN OUTPUT
337 lm (3000K, 500mA, 28°)
RGB: 163 lm, R: 51 lm G: 83 lm
B: 29 lm (350mA, 28°)
NO. AND TYPE OF LED
3 power LEDs
1/4 ANSI BIN (white LED colour)
50000h L90 B10 (Ta 25°C)
MATERIAL
body in anodized aluminium
screen in frosted plexiglass
POWER SUPPLY UNIT
not included, see p. 904 and 917
POWER CABLES
includes 2x0.30 m single-core cables
RGB: includes 1.5m PVC cable
FROR 6x0.25 Ø5 mm
WIRING
series
MOUNTING
surface mounted (wall)
NOTES
ceiling-mounted version: Cube C 1.2, p. 387
PHOTOMETRIC DATA
see p. 820
max 6W max 500mA blue/white light
CU1132 E
CU1132 H
CU1132 T
White
Anthracite
Cor-ten
max 3W max 350mA RGB light
CU1131 6 E
CU1131 6 H
CU1131 6 T
White
Anthracite
Cor-ten
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
S - 18° tilted 20°
M - 28° tilted 20°
L - 36° tilted 20°
410 lm (3000K, 500mA)
RGB: 197 lm, R: 62 lm G: 100 lm
B: 35 lm (350mA)
295 lm (3000K, 500mA, 28°)
RGB: 141 lm, R: 44 lm G: 72 lm
B: 25 lm (350mA, 28°)
3 power LEDs
1/4 ANSI BIN (white LED colour)
50000h L90 B10 (Ta 25°C)
body in anodized aluminium
screen in frosted plexiglass
not included, see p. 904 and 917
includes 2x0.30 m single-core cables
RGB: includes 1.5m PVC cable
FROR 6x0.25 Ø5 mm
series
surface mounted (wall)
ceiling-mounted version: Cube C 1.3, p. 387
see p. 820
OUTDOOR WALL MOUNTED
OPTICS WITH WHITE AND RGB LIGHT
kg 0.40
kg 0.40
CUBE W 1.0
CUBE W 1.1
White
Anthracite
Cor-ten
