L&L Luce&Light
344
0 mm
200
100
IK07
IK07
IP65
IP65

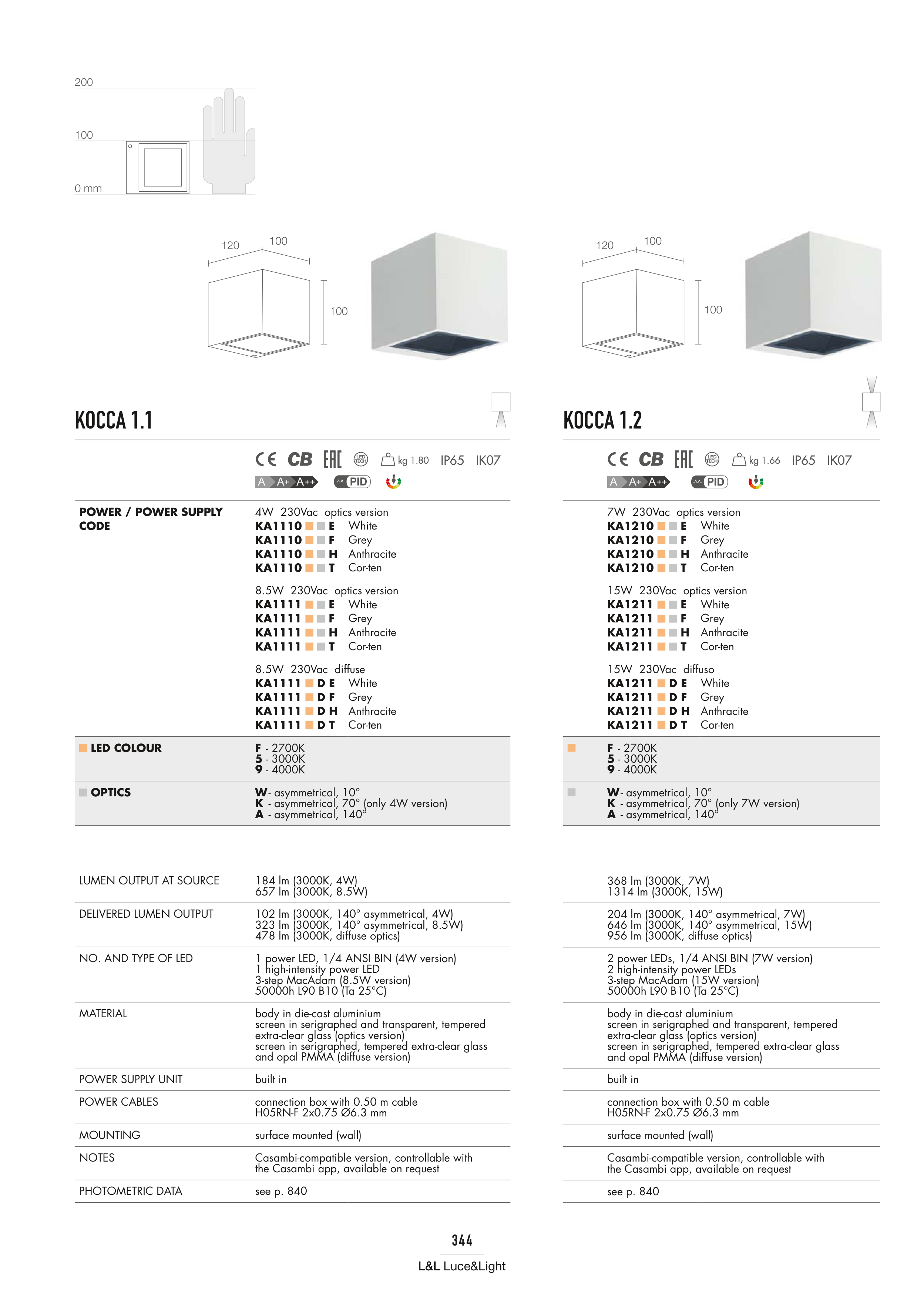

KOCCA 1.1
KOCCA 1.2
120
100
100
120
100
100
POWER / POWER SUPPLY
CODE
4W 230Vac optics version
KA1110 E
KA1110 F
KA1110 H
KA1110 T
White
Grey
Anthracite
Cor-ten
8.5W 230Vac optics version
KA1111 E
KA1111 F
KA1111 H
KA1111 T
White
Grey
Anthracite
Cor-ten
8.5W 230Vac diffuse
KA1111 D E
KA1111 D F
KA1111 D H
KA1111 D T
White
Grey
Anthracite
Cor-ten
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
W - asymmetrical, 10°
K - asymmetrical, 70° (only 4W version)
A - asymmetrical, 140°
LUMEN OUTPUT AT SOURCE
184 lm (3000K, 4W)
657 lm (3000K, 8.5W)
DELIVERED LUMEN OUTPUT
102 lm (3000K, 140° asymmetrical, 4W)
323 lm (3000K, 140° asymmetrical, 8.5W)
478 lm (3000K, diffuse optics)
NO. AND TYPE OF LED
1 power LED, 1/4 ANSI BIN (4W version)
1 high-intensity power LED
3-step MacAdam (8.5W version)
50000h L90 B10 (Ta 25°C)
MATERIAL
body in die-cast aluminium
screen in serigraphed and transparent, tempered
extra-clear glass (optics version)
screen in serigraphed, tempered extra-clear glass
and opal PMMA (diffuse version)
POWER SUPPLY UNIT
built in
POWER CABLES
connection box with 0.50 m cable
H05RN-F 2x0.75 Ø6.3 mm
MOUNTING
surface mounted (wall)
NOTES
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 840
7W 230Vac optics version
KA1210 E
KA1210 F
KA1210 H
KA1210 T
White
Grey
Anthracite
Cor-ten
15W 230Vac optics version
KA1211 E
KA1211 F
KA1211 H
KA1211 T
White
Grey
Anthracite
Cor-ten
15W 230Vac diffuso
KA1211 D E
KA1211 D F
KA1211 D H
KA1211 D T
White
Grey
Anthracite
Cor-ten
F - 2700K
5 - 3000K
9 - 4000K
W - asymmetrical, 10°
K - asymmetrical, 70° (only 7W version)
A - asymmetrical, 140°
368 lm (3000K, 7W)
1314 lm (3000K, 15W)
204 lm (3000K, 140° asymmetrical, 7W)
646 lm (3000K, 140° asymmetrical, 15W)
956 lm (3000K, diffuse optics)
2 power LEDs, 1/4 ANSI BIN (7W version)
2 high-intensity power LEDs
3-step MacAdam (15W version)
50000h L90 B10 (Ta 25°C)
body in die-cast aluminium
screen in serigraphed and transparent, tempered
extra-clear glass (optics version)
screen in serigraphed, tempered extra-clear glass
and opal PMMA (diffuse version)
built in
connection box with 0.50 m cable
H05RN-F 2x0.75 Ø6.3 mm
surface mounted (wall)
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 840
kg 1.80
kg 1.66
