L&L Luce&Light
338
170
100
100
170
100
100
0 mm
100
200
IK07
IK07
IP65
IP65

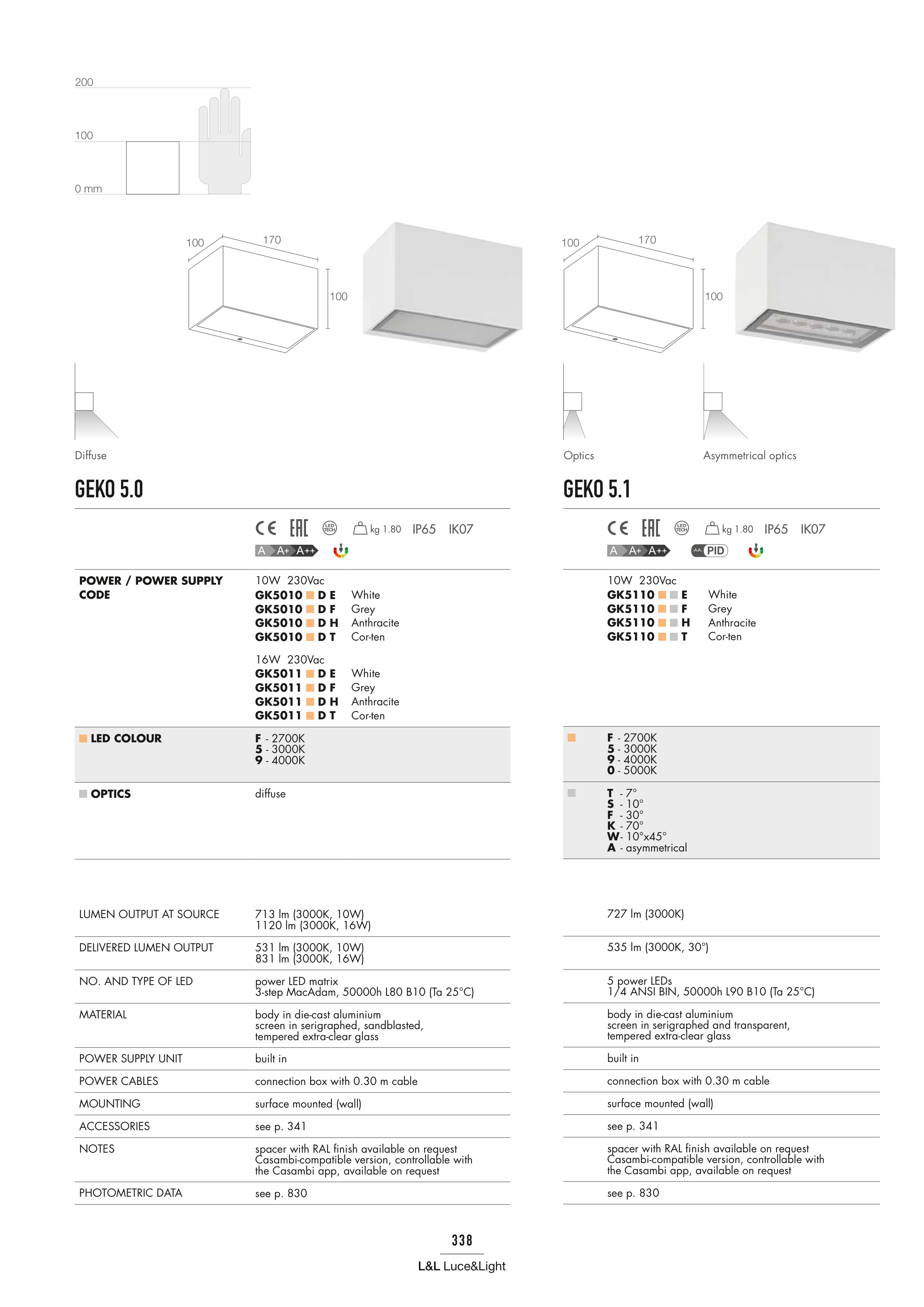

GEKO 5.0
GEKO 5.1
POWER / POWER SUPPLY
CODE
10W 230Vac
GK5010 D E
GK5010 D F
GK5010 D H
GK5010 D T
White
Grey
Anthracite
Cor-ten
16W 230Vac
GK5011 D E
GK5011 D F
GK5011 D H
GK5011 D T
White
Grey
Anthracite
Cor-ten
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
diffuse
LUMEN OUTPUT AT SOURCE
713 lm (3000K, 10W)
1120 lm (3000K, 16W)
DELIVERED LUMEN OUTPUT
531 lm (3000K, 10W)
831 lm (3000K, 16W)
NO. AND TYPE OF LED
power LED matrix
3-step MacAdam, 50000h L80 B10 (Ta 25°C)
MATERIAL
body in die-cast aluminium
screen in serigraphed, sandblasted,
tempered extra-clear glass
POWER SUPPLY UNIT
built in
POWER CABLES
connection box with 0.30 m cable
MOUNTING
surface mounted (wall)
ACCESSORIES
see p. 341
NOTES
spacer with RAL finish available on request
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 830
10W 230Vac
GK5110 E
GK5110 F
GK5110 H
GK5110 T
White
Grey
Anthracite
Cor-ten
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
T - 7°
S - 10°
F - 30°
K - 70°
W - 10°x45°
A - asymmetrical
727 lm (3000K)
535 lm (3000K, 30°)
5 power LEDs
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
body in die-cast aluminium
screen in serigraphed and transparent,
tempered extra-clear glass
built in
connection box with 0.30 m cable
surface mounted (wall)
see p. 341
spacer with RAL finish available on request
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 830
Asymmetrical optics
Diffuse
Optics
kg 1.80
kg 1.80
