L&L Luce&Light
332

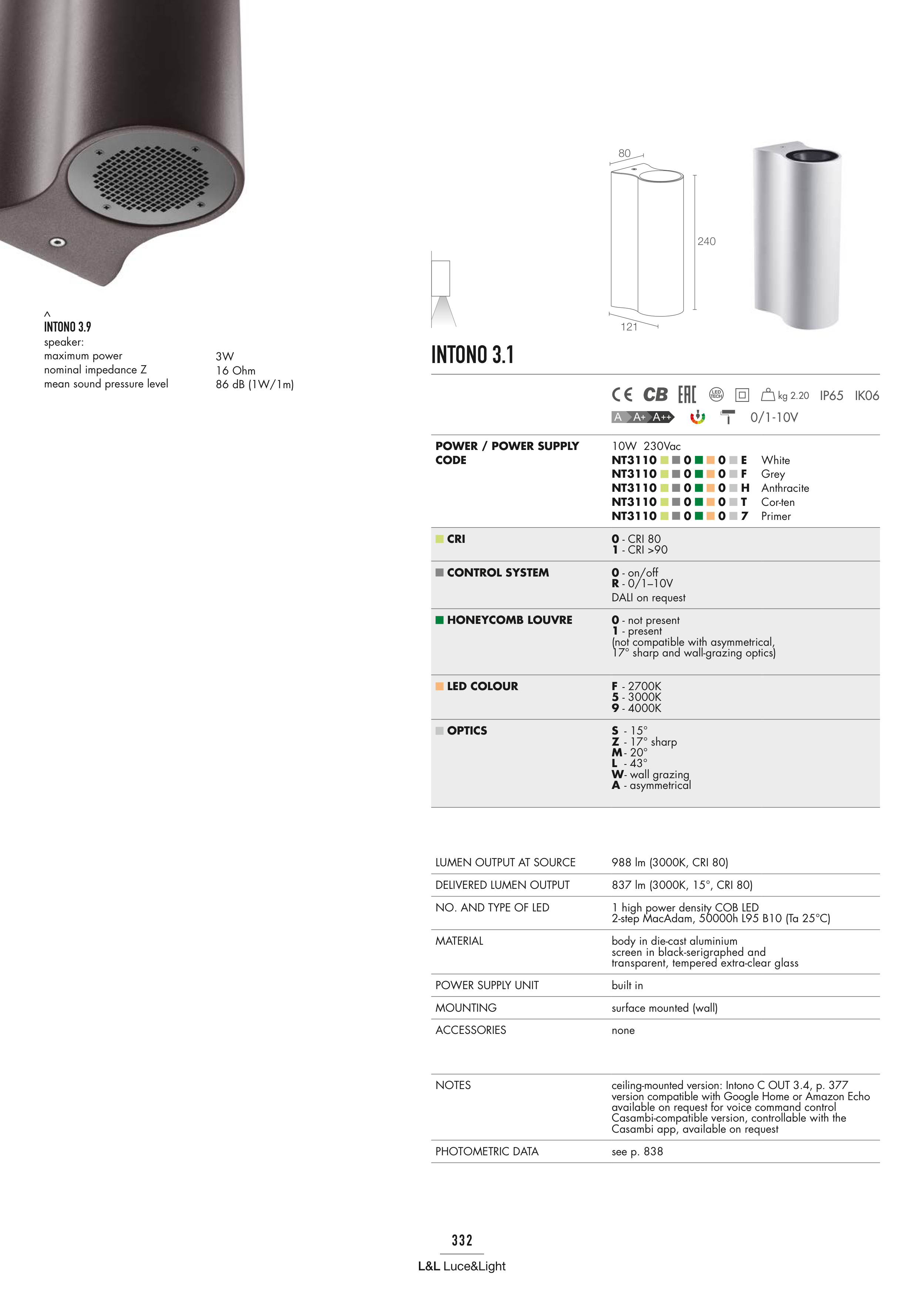

INTONO 3.1
IK06
IP65
0/1-10V
240
121
80
POWER / POWER SUPPLY
CODE
10W 230Vac
NT3110 0 0 E
NT3110 0 0 F
NT3110 0 0 H
NT3110 0 0 T
NT3110 0 0 7
White
Grey
Anthracite
Cor-ten
Primer
CRI
0 - CRI 80
1 - CRI >90
CONTROL SYSTEM
0 - on/off
R - 0/1–10V
DALI on request
HONEYCOMB LOUVRE
0 - not present
1 - present
(not compatible with asymmetrical,
17° sharp and wall-grazing optics)
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 15°
Z - 17° sharp
M - 20°
L - 43°
W - wall grazing
A - asymmetrical
LUMEN OUTPUT AT SOURCE
988 lm (3000K, CRI 80)
DELIVERED LUMEN OUTPUT
837 lm (3000K, 15°, CRI 80)
NO. AND TYPE OF LED
1 high power density COB LED
2-step MacAdam, 50000h L95 B10 (Ta 25°C)
MATERIAL
body in die-cast aluminium
screen in black-serigraphed and
transparent, tempered extra-clear glass
POWER SUPPLY UNIT
built in
MOUNTING
surface mounted (wall)
ACCESSORIES
none
NOTES
ceiling-mounted version: Intono C OUT 3.4, p. 377
version compatible with Google Home or Amazon Echo
available on request for voice command control
Casambi-compatible version, controllable with the
Casambi app, available on request
PHOTOMETRIC DATA
see p. 838
INTONO 3.9
speaker:
maximum power
nominal impedance Z
mean sound pressure level
3W
16 Ohm
86 dB (1W/1m)
kg 2.20
