L&L Luce&Light
331
150
76
50
150
76
50

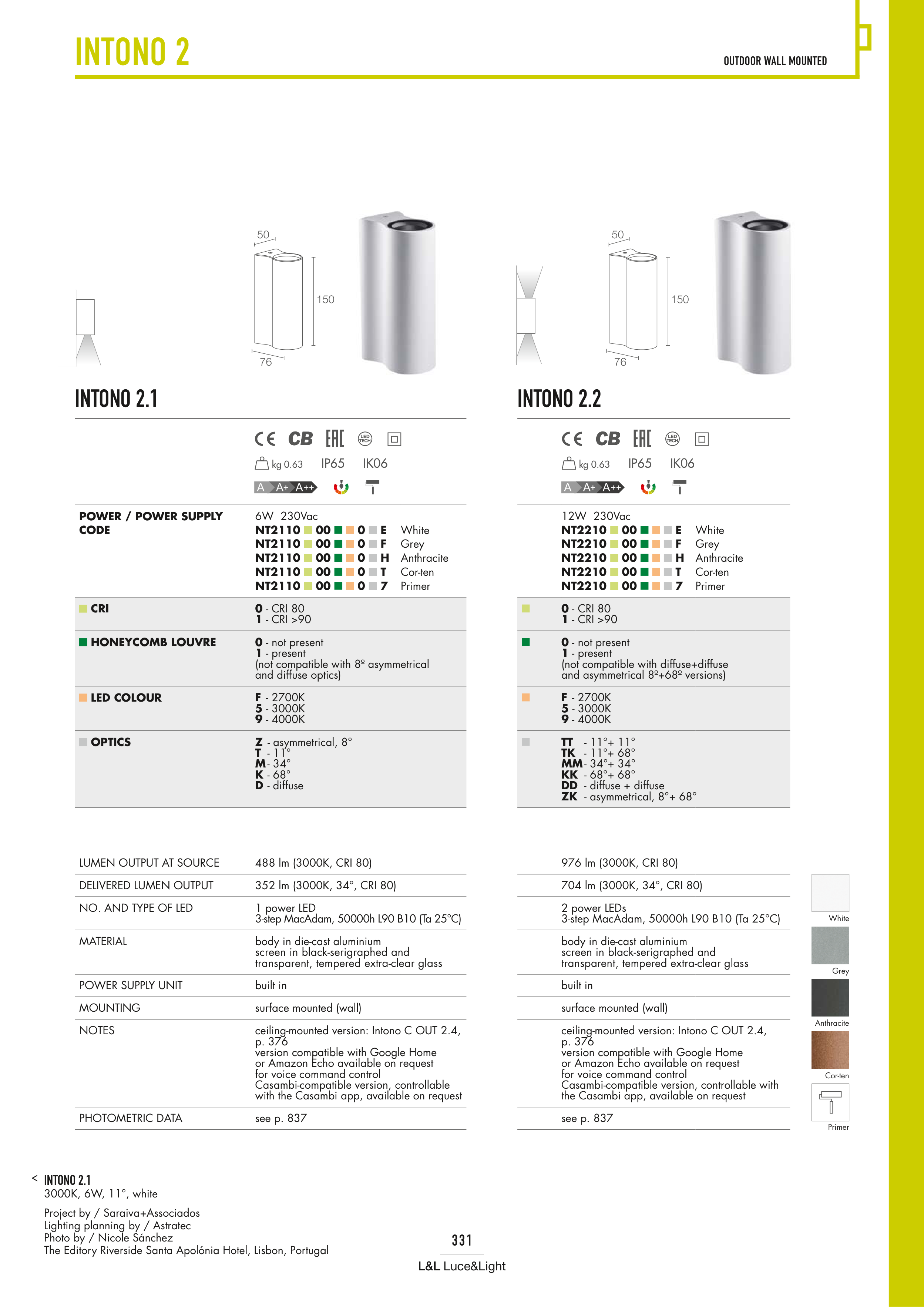

INTONO 2
IK06
IK06
IP65
IP65
INTONO 2.1
INTONO 2.2
OUTDOOR WALL MOUNTED
White
Anthracite
Grey
Cor-ten
Primer
POWER / POWER SUPPLY
CODE
6W 230Vac
NT2110 00 0 E
NT2110 00 0 F
NT2110 00 0 H
NT2110 00 0 T
NT2110 00 0 7
White
Grey
Anthracite
Cor-ten
Primer
CRI
0 - CRI 80
1 - CRI >90
HONEYCOMB LOUVRE
0 - not present
1 - present
(not compatible with 8º asymmetrical
and diffuse optics)
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
Z - asymmetrical, 8°
T - 11°
M - 34°
K - 68°
D - diffuse
LUMEN OUTPUT AT SOURCE
488 lm (3000K, CRI 80)
DELIVERED LUMEN OUTPUT
352 lm (3000K, 34°, CRI 80)
NO. AND TYPE OF LED
1 power LED
3-step MacAdam, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in die-cast aluminium
screen in black-serigraphed and
transparent, tempered extra-clear glass
POWER SUPPLY UNIT
built in
MOUNTING
surface mounted (wall)
NOTES
ceiling-mounted version: Intono C OUT 2.4,
p. 376
version compatible with Google Home
or Amazon Echo available on request
for voice command control
Casambi-compatible version, controllable
with the Casambi app, available on request
PHOTOMETRIC DATA
see p. 837
12W 230Vac
NT2210 00 E
NT2210 00 F
NT2210 00 H
NT2210 00 T
NT2210 00 7
White
Grey
Anthracite
Cor-ten
Primer
0 - CRI 80
1 - CRI >90
0 - not present
1 - present
(not compatible with diffuse+diffuse
and asymmetrical 8º+68º versions)
F - 2700K
5 - 3000K
9 - 4000K
TT - 11°+ 11°
TK - 11°+ 68°
MM - 34°+ 34°
KK - 68°+ 68°
DD - diffuse + diffuse
ZK - asymmetrical, 8°+ 68°
976 lm (3000K, CRI 80)
704 lm (3000K, 34°, CRI 80)
2 power LEDs
3-step MacAdam, 50000h L90 B10 (Ta 25°C)
body in die-cast aluminium
screen in black-serigraphed and
transparent, tempered extra-clear glass
built in
surface mounted (wall)
ceiling-mounted version: Intono C OUT 2.4,
p. 376
version compatible with Google Home
or Amazon Echo available on request
for voice command control
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 837
kg 0.63
kg 0.63
INTONO 2.1
3000K, 6W, 11°, white
Project by / Saraiva+Associados
Lighting planning by / Astratec
Photo by / Nicole Sánchez
The Editory Riverside Santa Apolónia Hotel, Lisbon, Portugal
