L&L Luce&Light
318

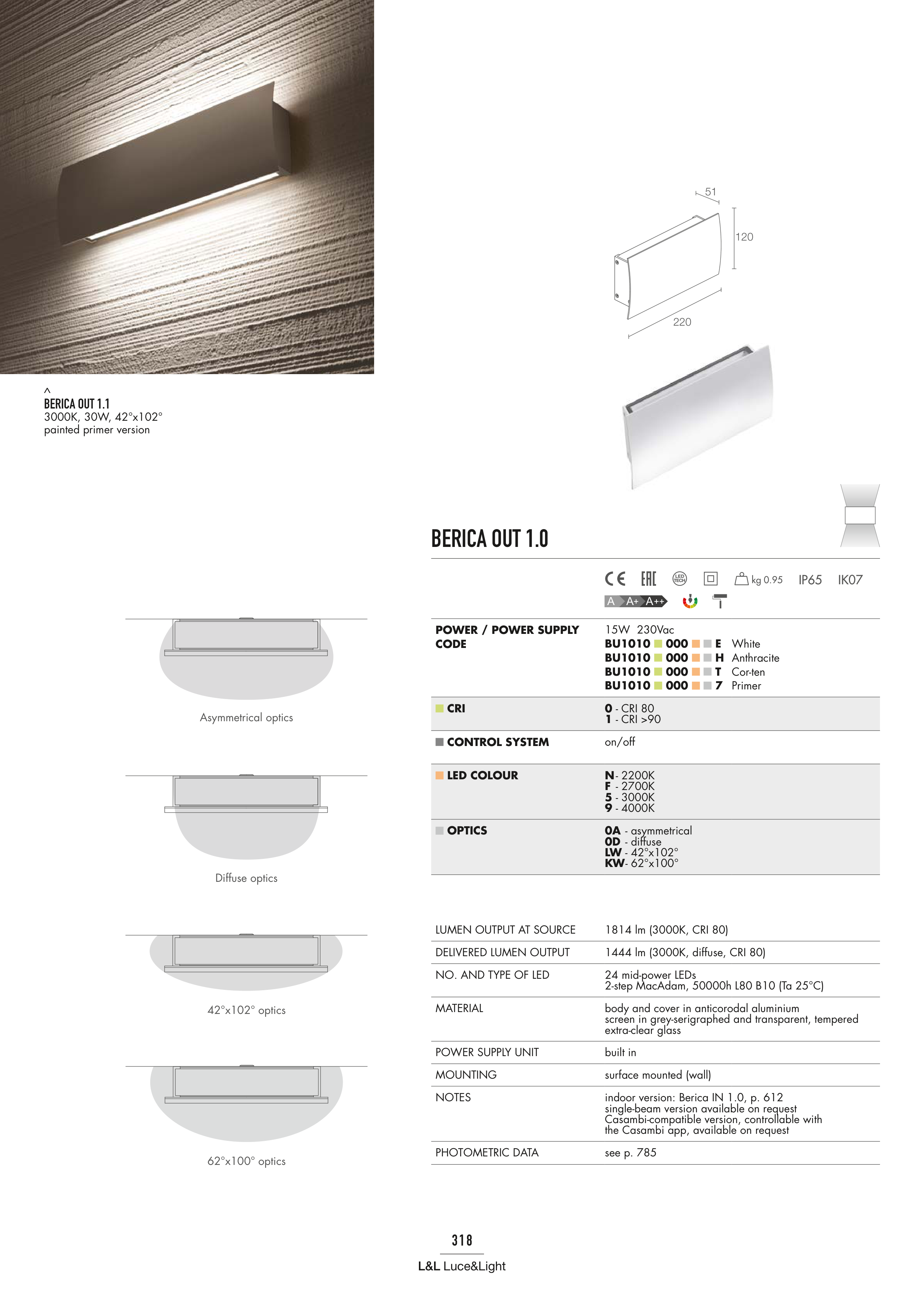

BERICA OUT 1.0
IP65
IK07
120
220
51
POWER / POWER SUPPLY
CODE
15W 230Vac
BU1010 000 E
BU1010 000 H
BU1010 000 T
BU1010 000 7
White
Anthracite
Cor-ten
Primer
CRI
0 - CRI 80
1 - CRI >90
CONTROL SYSTEM
on/off
LED COLOUR
N - 2200K
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
0A - asymmetrical
0D - diffuse
LW - 42°x102°
KW - 62°x100°
LUMEN OUTPUT AT SOURCE
1814 lm (3000K, CRI 80)
DELIVERED LUMEN OUTPUT
1444 lm (3000K, diffuse, CRI 80)
NO. AND TYPE OF LED
24 mid-power LEDs
2-step MacAdam, 50000h L80 B10 (Ta 25°C)
MATERIAL
body and cover in anticorodal aluminium
screen in grey-serigraphed and transparent, tempered
extra-clear glass
POWER SUPPLY UNIT
built in
MOUNTING
surface mounted (wall)
NOTES
indoor version: Berica IN 1.0, p. 612
single-beam version available on request
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 785
kg 0.95
42°x102° optics
Asymmetrical optics
62°x100° optics
Diffuse optics
BERICA OUT 1.1
3000K, 30W, 42°x102°
painted primer version
