40
73
62
L&L Luce&Light
298
IK07
IP65

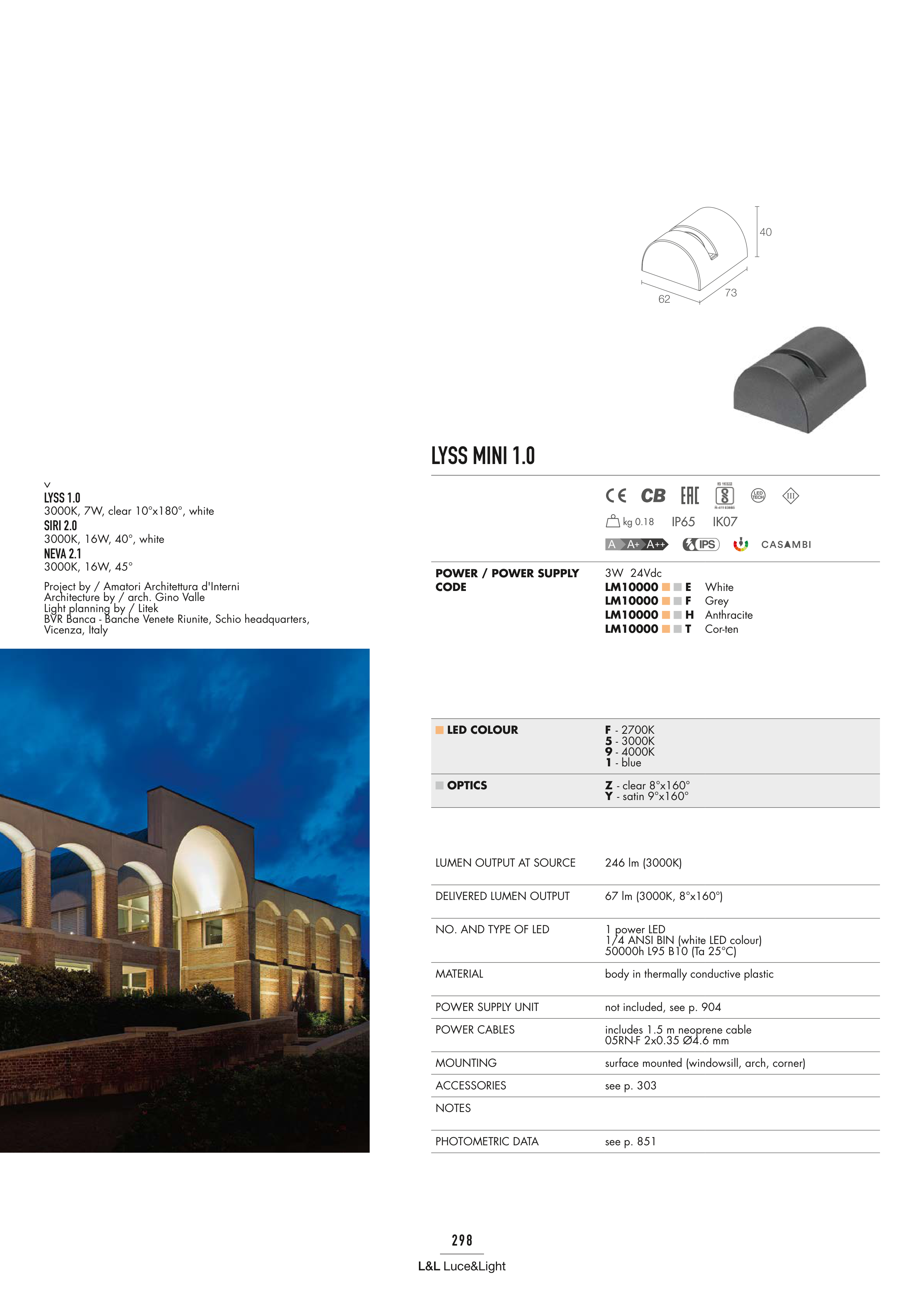

LYSS MINI 1.0
POWER / POWER SUPPLY
CODE
3W 24Vdc
LM10000 E
LM10000 F
LM10000 H
LM10000 T
White
Grey
Anthracite
Cor-ten
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
1 - blue
OPTICS
Z - clear 8°x160°
Y - satin 9°x160°
LUMEN OUTPUT AT SOURCE
246 lm (3000K)
DELIVERED LUMEN OUTPUT
67 lm (3000K, 8°x160°)
NO. AND TYPE OF LED
1 power LED
1/4 ANSI BIN (white LED colour)
50000h L95 B10 (Ta 25°C)
MATERIAL
body in thermally conductive plastic
POWER SUPPLY UNIT
not included, see p. 904
POWER CABLES
includes 1.5 m neoprene cable
05RN-F 2x0.35 Ø4.6 mm
MOUNTING
surface mounted (windowsill, arch, corner)
ACCESSORIES
see p. 303
NOTES
PHOTOMETRIC DATA
see p. 851
LYSS 1.0
3000K, 7W, clear 10°x180°, white
SIRI 2.0
3000K, 16W, 40°, white
NEVA 2.1
3000K, 16W, 45°
Project by / Amatori Architettura d'Interni
Architecture by / arch. Gino Valle
Light planning by / Litek
BVR Banca - Banche Venete Riunite, Schio headquarters,
Vicenza, Italy
kg 0.18
