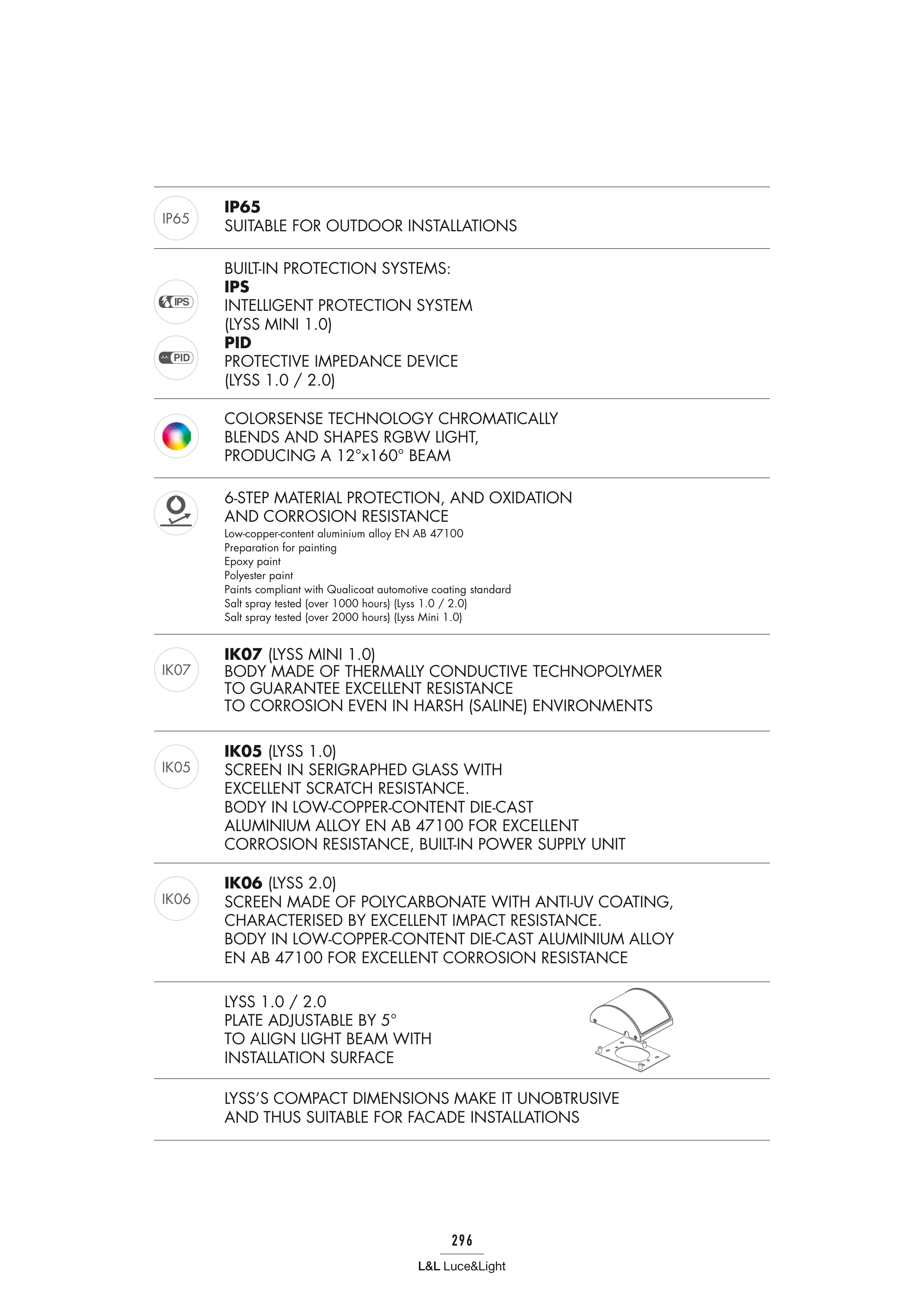

L&L Luce&Light
296
IP65
IK07
IK05
IK06
IP65
SUITABLE FOR OUTDOOR INSTALLATIONS
BUILT-IN PROTECTION SYSTEMS:
IPS
INTELLIGENT PROTECTION SYSTEM
(LYSS MINI 1.0)
PID
PROTECTIVE IMPEDANCE DEVICE
(LYSS 1.0 / 2.0)
COLORSENSE TECHNOLOGY CHROMATICALLY
BLENDS AND SHAPES RGBW LIGHT,
PRODUCING A 12°x160° BEAM
6-STEP MATERIAL PROTECTION, AND OXIDATION
AND CORROSION RESISTANCE
Low-copper-content aluminium alloy EN AB 47100
Preparation for painting
Epoxy paint
Polyester paint
Paints compliant with Qualicoat automotive coating standard
Salt spray tested (over 1000 hours) (Lyss 1.0 / 2.0)
Salt spray tested (over 2000 hours) (Lyss Mini 1.0)
IK07 (LYSS MINI 1.0)
BODY MADE OF THERMALLY CONDUCTIVE TECHNOPOLYMER
TO GUARANTEE EXCELLENT RESISTANCE
TO CORROSION EVEN IN HARSH (SALINE) ENVIRONMENTS
IK05 (LYSS 1.0)
SCREEN IN SERIGRAPHED GLASS WITH
EXCELLENT SCRATCH RESISTANCE.
BODY IN LOW-COPPER-CONTENT DIE-CAST
ALUMINIUM ALLOY EN AB 47100 FOR EXCELLENT
CORROSION RESISTANCE, BUILT-IN POWER SUPPLY UNIT
IK06 (LYSS 2.0)
SCREEN MADE OF POLYCARBONATE WITH ANTI-UV COATING,
CHARACTERISED BY EXCELLENT IMPACT RESISTANCE.
BODY IN LOW-COPPER-CONTENT DIE-CAST ALUMINIUM ALLOY
EN AB 47100 FOR EXCELLENT CORROSION RESISTANCE
LYSS 1.0 / 2.0
PLATE ADJUSTABLE BY 5°
TO ALIGN LIGHT BEAM WITH
INSTALLATION SURFACE
LYSS’S COMPACT DIMENSIONS MAKE IT UNOBTRUSIVE
AND THUS SUITABLE FOR FACADE INSTALLATIONS
