Ø252
138
180°
256
L&L Luce&Light
291
STRA P
IK10
0/1-10V
IP66

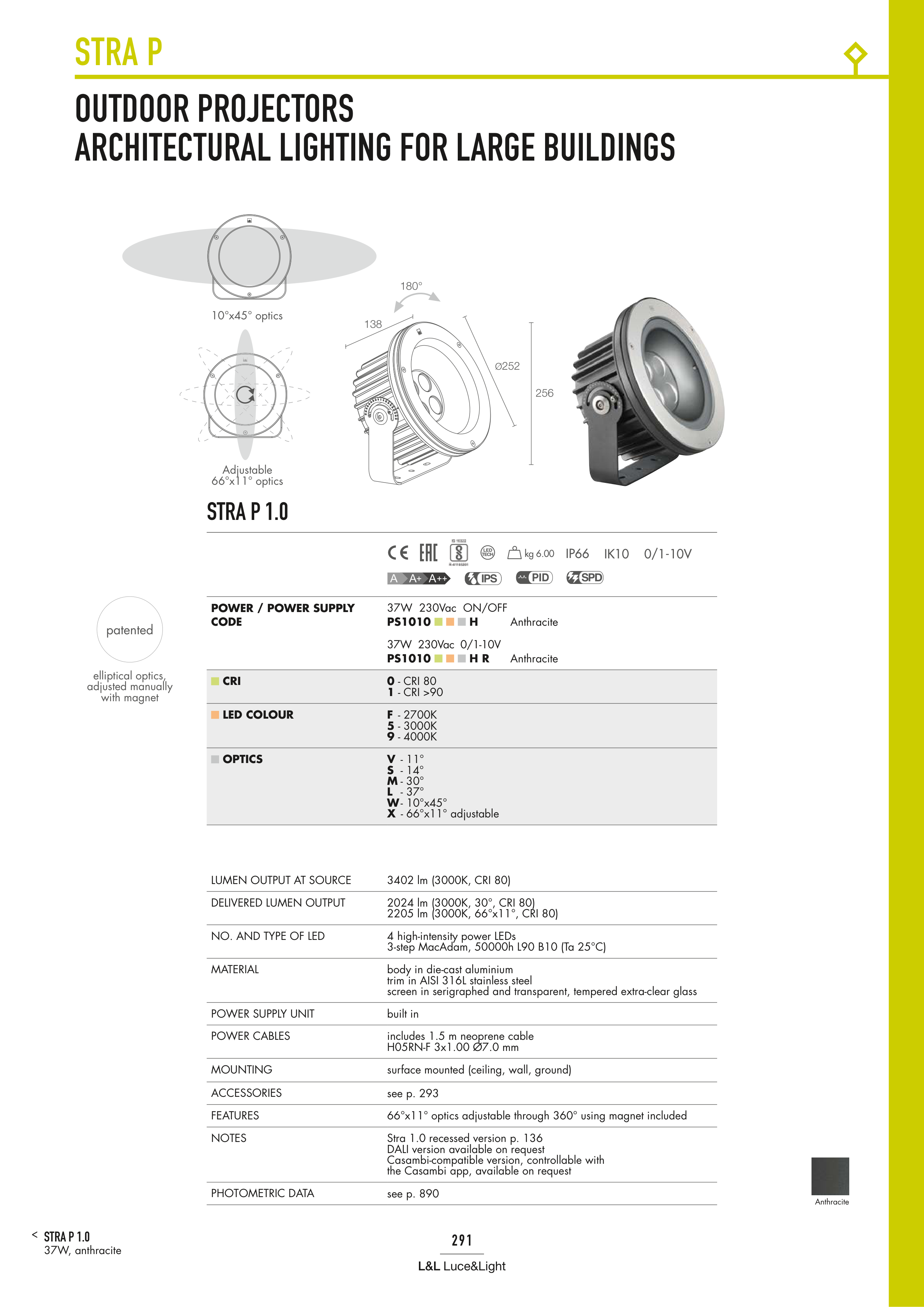

STRA P 1.0
POWER / POWER SUPPLY
CODE
37W 230Vac ON/OFF
PS1010 H
Anthracite
37W 230Vac 0/1-10V
PS1010 H R
Anthracite
CRI
0 - CRI 80
1 - CRI >90
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
V - 11°
S - 14°
M - 30°
L - 37°
W - 10°x45°
X - 66°x11° adjustable
LUMEN OUTPUT AT SOURCE
3402 lm (3000K, CRI 80)
DELIVERED LUMEN OUTPUT
2024 lm (3000K, 30°, CRI 80)
2205 lm (3000K, 66°x11°, CRI 80)
NO. AND TYPE OF LED
4 high-intensity power LEDs
3-step MacAdam, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in die-cast aluminium
trim in AISI 316L stainless steel
screen in serigraphed and transparent, tempered extra-clear glass
POWER SUPPLY UNIT
built in
POWER CABLES
includes 1.5 m neoprene cable
H05RN-F 3x1.00 Ø7.0 mm
MOUNTING
surface mounted (ceiling, wall, ground)
ACCESSORIES
see p. 293
FEATURES
66°x11° optics adjustable through 360° using magnet included
NOTES
Stra 1.0 recessed version p. 136
DALI version available on request
Casambi-compatible version, controllable with
the Casambi app, available on request
PHOTOMETRIC DATA
see p. 890
STRA P 1.0
37W, anthracite
patented
elliptical optics,
adjusted manually
with magnet
10°x45° optics
Adjustable
66°x11° optics
kg 6.00
Anthracite
OUTDOOR PROJECTORS
ARCHITECTURAL LIGHTING FOR LARGE BUILDINGS
