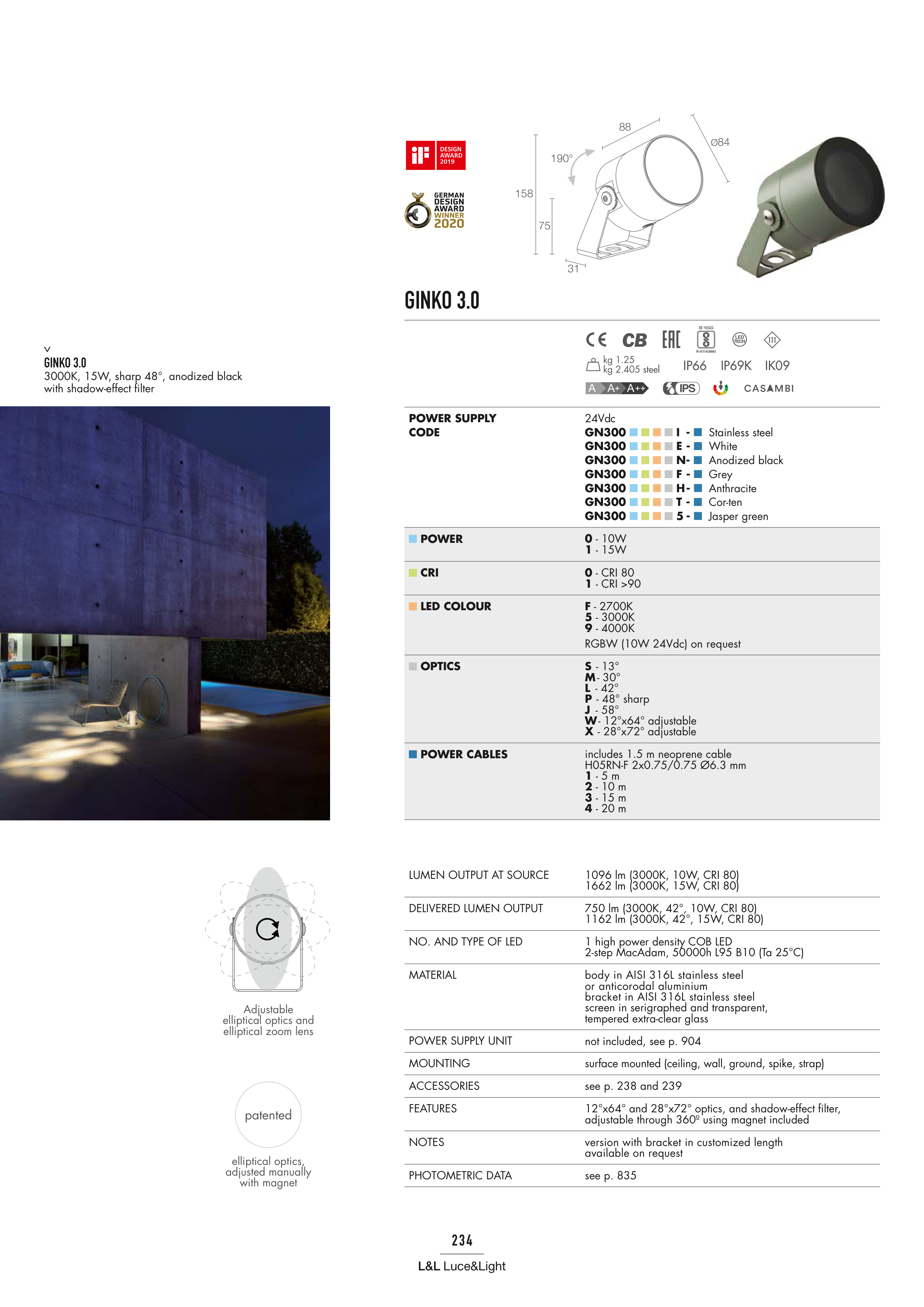

GINKO 3.0
Ø84
88
31
158
75
190°
IK09
IP66
IP69K
POWER SUPPLY
CODE
24Vdc
GN300 I -
GN300 E -
GN300 N-
GN300 F -
GN300 H -
GN300 T -
GN300 5 -
Stainless steel
White
Anodized black
Grey
Anthracite
Cor-ten
Jasper green
POWER
0 - 10W
1 - 15W
CRI
0 - CRI 80
1 - CRI >90
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
RGBW (10W 24Vdc) on request
OPTICS
S - 13°
M - 30°
L - 42°
P - 48° sharp
J - 58°
W - 12°x64° adjustable
X - 28°x72° adjustable
POWER CABLES
includes 1.5 m neoprene cable
H05RN-F 2x0.75/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
1096 lm (3000K, 10W, CRI 80)
1662 lm (3000K, 15W, CRI 80)
DELIVERED LUMEN OUTPUT
750 lm (3000K, 42°, 10W, CRI 80)
1162 lm (3000K, 42°, 15W, CRI 80)
NO. AND TYPE OF LED
1 high power density COB LED
2-step MacAdam, 50000h L95 B10 (Ta 25°C)
MATERIAL
body in AISI 316L stainless steel
or anticorodal aluminium
bracket in AISI 316L stainless steel
screen in serigraphed and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
not included, see p. 904
MOUNTING
surface mounted (ceiling, wall, ground, spike, strap)
ACCESSORIES
see p. 238 and 239
FEATURES
12°x64° and 28°x72° optics, and shadow-effect filter,
adjustable through 360º using magnet included
NOTES
version with bracket in customized length
available on request
PHOTOMETRIC DATA
see p. 835
kg 1.25
kg 2.405 steel
elliptical optics,
adjusted manually
with magnet
patented
Adjustable
elliptical optics and
elliptical zoom lens
GINKO 3.0
3000K, 15W, sharp 48°, anodized black
with shadow-effect filter
