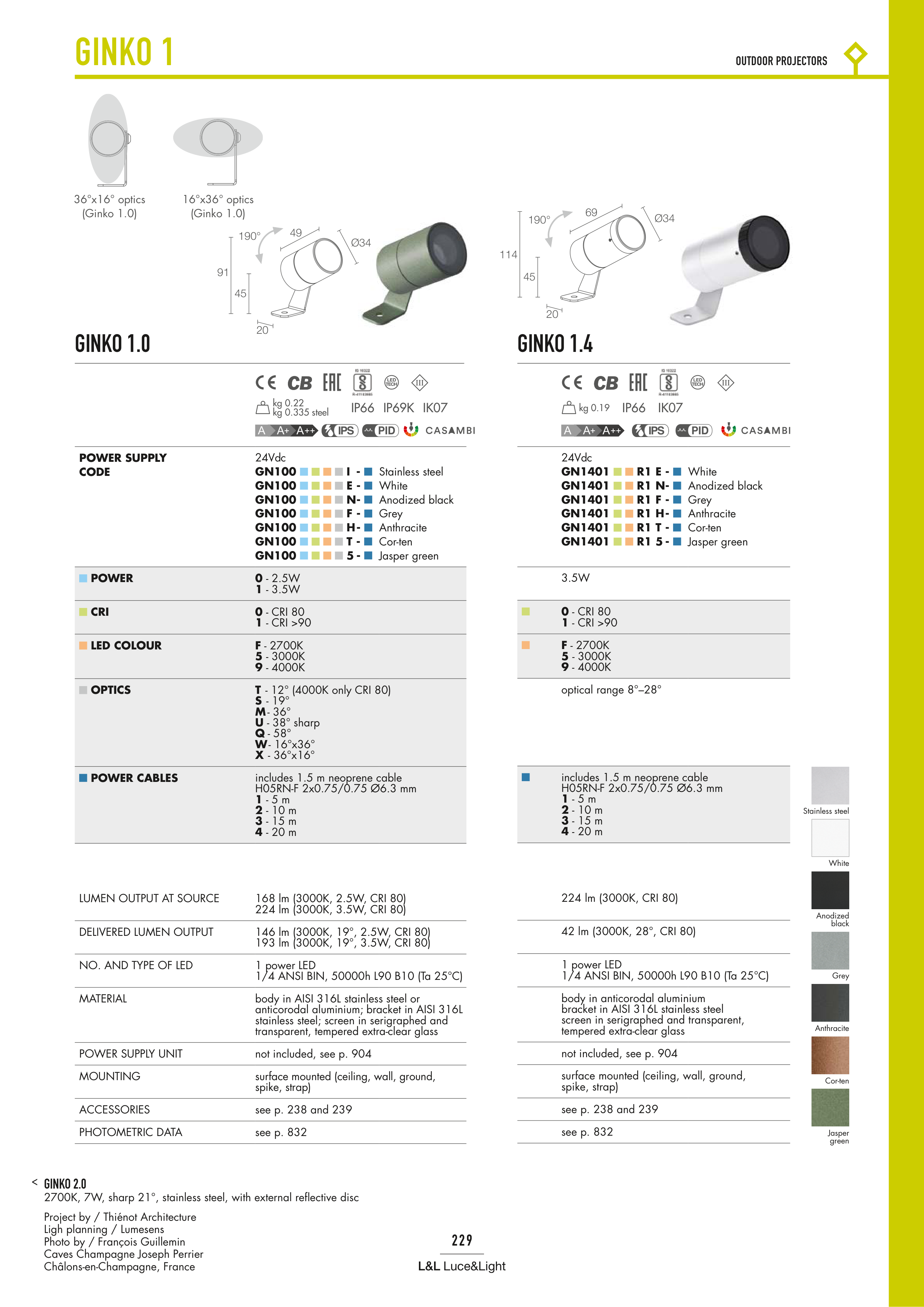

GINKO 1
IK07
IK07
IP69K
IP66
IP66
GINKO 1.0
GINKO 1.4
114
Ø34
69
45
20
190°
91
Ø34
49
45
20
190°
OUTDOOR PROJECTORS
POWER SUPPLY
CODE
24Vdc
GN100 I -
GN100 E -
GN100 N -
GN100 F -
GN100 H -
GN100 T -
GN100 5 -
Stainless steel
White
Anodized black
Grey
Anthracite
Cor-ten
Jasper green
POWER
0 - 2.5W
1 - 3.5W
CRI
0 - CRI 80
1 - CRI >90
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
T - 12° (4000K only CRI 80)
S - 19°
M - 36°
U - 38° sharp
Q - 58°
W - 16°x36°
X - 36°x16°
POWER CABLES
includes 1.5 m neoprene cable
H05RN-F 2x0.75/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
168 lm (3000K, 2.5W, CRI 80)
224 lm (3000K, 3.5W, CRI 80)
DELIVERED LUMEN OUTPUT
146 lm (3000K, 19°, 2.5W, CRI 80)
193 lm (3000K, 19°, 3.5W, CRI 80)
NO. AND TYPE OF LED
1 power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in AISI 316L stainless steel or
anticorodal aluminium; bracket in AISI 316L
stainless steel; screen in serigraphed and
transparent, tempered extra-clear glass
POWER SUPPLY UNIT
not included, see p. 904
MOUNTING
surface mounted (ceiling, wall, ground,
spike, strap)
ACCESSORIES
see p. 238 and 239
PHOTOMETRIC DATA
see p. 832
24Vdc
GN1401 R1 E -
GN1401 R1 N -
GN1401 R1 F -
GN1401 R1 H -
GN1401 R1 T -
GN1401 R1 5 -
White
Anodized black
Grey
Anthracite
Cor-ten
Jasper green
3.5W
0 - CRI 80
1 - CRI >90
F - 2700K
5 - 3000K
9 - 4000K
optical range 8°–28°
includes 1.5 m neoprene cable
H05RN-F 2x0.75/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
224 lm (3000K, CRI 80)
42 lm (3000K, 28°, CRI 80)
1 power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
body in anticorodal aluminium
bracket in AISI 316L stainless steel
screen in serigraphed and transparent,
tempered extra-clear glass
not included, see p. 904
surface mounted (ceiling, wall, ground,
spike, strap)
see p. 238 and 239
see p. 832
kg 0.22
kg 0.335 steel
kg 0.19
16°x36° optics
(Ginko 1.0)
36°x16° optics
(Ginko 1.0)
Stainless steel
White
Anthracite
Anodized
black
Grey
Cor-ten
Jasper
green
GINKO 2.0
2700K, 7W, sharp 21°, stainless steel, with external reflective disc
Project by / Thiénot Architecture
Ligh planning / Lumesens
Photo by / François Guillemin
Caves Champagne Joseph Perrier
Châlons-en-Champagne, France
