215
RIO 2.0
RIO 2.1
260
37
56
47
510
37
56
47
IK10
IK10
IP67
IP67

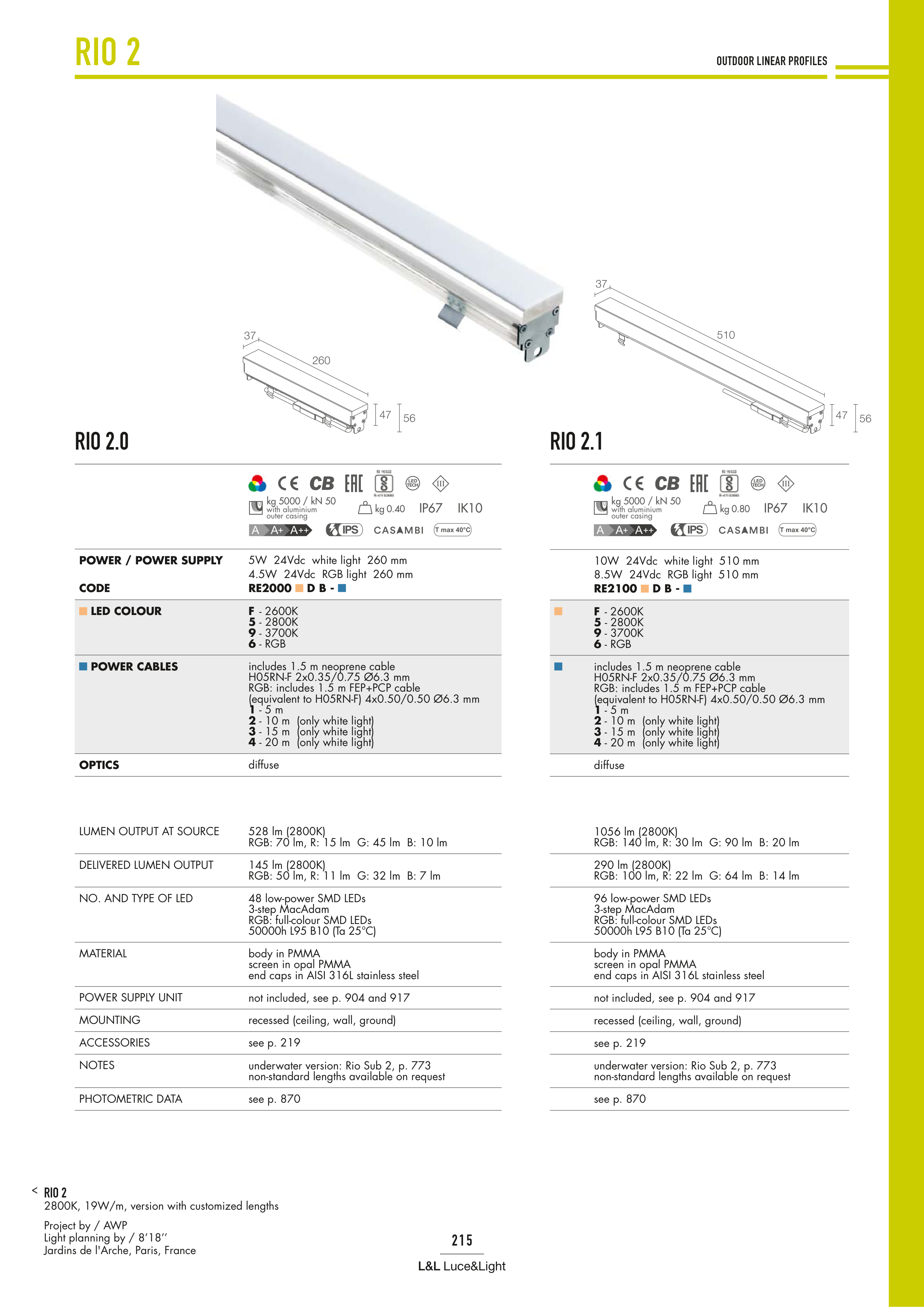

RIO 2
OUTDOOR LINEAR PROFILES
POWER / POWER SUPPLY
CODE
5W 24Vdc white light 260 mm
4.5W 24Vdc RGB light 260 mm
RE2000 D B -
LED COLOUR
F - 2600K
5 - 2800K
9 - 3700K
6 - RGB
POWER CABLES
includes 1.5 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
RGB: includes 1.5 m FEP+PCP cable
(equivalent to H05RN-F) 4x0.50/0.50 Ø6.3 mm
1 - 5 m
2 - 10 m (only white light)
3 - 15 m (only white light)
4 - 20 m (only white light)
OPTICS
diffuse
LUMEN OUTPUT AT SOURCE
528 lm (2800K)
RGB: 70 lm, R: 15 lm G: 45 lm B: 10 lm
DELIVERED LUMEN OUTPUT
145 lm (2800K)
RGB: 50 lm, R: 11 lm G: 32 lm B: 7 lm
NO. AND TYPE OF LED
48 low-power SMD LEDs
3-step MacAdam
RGB: full-colour SMD LEDs
50000h L95 B10 (Ta 25°C)
MATERIAL
body in PMMA
screen in opal PMMA
end caps in AISI 316L stainless steel
POWER SUPPLY UNIT
not included, see p. 904 and 917
MOUNTING
recessed (ceiling, wall, ground)
ACCESSORIES
see p. 219
NOTES
underwater version: Rio Sub 2, p. 773
non-standard lengths available on request
PHOTOMETRIC DATA
see p. 870
10W 24Vdc white light 510 mm
8.5W 24Vdc RGB light 510 mm
RE2100 D B -
F - 2600K
5 - 2800K
9 - 3700K
6 - RGB
includes 1.5 m neoprene cable
H05RN-F 2x0.35/0.75 Ø6.3 mm
RGB: includes 1.5 m FEP+PCP cable
(equivalent to H05RN-F) 4x0.50/0.50 Ø6.3 mm
1 - 5 m
2 - 10 m (only white light)
3 - 15 m (only white light)
4 - 20 m (only white light)
diffuse
1056 lm (2800K)
RGB: 140 lm, R: 30 lm G: 90 lm B: 20 lm
290 lm (2800K)
RGB: 100 lm, R: 22 lm G: 64 lm B: 14 lm
96 low-power SMD LEDs
3-step MacAdam
RGB: full-colour SMD LEDs
50000h L95 B10 (Ta 25°C)
body in PMMA
screen in opal PMMA
end caps in AISI 316L stainless steel
not included, see p. 904 and 917
recessed (ceiling, wall, ground)
see p. 219
underwater version: Rio Sub 2, p. 773
non-standard lengths available on request
see p. 870
RIO 2
2800K, 19W/m, version with customized lengths
Project by / AWP
Light planning by / 8’18’’
Jardins de l'Arche, Paris, France
kg 0.80
kg 0.40
kg 5000 / kN 50
with aluminium
outer casing
kg 5000 / kN 50
with aluminium
outer casing
