L&L Luce&Light
201
1037
37
58
29
1758
37
58
29

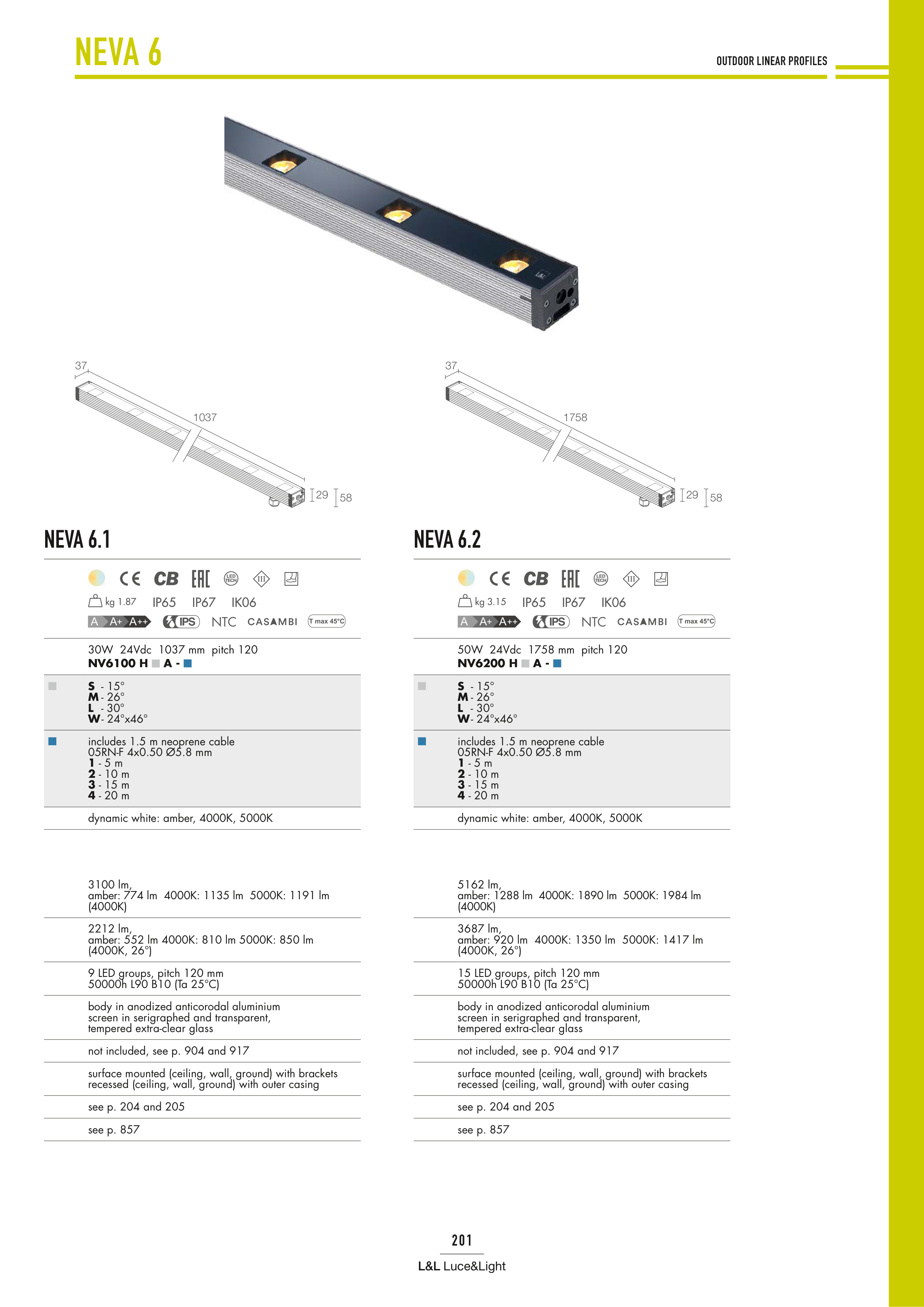

NEVA 6
NEVA 6.1
NEVA 6.2
IK06
IK06
IP67
IP65
IP67
IP65
NTC
NTC
OUTDOOR LINEAR PROFILES
30W 24Vdc 1037 mm pitch 120
NV6100 H A -
S - 15°
M - 26°
L - 30°
W - 24°x46°
includes 1.5 m neoprene cable
05RN-F 4x0.50 Ø5.8 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
dynamic white: amber, 4000K, 5000K
3100 lm,
amber: 774 lm 4000K: 1135 lm 5000K: 1191 lm
(4000K)
2212 lm,
amber: 552 lm 4000K: 810 lm 5000K: 850 lm
(4000K, 26°)
9 LED groups, pitch 120 mm
50000h L90 B10 (Ta 25°C)
body in anodized anticorodal aluminium
screen in serigraphed and transparent,
tempered extra-clear glass
not included, see p. 904 and 917
surface mounted (ceiling, wall, ground) with brackets
recessed (ceiling, wall, ground) with outer casing
see p. 204 and 205
see p. 857
50W 24Vdc 1758 mm pitch 120
NV6200 H A -
S - 15°
M - 26°
L - 30°
W - 24°x46°
includes 1.5 m neoprene cable
05RN-F 4x0.50 Ø5.8 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
dynamic white: amber, 4000K, 5000K
5162 lm,
amber: 1288 lm 4000K: 1890 lm 5000K: 1984 lm
(4000K)
3687 lm,
amber: 920 lm 4000K: 1350 lm 5000K: 1417 lm
(4000K, 26°)
15 LED groups, pitch 120 mm
50000h L90 B10 (Ta 25°C)
body in anodized anticorodal aluminium
screen in serigraphed and transparent,
tempered extra-clear glass
not included, see p. 904 and 917
surface mounted (ceiling, wall, ground) with brackets
recessed (ceiling, wall, ground) with outer casing
see p. 204 and 205
see p. 857
kg 1.87
kg 3.15
