L&L Luce&Light
197
1037
37
74
29
1758
37
74
29

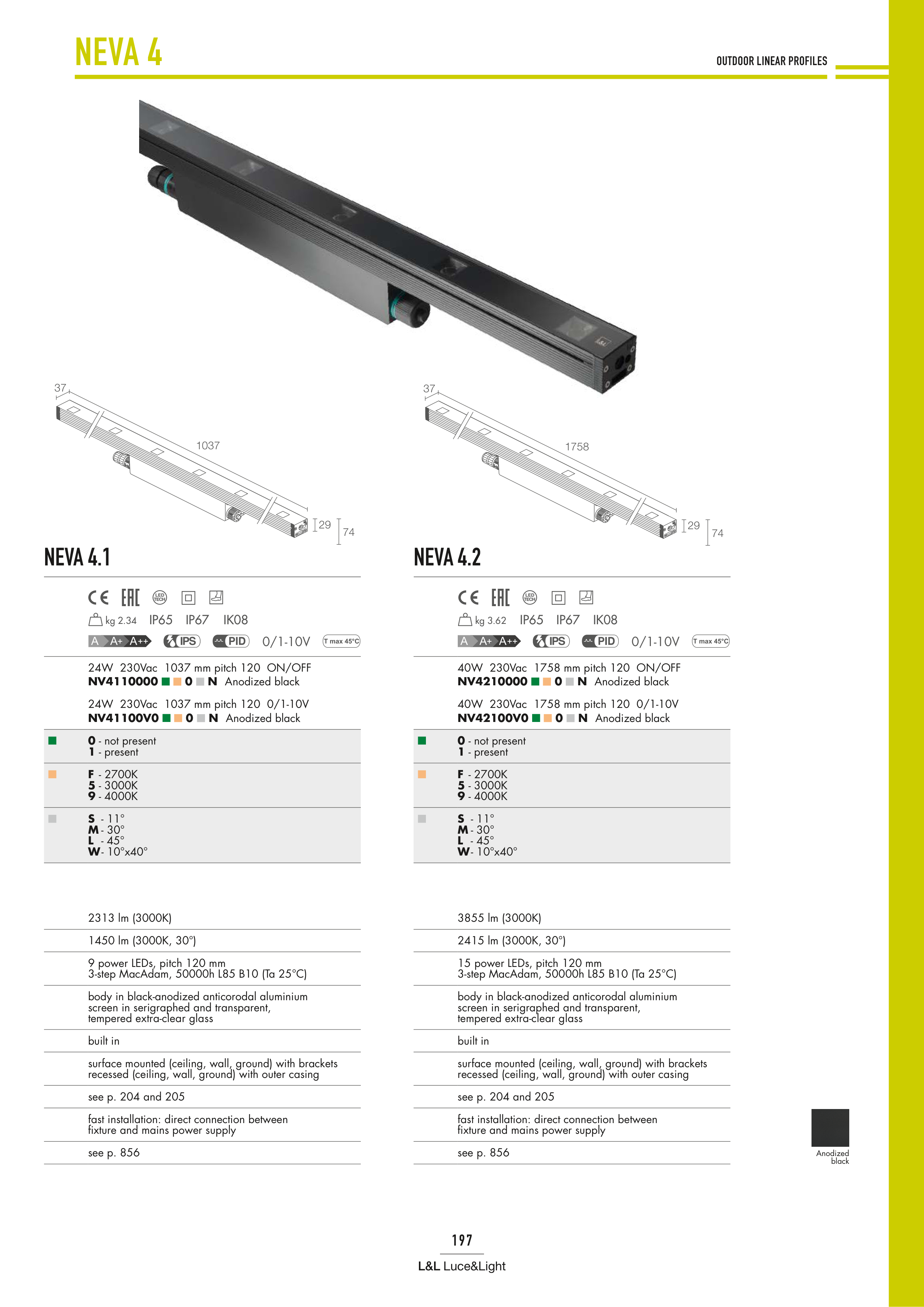

NEVA 4
NEVA 4.1
NEVA 4.2
IK08
IP67
IP67
IK08
IP65
IP65
0/1-10V
0/1-10V
OUTDOOR LINEAR PROFILES
24W 230Vac 1037 mm pitch 120 ON/OFF
NV4110000 0 N Anodized black
24W 230Vac 1037 mm pitch 120 0/1-10V
NV41100V0 0 N Anodized black
0 - not present
1 - present
F - 2700K
5 - 3000K
9 - 4000K
S - 11°
M - 30°
L - 45°
W - 10°x40°
2313 lm (3000K)
1450 lm (3000K, 30°)
9 power LEDs, pitch 120 mm
3-step MacAdam, 50000h L85 B10 (Ta 25°C)
body in black-anodized anticorodal aluminium
screen in serigraphed and transparent,
tempered extra-clear glass
built in
surface mounted (ceiling, wall, ground) with brackets
recessed (ceiling, wall, ground) with outer casing
see p. 204 and 205
fast installation: direct connection between
fixture and mains power supply
see p. 856
40W 230Vac 1758 mm pitch 120 ON/OFF
NV4210000 0 N Anodized black
40W 230Vac 1758 mm pitch 120 0/1-10V
NV42100V0 0 N Anodized black
0 - not present
1 - present
F - 2700K
5 - 3000K
9 - 4000K
S - 11°
M - 30°
L - 45°
W - 10°x40°
3855 lm (3000K)
2415 lm (3000K, 30°)
15 power LEDs, pitch 120 mm
3-step MacAdam, 50000h L85 B10 (Ta 25°C)
body in black-anodized anticorodal aluminium
screen in serigraphed and transparent,
tempered extra-clear glass
built in
surface mounted (ceiling, wall, ground) with brackets
recessed (ceiling, wall, ground) with outer casing
see p. 204 and 205
fast installation: direct connection between
fixture and mains power supply
see p. 856
kg 2.34
kg 3.62
Anodized
black
