L&L Luce&Light
196
677
37
74
29

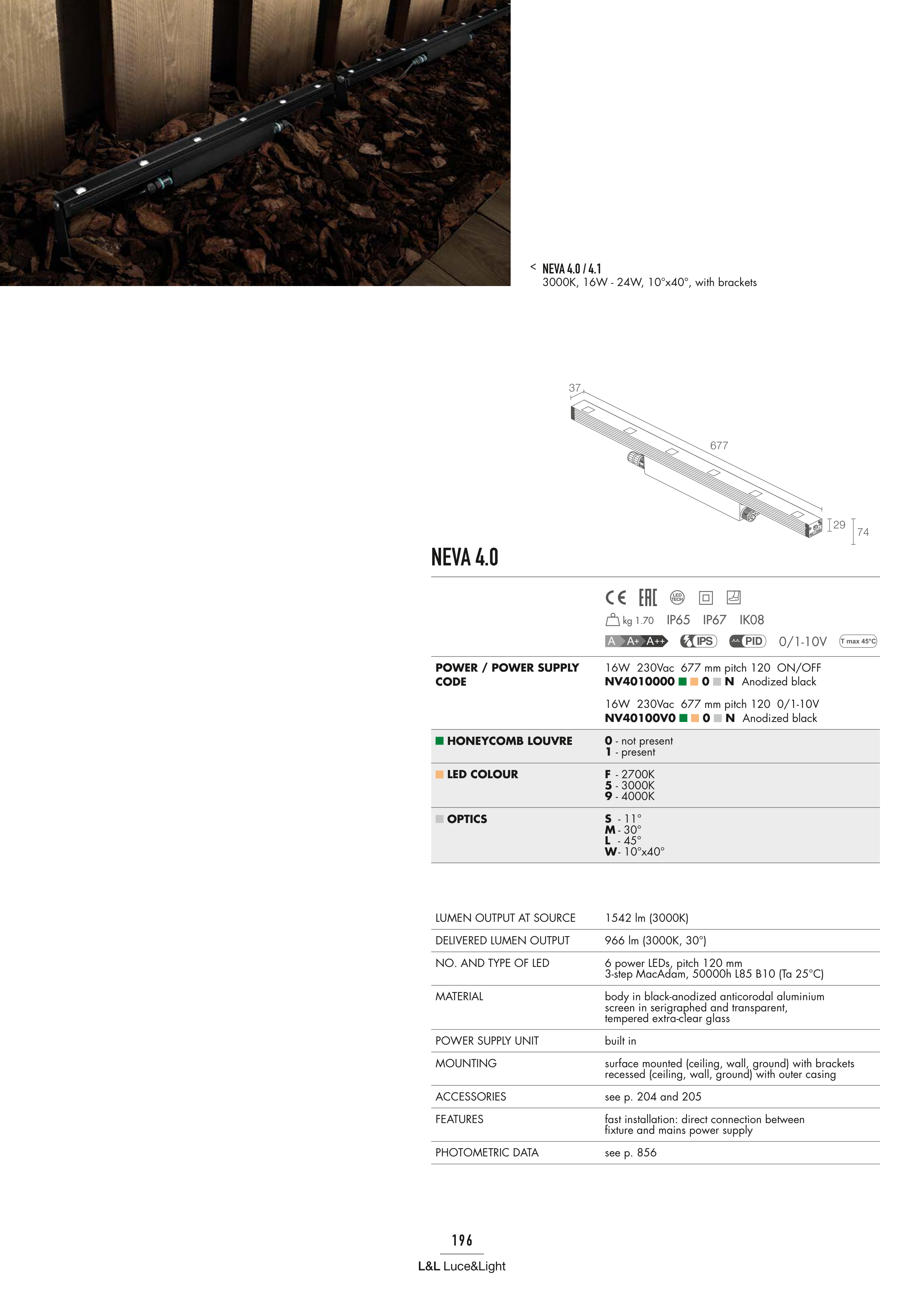

NEVA 4.0
IP67
IK08
IP65
0/1-10V
POWER / POWER SUPPLY
CODE
16W 230Vac 677 mm pitch 120 ON/OFF
NV4010000 0 N Anodized black
16W 230Vac 677 mm pitch 120 0/1-10V
NV40100V0 0 N Anodized black
HONEYCOMB LOUVRE
0 - not present
1 - present
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 11°
M - 30°
L - 45°
W - 10°x40°
LUMEN OUTPUT AT SOURCE
1542 lm (3000K)
DELIVERED LUMEN OUTPUT
966 lm (3000K, 30°)
NO. AND TYPE OF LED
6 power LEDs, pitch 120 mm
3-step MacAdam, 50000h L85 B10 (Ta 25°C)
MATERIAL
body in black-anodized anticorodal aluminium
screen in serigraphed and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
built in
MOUNTING
surface mounted (ceiling, wall, ground) with brackets
recessed (ceiling, wall, ground) with outer casing
ACCESSORIES
see p. 204 and 205
FEATURES
fast installation: direct connection between
fixture and mains power supply
PHOTOMETRIC DATA
see p. 856
kg 1.70
NEVA 4.0 / 4.1
3000K, 16W - 24W, 10°x40°, with brackets
