L&L Luce&Light
191
1037
37
58
29
1758
37
58
29

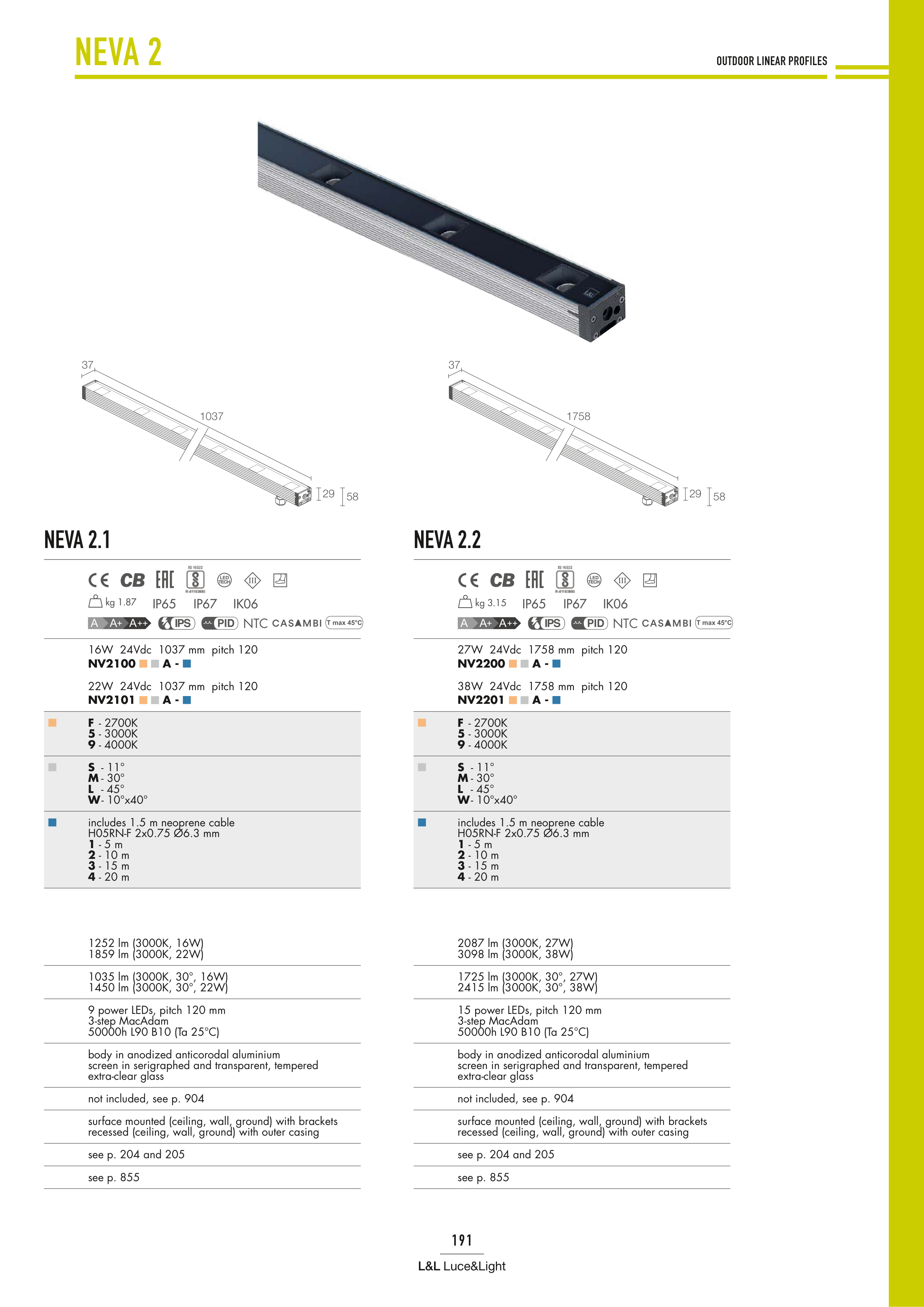

NEVA 2
NEVA 2.1
NEVA 2.2
NTC
NTC
IK06
IK06
IP67
IP65
IP67
IP65
OUTDOOR LINEAR PROFILES
16W 24Vdc 1037 mm pitch 120
NV2100 A -
22W 24Vdc 1037 mm pitch 120
NV2101 A -
F - 2700K
5 - 3000K
9 - 4000K
S - 11°
M - 30°
L - 45°
W - 10°x40°
includes 1.5 m neoprene cable
H05RN-F 2x0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
1252 lm (3000K, 16W)
1859 lm (3000K, 22W)
1035 lm (3000K, 30°, 16W)
1450 lm (3000K, 30°, 22W)
9 power LEDs, pitch 120 mm
3-step MacAdam
50000h L90 B10 (Ta 25°C)
body in anodized anticorodal aluminium
screen in serigraphed and transparent, tempered
extra-clear glass
not included, see p. 904
surface mounted (ceiling, wall, ground) with brackets
recessed (ceiling, wall, ground) with outer casing
see p. 204 and 205
see p. 855
27W 24Vdc 1758 mm pitch 120
NV2200 A -
38W 24Vdc 1758 mm pitch 120
NV2201 A -
F - 2700K
5 - 3000K
9 - 4000K
S - 11°
M - 30°
L - 45°
W - 10°x40°
includes 1.5 m neoprene cable
H05RN-F 2x0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
2087 lm (3000K, 27W)
3098 lm (3000K, 38W)
1725 lm (3000K, 30°, 27W)
2415 lm (3000K, 30°, 38W)
15 power LEDs, pitch 120 mm
3-step MacAdam
50000h L90 B10 (Ta 25°C)
body in anodized anticorodal aluminium
screen in serigraphed and transparent, tempered
extra-clear glass
not included, see p. 904
surface mounted (ceiling, wall, ground) with brackets
recessed (ceiling, wall, ground) with outer casing
see p. 204 and 205
see p. 855
kg 1.87
kg 3.15
