L&L Luce&Light
181

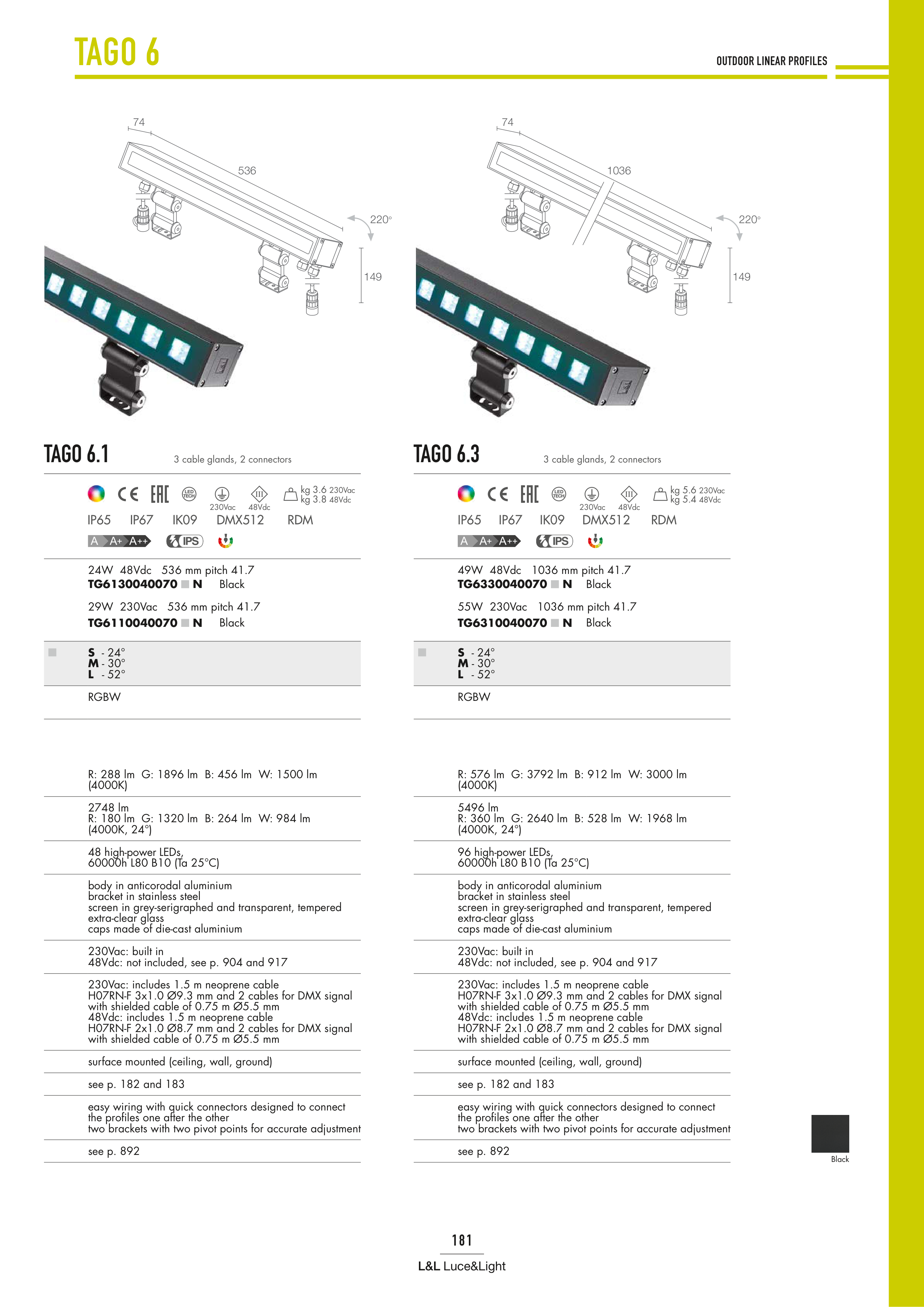

TAGO 6
TAGO 6.1
TAGO 6.3
74
536
149
220°
74
1036
149
220°
DMX512
DMX512
RDM
RDM
IP65
IP65
IP67
IP67
IK09
IK09
230Vac
230Vac
48Vdc
48Vdc
OUTDOOR LINEAR PROFILES
24W 48Vdc 536 mm pitch 41.7
TG6130040070 N
Black
29W 230Vac 536 mm pitch 41.7
TG6110040070 N
Black
S - 24°
M - 30°
L - 52°
RGBW
R: 288 lm G: 1896 lm B: 456 lm W: 1500 lm
(4000K)
2748 lm
R: 180 lm G: 1320 lm B: 264 lm W: 984 lm
(4000K, 24°)
48 high-power LEDs,
60000h L80 B10 (Ta 25°C)
body in anticorodal aluminium
bracket in stainless steel
screen in grey-serigraphed and transparent, tempered
extra-clear glass
caps made of die-cast aluminium
230Vac: built in
48Vdc: not included, see p. 904 and 917
230Vac: includes 1.5 m neoprene cable
H07RN-F 3x1.0 Ø9.3 mm and 2 cables for DMX signal
with shielded cable of 0.75 m Ø5.5 mm
48Vdc: includes 1.5 m neoprene cable
H07RN-F 2x1.0 Ø8.7 mm and 2 cables for DMX signal
with shielded cable of 0.75 m Ø5.5 mm
surface mounted (ceiling, wall, ground)
see p. 182 and 183
easy wiring with quick connectors designed to connect
the profiles one after the other
two brackets with two pivot points for accurate adjustment
see p. 892
49W 48Vdc 1036 mm pitch 41.7
TG6330040070 N
Black
55W 230Vac 1036 mm pitch 41.7
TG6310040070 N
Black
S - 24°
M - 30°
L - 52°
RGBW
R: 576 lm G: 3792 lm B: 912 lm W: 3000 lm
(4000K)
5496 lm
R: 360 lm G: 2640 lm B: 528 lm W: 1968 lm
(4000K, 24°)
96 high-power LEDs,
60000h L80 B10 (Ta 25°C)
body in anticorodal aluminium
bracket in stainless steel
screen in grey-serigraphed and transparent, tempered
extra-clear glass
caps made of die-cast aluminium
230Vac: built in
48Vdc: not included, see p. 904 and 917
230Vac: includes 1.5 m neoprene cable
H07RN-F 3x1.0 Ø9.3 mm and 2 cables for DMX signal
with shielded cable of 0.75 m Ø5.5 mm
48Vdc: includes 1.5 m neoprene cable
H07RN-F 2x1.0 Ø8.7 mm and 2 cables for DMX signal
with shielded cable of 0.75 m Ø5.5 mm
surface mounted (ceiling, wall, ground)
see p. 182 and 183
easy wiring with quick connectors designed to connect
the profiles one after the other
two brackets with two pivot points for accurate adjustment
see p. 892
kg 3.6 230Vac
kg 3.8 48Vdc
kg 5.6 230Vac
kg 5.4 48Vdc
Black
3 cable glands, 2 connectors
3 cable glands, 2 connectors
