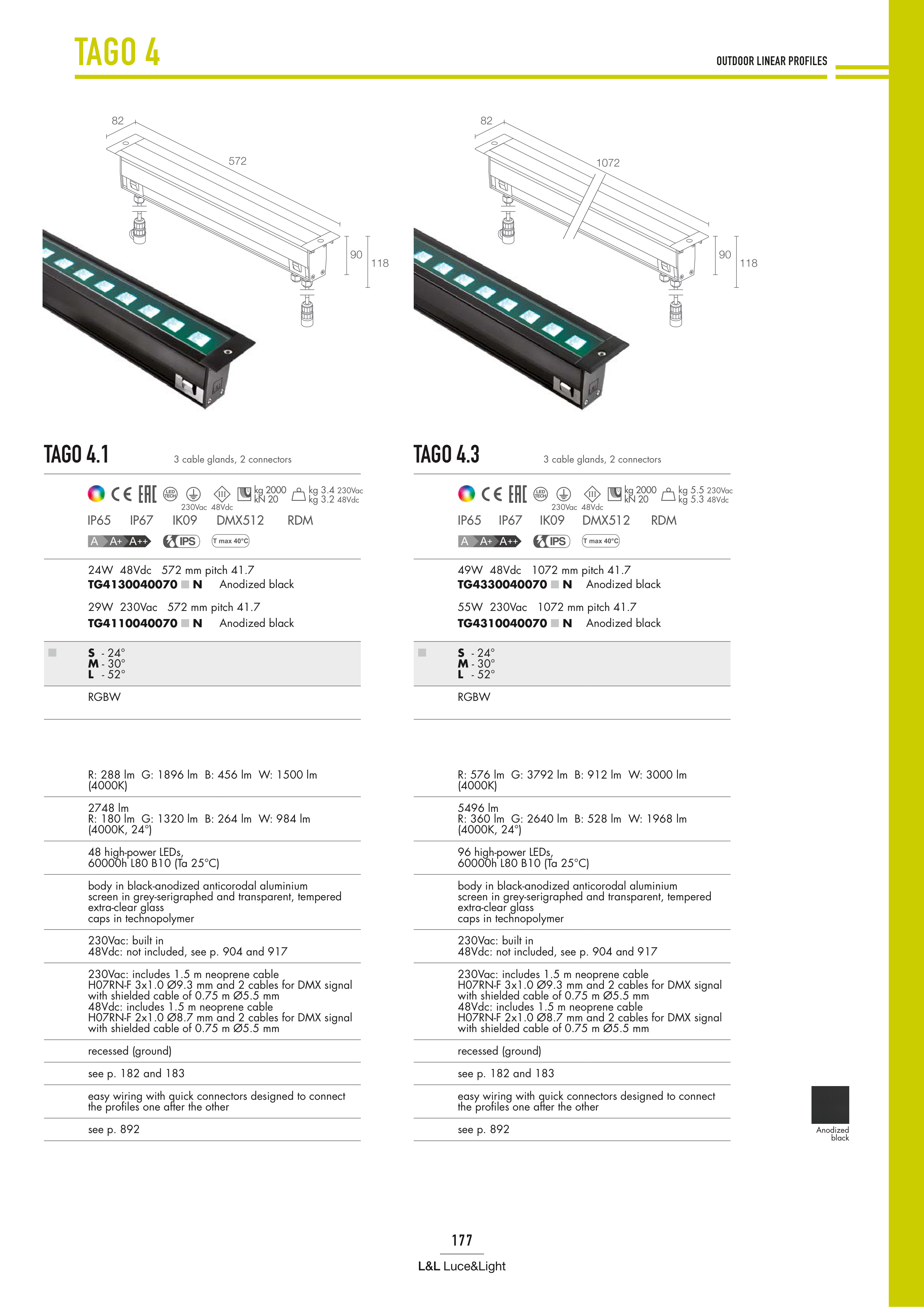

TAGO 4
TAGO 4.1
TAGO 4.3
DMX512
DMX512
RDM
RDM
IP65
IP65
IP67
IP67
IK09
IK09
kg 5.5 230Vac
kg 5.3 48Vdc
kg 3.4 230Vac
kg 3.2 48Vdc
230Vac
230Vac
48Vdc
48Vdc
572
90 118
82
1072
90 118
82
kg 2000
kN 20
kg 2000
kN 20
OUTDOOR LINEAR PROFILES
24W 48Vdc 572 mm pitch 41.7
TG4130040070 N
Anodized black
29W 230Vac 572 mm pitch 41.7
TG4110040070 N
Anodized black
S - 24°
M - 30°
L - 52°
RGBW
R: 288 lm G: 1896 lm B: 456 lm W: 1500 lm
(4000K)
2748 lm
R: 180 lm G: 1320 lm B: 264 lm W: 984 lm
(4000K, 24°)
48 high-power LEDs,
60000h L80 B10 (Ta 25°C)
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent, tempered
extra-clear glass
caps in technopolymer
230Vac: built in
48Vdc: not included, see p. 904 and 917
230Vac: includes 1.5 m neoprene cable
H07RN-F 3x1.0 Ø9.3 mm and 2 cables for DMX signal
with shielded cable of 0.75 m Ø5.5 mm
48Vdc: includes 1.5 m neoprene cable
H07RN-F 2x1.0 Ø8.7 mm and 2 cables for DMX signal
with shielded cable of 0.75 m Ø5.5 mm
recessed (ground)
see p. 182 and 183
easy wiring with quick connectors designed to connect
the profiles one after the other
see p. 892
49W 48Vdc 1072 mm pitch 41.7
TG4330040070 N
Anodized black
55W 230Vac 1072 mm pitch 41.7
TG4310040070 N
Anodized black
S - 24°
M - 30°
L - 52°
RGBW
R: 576 lm G: 3792 lm B: 912 lm W: 3000 lm
(4000K)
5496 lm
R: 360 lm G: 2640 lm B: 528 lm W: 1968 lm
(4000K, 24°)
96 high-power LEDs,
60000h L80 B10 (Ta 25°C)
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent, tempered
extra-clear glass
caps in technopolymer
230Vac: built in
48Vdc: not included, see p. 904 and 917
230Vac: includes 1.5 m neoprene cable
H07RN-F 3x1.0 Ø9.3 mm and 2 cables for DMX signal
with shielded cable of 0.75 m Ø5.5 mm
48Vdc: includes 1.5 m neoprene cable
H07RN-F 2x1.0 Ø8.7 mm and 2 cables for DMX signal
with shielded cable of 0.75 m Ø5.5 mm
recessed (ground)
see p. 182 and 183
easy wiring with quick connectors designed to connect
the profiles one after the other
see p. 892
3 cable glands, 2 connectors
3 cable glands, 2 connectors
Anodized
black
