175
74
536
149
220°
74
1036
149
220°

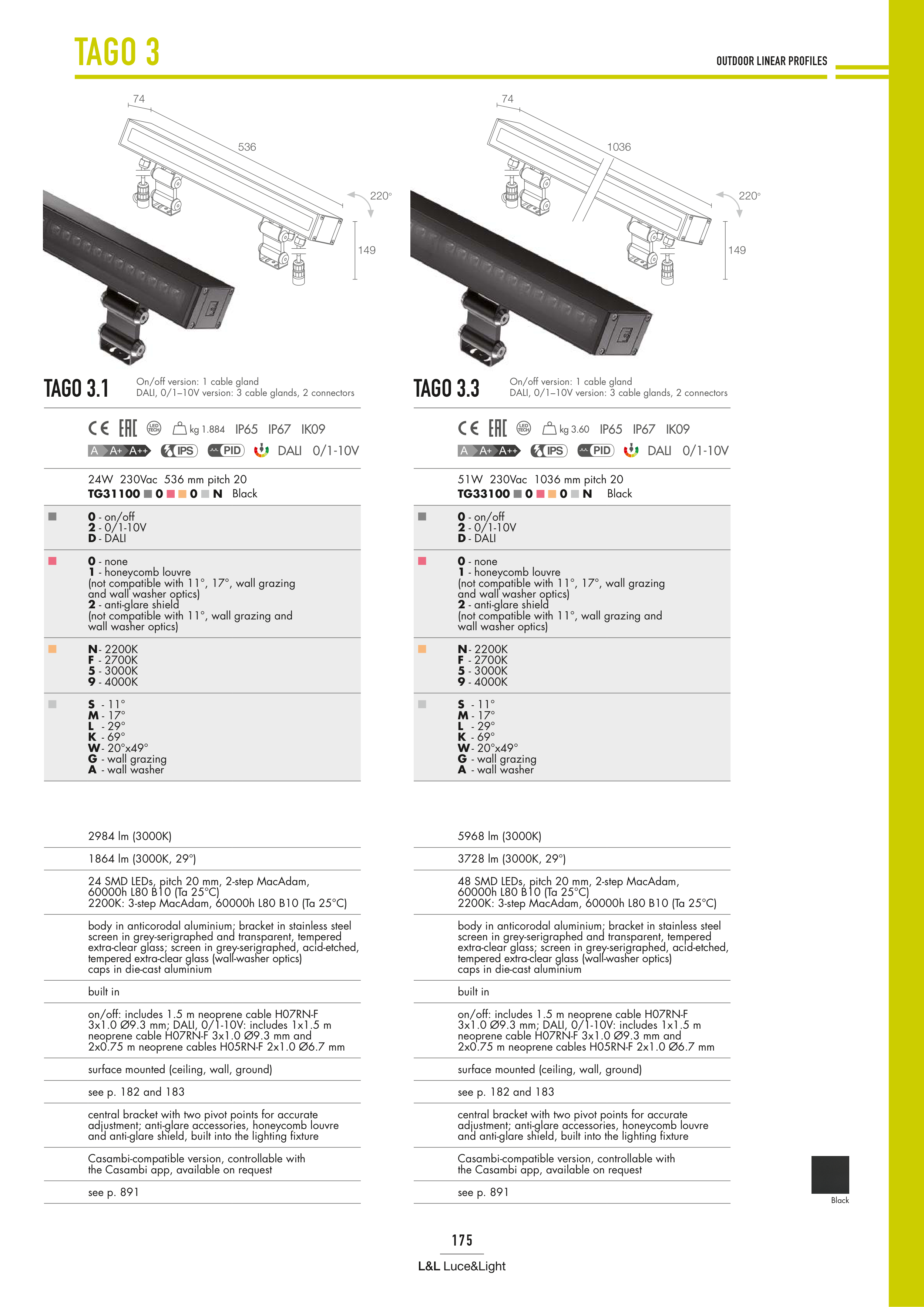

TAGO 3
DALI
DALI
0/1-10V
0/1-10V
IP65
IP65
IP67
IP67
IK09
IK09
TAGO 3.1
TAGO 3.3
OUTDOOR LINEAR PROFILES
24W 230Vac 536 mm pitch 20
TG31100 0 0 N
Black
0 - on/off
2 - 0/1-10V
D - DALI
0 - none
1 - honeycomb louvre
(not compatible with 11°, 17°, wall grazing
and wall washer optics)
2 - anti-glare shield
(not compatible with 11°, wall grazing and
wall washer optics)
N - 2200K
F - 2700K
5 - 3000K
9 - 4000K
S - 11°
M - 17°
L - 29°
K - 69°
W - 20°x49°
G - wall grazing
A - wall washer
2984 lm (3000K)
1864 lm (3000K, 29°)
24 SMD LEDs, pitch 20 mm, 2-step MacAdam,
60000h L80 B10 (Ta 25°C)
2200K: 3-step MacAdam, 60000h L80 B10 (Ta 25°C)
body in anticorodal aluminium; bracket in stainless steel
screen in grey-serigraphed and transparent, tempered
extra-clear glass; screen in grey-serigraphed, acid-etched,
tempered extra-clear glass (wall-washer optics)
caps in die-cast aluminium
built in
on/off: includes 1.5 m neoprene cable H07RN-F
3x1.0 Ø9.3 mm; DALI, 0/1-10V: includes 1x1.5 m
neoprene cable H07RN-F 3x1.0 Ø9.3 mm and
2x0.75 m neoprene cables H05RN-F 2x1.0 Ø6.7 mm
surface mounted (ceiling, wall, ground)
see p. 182 and 183
central bracket with two pivot points for accurate
adjustment; anti-glare accessories, honeycomb louvre
and anti-glare shield, built into the lighting fixture
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 891
51W 230Vac 1036 mm pitch 20
TG33100 0 0 N
Black
0 - on/off
2 - 0/1-10V
D - DALI
0 - none
1 - honeycomb louvre
(not compatible with 11°, 17°, wall grazing
and wall washer optics)
2 - anti-glare shield
(not compatible with 11°, wall grazing and
wall washer optics)
N - 2200K
F - 2700K
5 - 3000K
9 - 4000K
S - 11°
M - 17°
L - 29°
K - 69°
W - 20°x49°
G - wall grazing
A - wall washer
5968 lm (3000K)
3728 lm (3000K, 29°)
48 SMD LEDs, pitch 20 mm, 2-step MacAdam,
60000h L80 B10 (Ta 25°C)
2200K: 3-step MacAdam, 60000h L80 B10 (Ta 25°C)
body in anticorodal aluminium; bracket in stainless steel
screen in grey-serigraphed and transparent, tempered
extra-clear glass; screen in grey-serigraphed, acid-etched,
tempered extra-clear glass (wall-washer optics)
caps in die-cast aluminium
built in
on/off: includes 1.5 m neoprene cable H07RN-F
3x1.0 Ø9.3 mm; DALI, 0/1-10V: includes 1x1.5 m
neoprene cable H07RN-F 3x1.0 Ø9.3 mm and
2x0.75 m neoprene cables H05RN-F 2x1.0 Ø6.7 mm
surface mounted (ceiling, wall, ground)
see p. 182 and 183
central bracket with two pivot points for accurate
adjustment; anti-glare accessories, honeycomb louvre
and anti-glare shield, built into the lighting fixture
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 891
kg 1.884
kg 3.60
On/off version: 1 cable gland
DALI, 0/1–10V version: 3 cable glands, 2 connectors
On/off version: 1 cable gland
DALI, 0/1–10V version: 3 cable glands, 2 connectors
