L&L Luce&Light
L&L Luce&Light
163
162

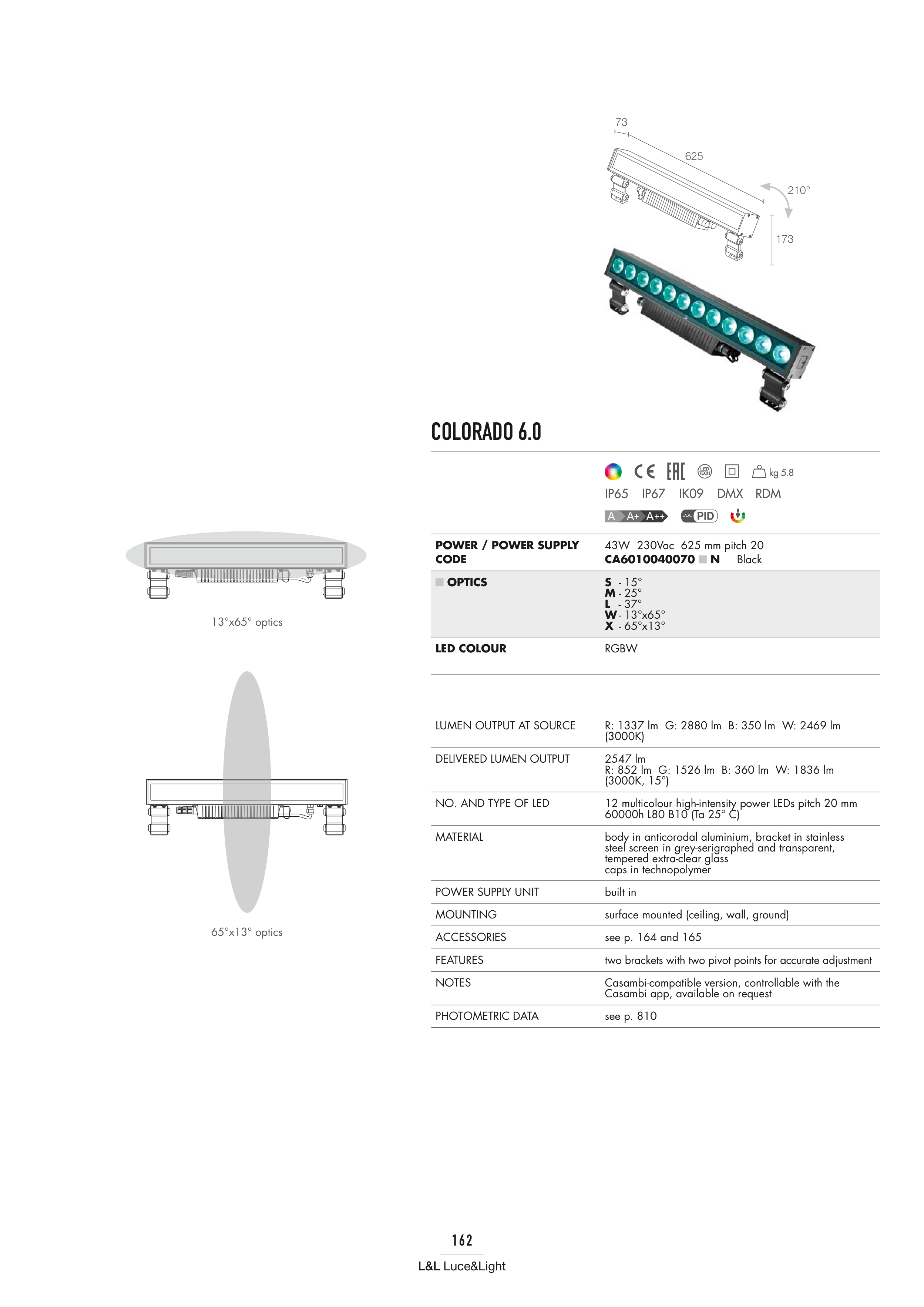

COLORADO 6.0
625
173
73
210°
IP65
IP67
IK09
DMX
RDM
13°x65° optics
65°x13° optics
POWER / POWER SUPPLY
CODE
43W 230Vac 625 mm pitch 20
CA6010040070 N
Black
OPTICS
S - 15°
M - 25°
L - 37°
W - 13°x65°
X - 65°x13°
LED COLOUR
RGBW
LUMEN OUTPUT AT SOURCE
R: 1337 lm G: 2880 lm B: 350 lm W: 2469 lm
(3000K)
DELIVERED LUMEN OUTPUT
2547 lm
R: 852 lm G: 1526 lm B: 360 lm W: 1836 lm
(3000K, 15°)
NO. AND TYPE OF LED
12 multicolour high-intensity power LEDs pitch 20 mm
60000h L80 B10 (Ta 25° C)
MATERIAL
body in anticorodal aluminium, bracket in stainless
steel screen in grey-serigraphed and transparent,
tempered extra-clear glass
caps in technopolymer
POWER SUPPLY UNIT
built in
MOUNTING
surface mounted (ceiling, wall, ground)
ACCESSORIES
see p. 164 and 165
FEATURES
two brackets with two pivot points for accurate adjustment
NOTES
Casambi-compatible version, controllable with the
Casambi app, available on request
PHOTOMETRIC DATA
see p. 810
kg 5.8
