161
160

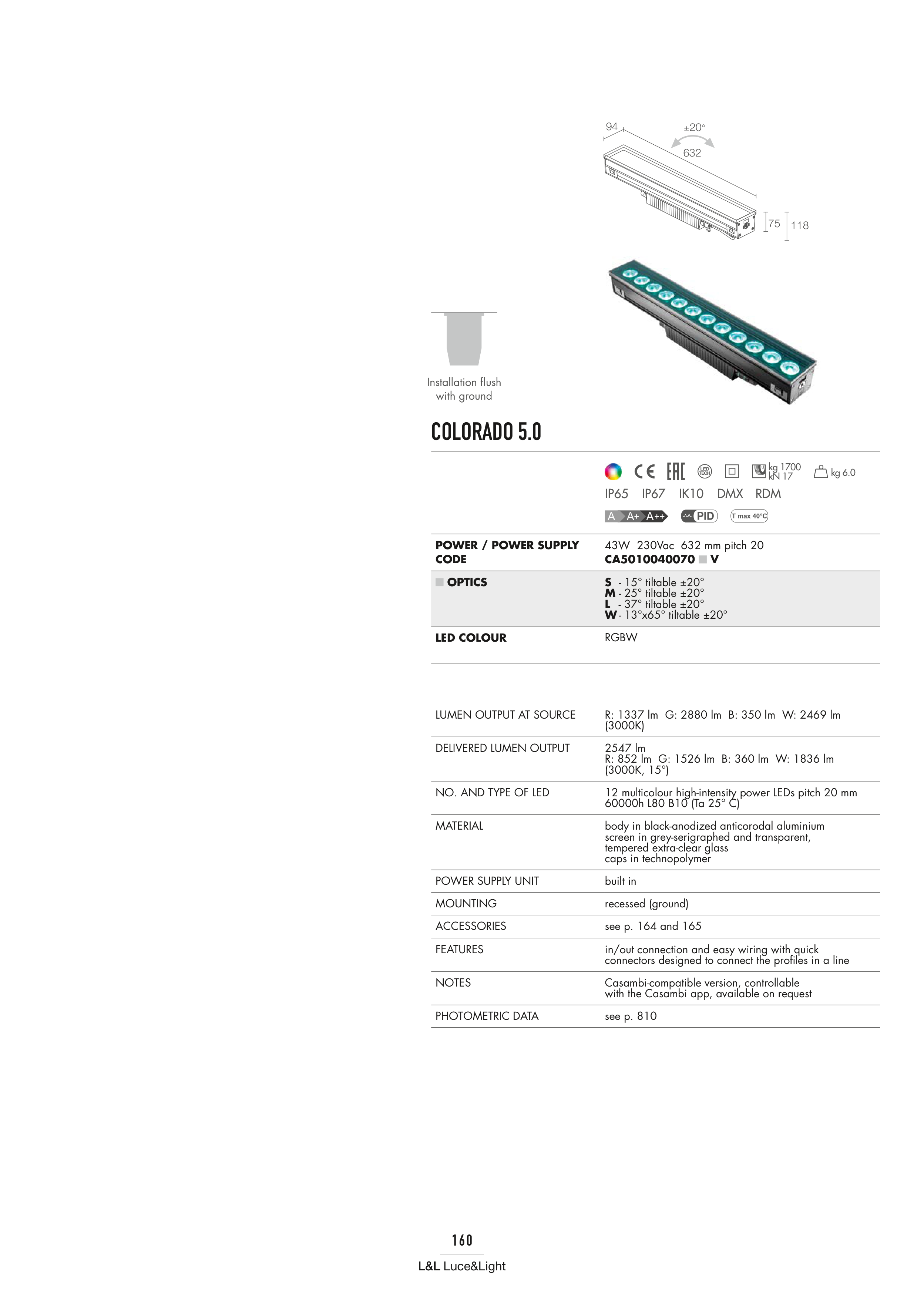

COLORADO 5.0
IP65
IP67
IK10
kg 1700
kN 17
DMX
RDM
632
118
94
75
±20°
POWER / POWER SUPPLY
CODE
43W 230Vac 632 mm pitch 20
CA5010040070 V
OPTICS
S - 15° tiltable ±20°
M - 25° tiltable ±20°
L - 37° tiltable ±20°
W - 13°x65° tiltable ±20°
LED COLOUR
RGBW
LUMEN OUTPUT AT SOURCE
R: 1337 lm G: 2880 lm B: 350 lm W: 2469 lm
(3000K)
DELIVERED LUMEN OUTPUT
2547 lm
R: 852 lm G: 1526 lm B: 360 lm W: 1836 lm
(3000K, 15°)
NO. AND TYPE OF LED
12 multicolour high-intensity power LEDs pitch 20 mm
60000h L80 B10 (Ta 25° C)
MATERIAL
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent,
tempered extra-clear glass
caps in technopolymer
POWER SUPPLY UNIT
built in
MOUNTING
recessed (ground)
ACCESSORIES
see p. 164 and 165
FEATURES
in/out connection and easy wiring with quick
connectors designed to connect the profiles in a line
NOTES
Casambi-compatible version, controllable
with the Casambi app, available on request
PHOTOMETRIC DATA
see p. 810
kg 6.0
Installation flush
with ground
