L&L Luce&Light
L&L Luce&Light
159
158

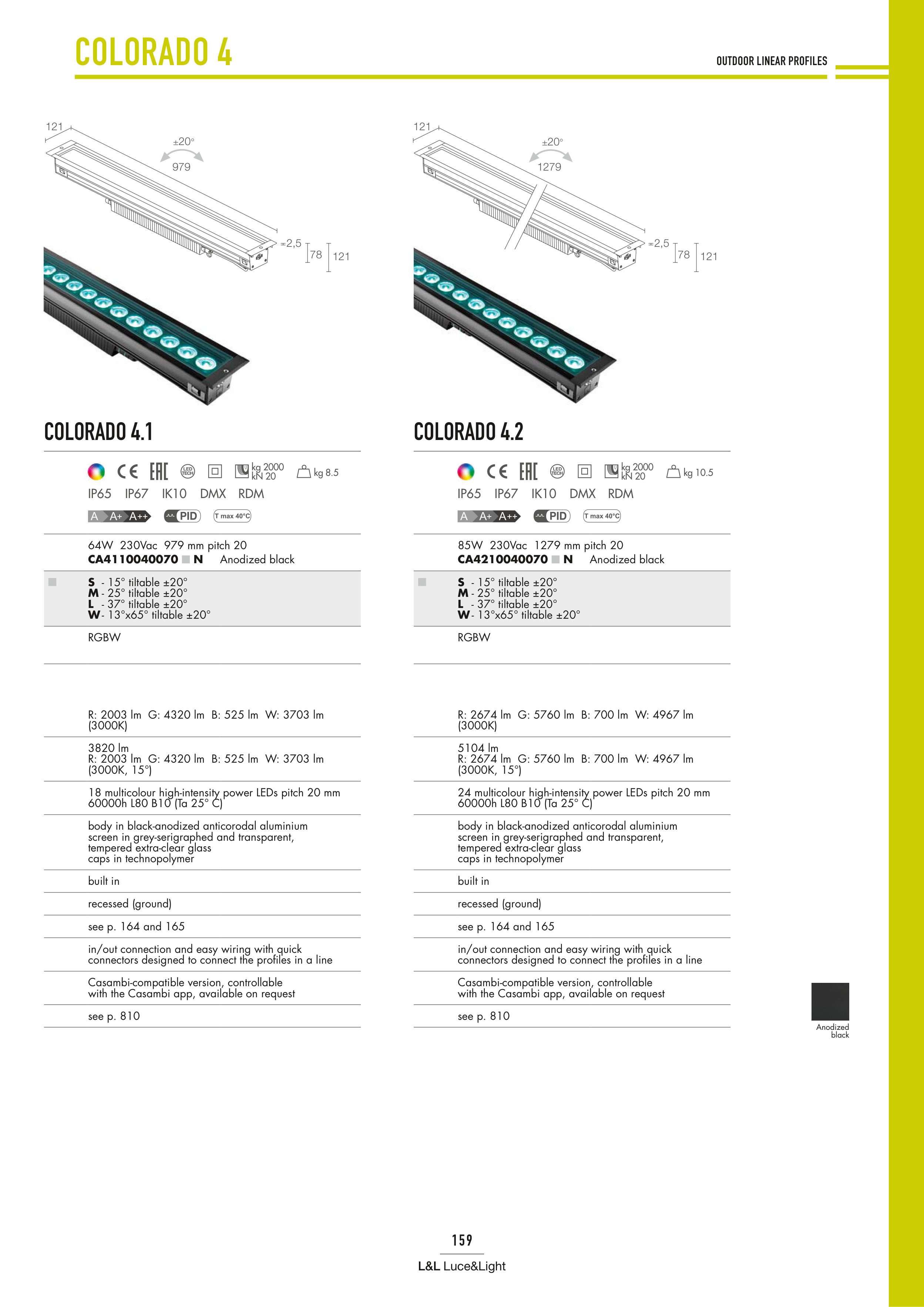

COLORADO 4
IP65
IP65
IP67
IP67
IK10
IK10
COLORADO 4.1
COLORADO 4.2
kg 2000
kN 20
kg 2000
kN 20
DMX
DMX
RDM
RDM
979
2,5
121
121
78
±20°
1279
2,5
121
121
78
±20°
OUTDOOR LINEAR PROFILES
64W 230Vac 979 mm pitch 20
CA4110040070 N
Anodized black
S - 15° tiltable ±20°
M - 25° tiltable ±20°
L - 37° tiltable ±20°
W - 13°x65° tiltable ±20°
RGBW
R: 2003 lm G: 4320 lm B: 525 lm W: 3703 lm
(3000K)
3820 lm
R: 2003 lm G: 4320 lm B: 525 lm W: 3703 lm
(3000K, 15°)
18 multicolour high-intensity power LEDs pitch 20 mm
60000h L80 B10 (Ta 25° C)
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent,
tempered extra-clear glass
caps in technopolymer
built in
recessed (ground)
see p. 164 and 165
in/out connection and easy wiring with quick
connectors designed to connect the profiles in a line
Casambi-compatible version, controllable
with the Casambi app, available on request
see p. 810
85W 230Vac 1279 mm pitch 20
CA4210040070 N
Anodized black
S - 15° tiltable ±20°
M - 25° tiltable ±20°
L - 37° tiltable ±20°
W - 13°x65° tiltable ±20°
RGBW
R: 2674 lm G: 5760 lm B: 700 lm W: 4967 lm
(3000K)
5104 lm
R: 2674 lm G: 5760 lm B: 700 lm W: 4967 lm
(3000K, 15°)
24 multicolour high-intensity power LEDs pitch 20 mm
60000h L80 B10 (Ta 25° C)
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent,
tempered extra-clear glass
caps in technopolymer
built in
recessed (ground)
see p. 164 and 165
in/out connection and easy wiring with quick
connectors designed to connect the profiles in a line
Casambi-compatible version, controllable
with the Casambi app, available on request
see p. 810
kg 8.5
kg 10.5
Anodized
black
