155
154

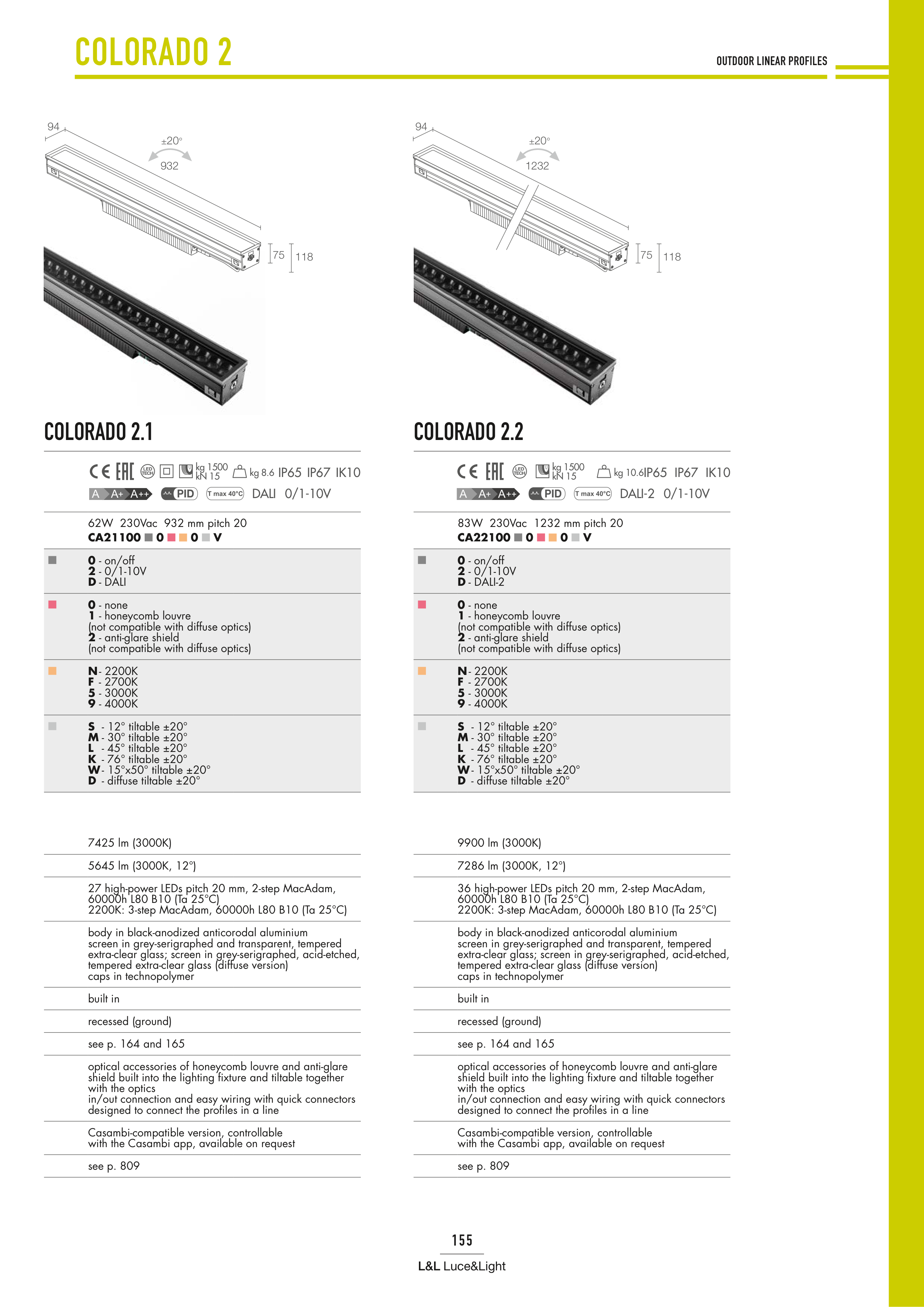

COLORADO 2
IP65
IP65
IP67
IP67
IK10
IK10
COLORADO 2.1
COLORADO 2.2
kg 1500
kN 15
kg 1500
kN 15
±20°
932
118
94
75
±20°
1232
118
94
75
DALI-2
DALI 0/1-10V
0/1-10V
OUTDOOR LINEAR PROFILES
62W 230Vac 932 mm pitch 20
CA21100 0 0 V
0 - on/off
2 - 0/1-10V
D - DALI
0 - none
1 - honeycomb louvre
(not compatible with diffuse optics)
2 - anti-glare shield
(not compatible with diffuse optics)
N - 2200K
F - 2700K
5 - 3000K
9 - 4000K
S - 12° tiltable ±20°
M - 30° tiltable ±20°
L - 45° tiltable ±20°
K - 76° tiltable ±20°
W - 15°x50° tiltable ±20°
D - diffuse tiltable ±20°
7425 lm (3000K)
5645 lm (3000K, 12°)
27 high-power LEDs pitch 20 mm, 2-step MacAdam,
60000h L80 B10 (Ta 25°C)
2200K: 3-step MacAdam, 60000h L80 B10 (Ta 25°C)
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent, tempered
extra-clear glass; screen in grey-serigraphed, acid-etched,
tempered extra-clear glass (diffuse version)
caps in technopolymer
built in
recessed (ground)
see p. 164 and 165
optical accessories of honeycomb louvre and anti-glare
shield built into the lighting fixture and tiltable together
with the optics
in/out connection and easy wiring with quick connectors
designed to connect the profiles in a line
Casambi-compatible version, controllable
with the Casambi app, available on request
see p. 809
83W 230Vac 1232 mm pitch 20
CA22100 0 0 V
0 - on/off
2 - 0/1-10V
D - DALI-2
0 - none
1 - honeycomb louvre
(not compatible with diffuse optics)
2 - anti-glare shield
(not compatible with diffuse optics)
N - 2200K
F - 2700K
5 - 3000K
9 - 4000K
S - 12° tiltable ±20°
M - 30° tiltable ±20°
L - 45° tiltable ±20°
K - 76° tiltable ±20°
W - 15°x50° tiltable ±20°
D - diffuse tiltable ±20°
9900 lm (3000K)
7286 lm (3000K, 12°)
36 high-power LEDs pitch 20 mm, 2-step MacAdam,
60000h L80 B10 (Ta 25°C)
2200K: 3-step MacAdam, 60000h L80 B10 (Ta 25°C)
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent, tempered
extra-clear glass; screen in grey-serigraphed, acid-etched,
tempered extra-clear glass (diffuse version)
caps in technopolymer
built in
recessed (ground)
see p. 164 and 165
optical accessories of honeycomb louvre and anti-glare
shield built into the lighting fixture and tiltable together
with the optics
in/out connection and easy wiring with quick connectors
designed to connect the profiles in a line
Casambi-compatible version, controllable
with the Casambi app, available on request
see p. 809
kg 10.6
kg 8.6
