153
152
DALI-2
0/1-10V
±20°
679
2,5
121
78
121
IP65 IP67 IK10

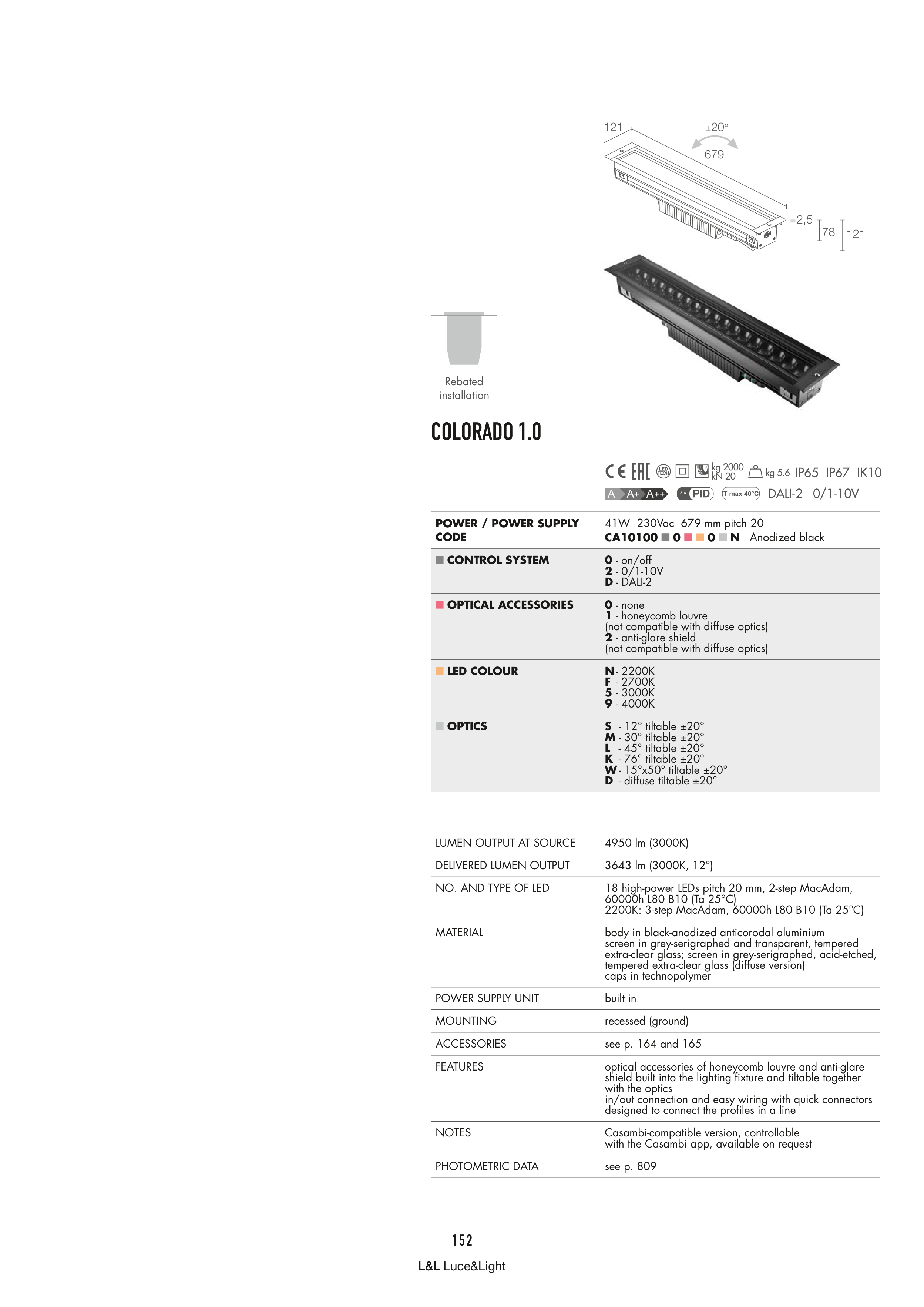

COLORADO 1.0
kg 2000
kN 20
POWER / POWER SUPPLY
CODE
41W 230Vac 679 mm pitch 20
CA10100 0 0 N
Anodized black
CONTROL SYSTEM
0 - on/off
2 - 0/1-10V
D - DALI-2
OPTICAL ACCESSORIES
0 - none
1 - honeycomb louvre
(not compatible with diffuse optics)
2 - anti-glare shield
(not compatible with diffuse optics)
LED COLOUR
N - 2200K
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 12° tiltable ±20°
M - 30° tiltable ±20°
L - 45° tiltable ±20°
K - 76° tiltable ±20°
W - 15°x50° tiltable ±20°
D - diffuse tiltable ±20°
LUMEN OUTPUT AT SOURCE
4950 lm (3000K)
DELIVERED LUMEN OUTPUT
3643 lm (3000K, 12°)
NO. AND TYPE OF LED
18 high-power LEDs pitch 20 mm, 2-step MacAdam,
60000h L80 B10 (Ta 25°C)
2200K: 3-step MacAdam, 60000h L80 B10 (Ta 25°C)
MATERIAL
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent, tempered
extra-clear glass; screen in grey-serigraphed, acid-etched,
tempered extra-clear glass (diffuse version)
caps in technopolymer
POWER SUPPLY UNIT
built in
MOUNTING
recessed (ground)
ACCESSORIES
see p. 164 and 165
FEATURES
optical accessories of honeycomb louvre and anti-glare
shield built into the lighting fixture and tiltable together
with the optics
in/out connection and easy wiring with quick connectors
designed to connect the profiles in a line
NOTES
Casambi-compatible version, controllable
with the Casambi app, available on request
PHOTOMETRIC DATA
see p. 809
kg 5.6
Rebated
installation
