IP67
53
2
Ø60
IK08

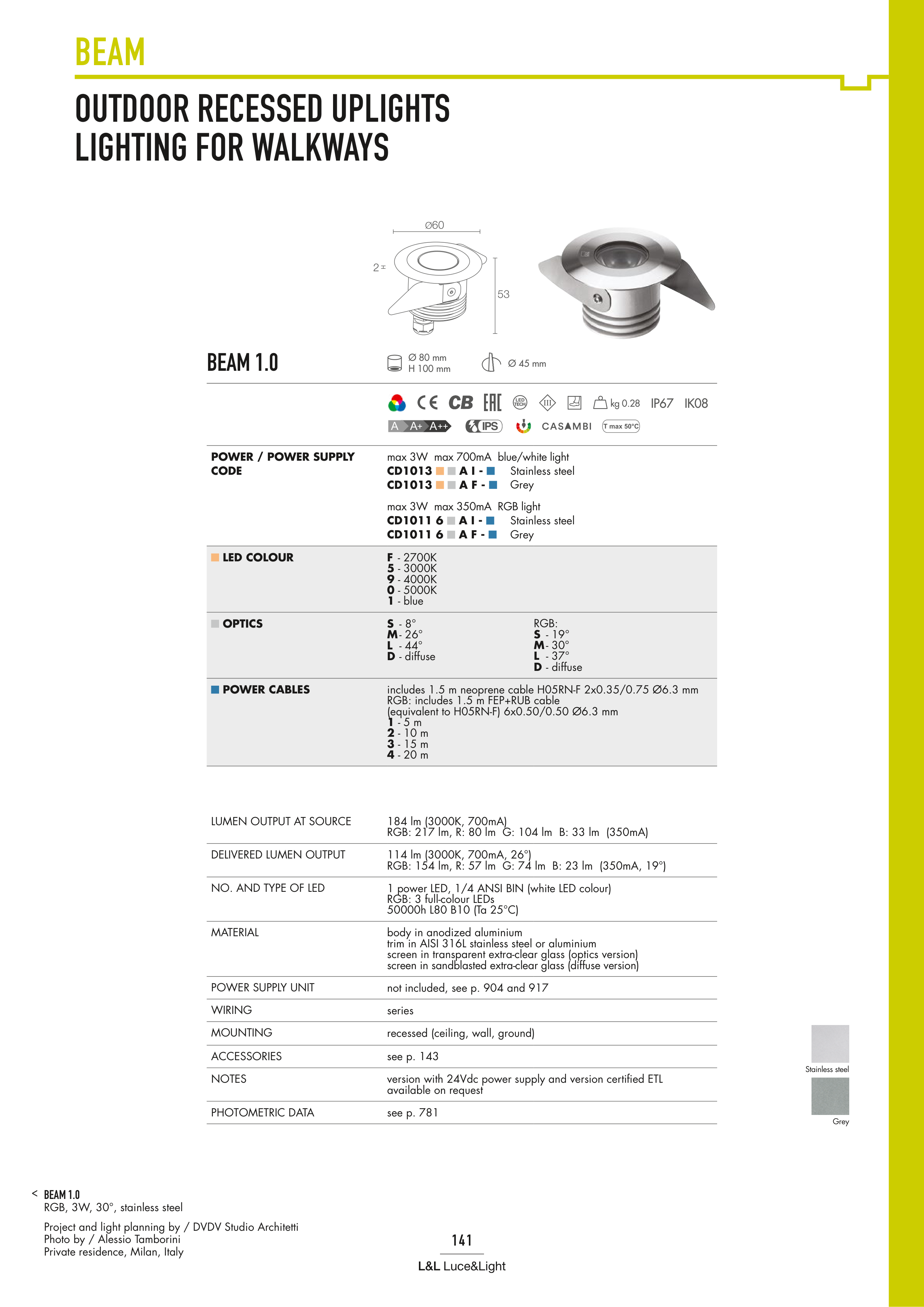

BEAM
BEAM 1.0
Ø 45 mm
Ø 80 mm
H 100 mm
L&L Luce&Light
141
POWER / POWER SUPPLY
CODE
max 3W max 700mA blue/white light
CD1013 A I -
CD1013 A F -
Stainless steel
Grey
max 3W max 350mA RGB light
CD1011 6 A I -
CD1011 6 A F -
Stainless steel
Grey
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
0 - 5000K
1 - blue
OPTICS
S - 8°
M - 26°
L - 44°
D - diffuse
RGB:
S - 19°
M - 30°
L - 37°
D - diffuse
POWER CABLES
includes 1.5 m neoprene cable H05RN-F 2x0.35/0.75 Ø6.3 mm
RGB: includes 1.5 m FEP+RUB cable
(equivalent to H05RN-F) 6x0.50/0.50 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
184 lm (3000K, 700mA)
RGB: 217 lm, R: 80 lm G: 104 lm B: 33 lm (350mA)
DELIVERED LUMEN OUTPUT
114 lm (3000K, 700mA, 26°)
RGB: 154 lm, R: 57 lm G: 74 lm B: 23 lm (350mA, 19°)
NO. AND TYPE OF LED
1 power LED, 1/4 ANSI BIN (white LED colour)
RGB: 3 full-colour LEDs
50000h L80 B10 (Ta 25°C)
MATERIAL
body in anodized aluminium
trim in AISI 316L stainless steel or aluminium
screen in transparent extra-clear glass (optics version)
screen in sandblasted extra-clear glass (diffuse version)
POWER SUPPLY UNIT
not included, see p. 904 and 917
WIRING
series
MOUNTING
recessed (ceiling, wall, ground)
ACCESSORIES
see p. 143
NOTES
version with 24Vdc power supply and version certified ETL
available on request
PHOTOMETRIC DATA
see p. 781
kg 0.28
BEAM 1.0
RGB, 3W, 30°, stainless steel
Project and light planning by / DVDV Studio Architetti
Photo by / Alessio Tamborini
Private residence, Milan, Italy
Stainless steel
Grey
OUTDOOR RECESSED UPLIGHTS
LIGHTING FOR WALKWAYS
