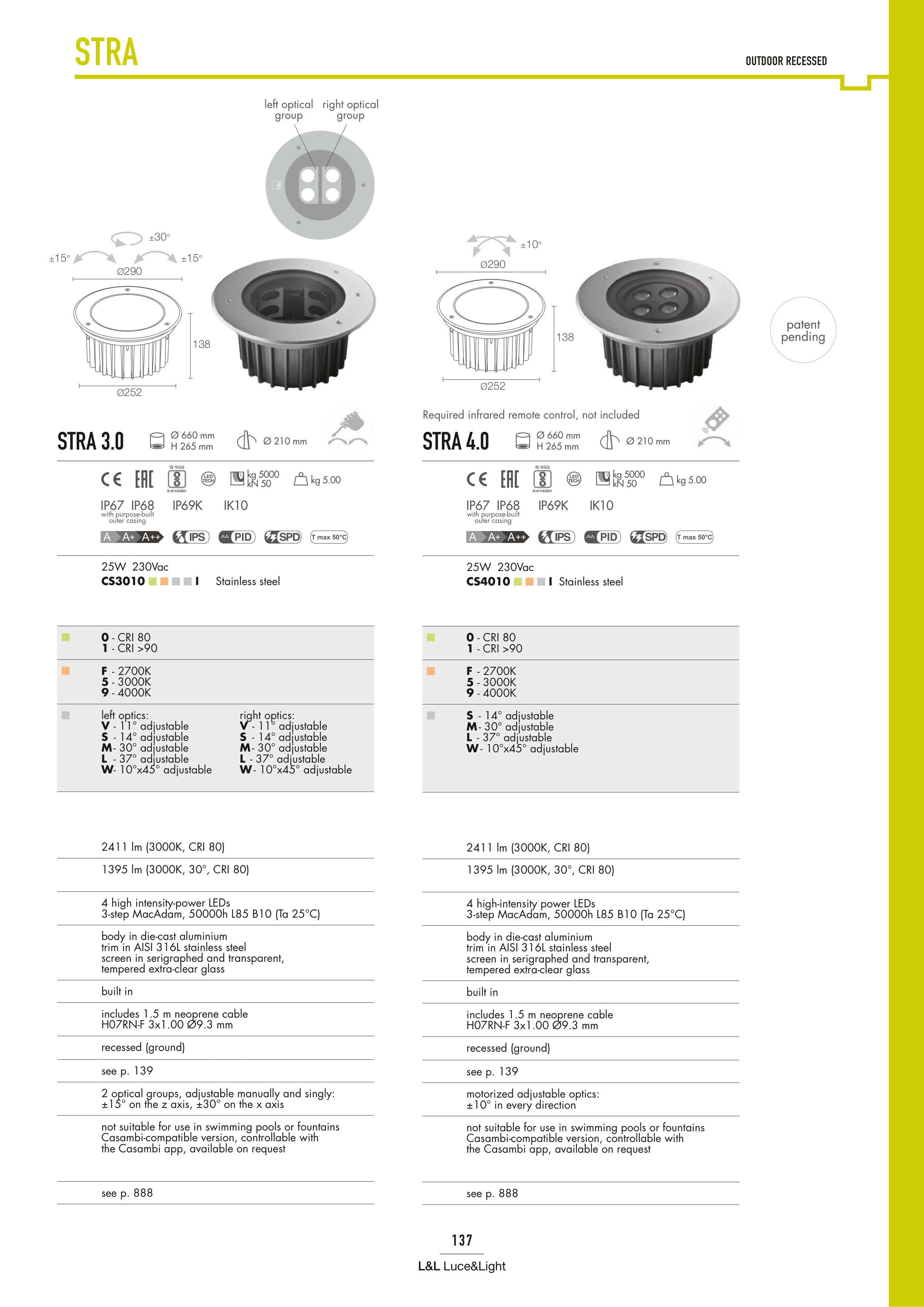

L&L Luce&Light
137
±15°
±15°
138
Ø290
Ø252
±30°
138
Ø290
Ø252
±10°
Ø 210 mm
Ø 660 mm
H 265 mm
Ø 210 mm
Ø 660 mm
H 265 mm
STRA
STRA 3.0
STRA 4.0
IP68
IP67
IP68
IP67
IP69K
IP69K
IK10
IK10
kg 5000
kN 50
kg 5000
kN 50
25W 230Vac
CS3010 I
Stainless steel
0 - CRI 80
1 - CRI >90
F - 2700K
5 - 3000K
9 - 4000K
left optics:
V - 11° adjustable
S - 14° adjustable
M - 30° adjustable
L - 37° adjustable
W - 10°x45° adjustable
right optics:
V - 11° adjustable
S - 14° adjustable
M - 30° adjustable
L - 37° adjustable
W - 10°x45° adjustable
2411 lm (3000K, CRI 80)
1395 lm (3000K, 30°, CRI 80)
4 high intensity-power LEDs
3-step MacAdam, 50000h L85 B10 (Ta 25°C)
body in die-cast aluminium
trim in AISI 316L stainless steel
screen in serigraphed and transparent,
tempered extra-clear glass
built in
includes 1.5 m neoprene cable
H07RN-F 3x1.00 Ø9.3 mm
recessed (ground)
see p. 139
2 optical groups, adjustable manually and singly:
±15° on the z axis, ±30° on the x axis
not suitable for use in swimming pools or fountains
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 888
25W 230Vac
CS4010 I Stainless steel
0 - CRI 80
1 - CRI >90
F - 2700K
5 - 3000K
9 - 4000K
S - 14° adjustable
M - 30° adjustable
L - 37° adjustable
W - 10°x45° adjustable
2411 lm (3000K, CRI 80)
1395 lm (3000K, 30°, CRI 80)
4 high-intensity power LEDs
3-step MacAdam, 50000h L85 B10 (Ta 25°C)
body in die-cast aluminium
trim in AISI 316L stainless steel
screen in serigraphed and transparent,
tempered extra-clear glass
built in
includes 1.5 m neoprene cable
H07RN-F 3x1.00 Ø9.3 mm
recessed (ground)
see p. 139
motorized adjustable optics:
±10° in every direction
not suitable for use in swimming pools or fountains
Casambi-compatible version, controllable with
the Casambi app, available on request
see p. 888
Required infrared remote control, not included
left optical
group
right optical
group
with purpose-built
outer casing
with purpose-built
outer casing
patent
pending
kg 5.00
kg 5.00
OUTDOOR RECESSED
