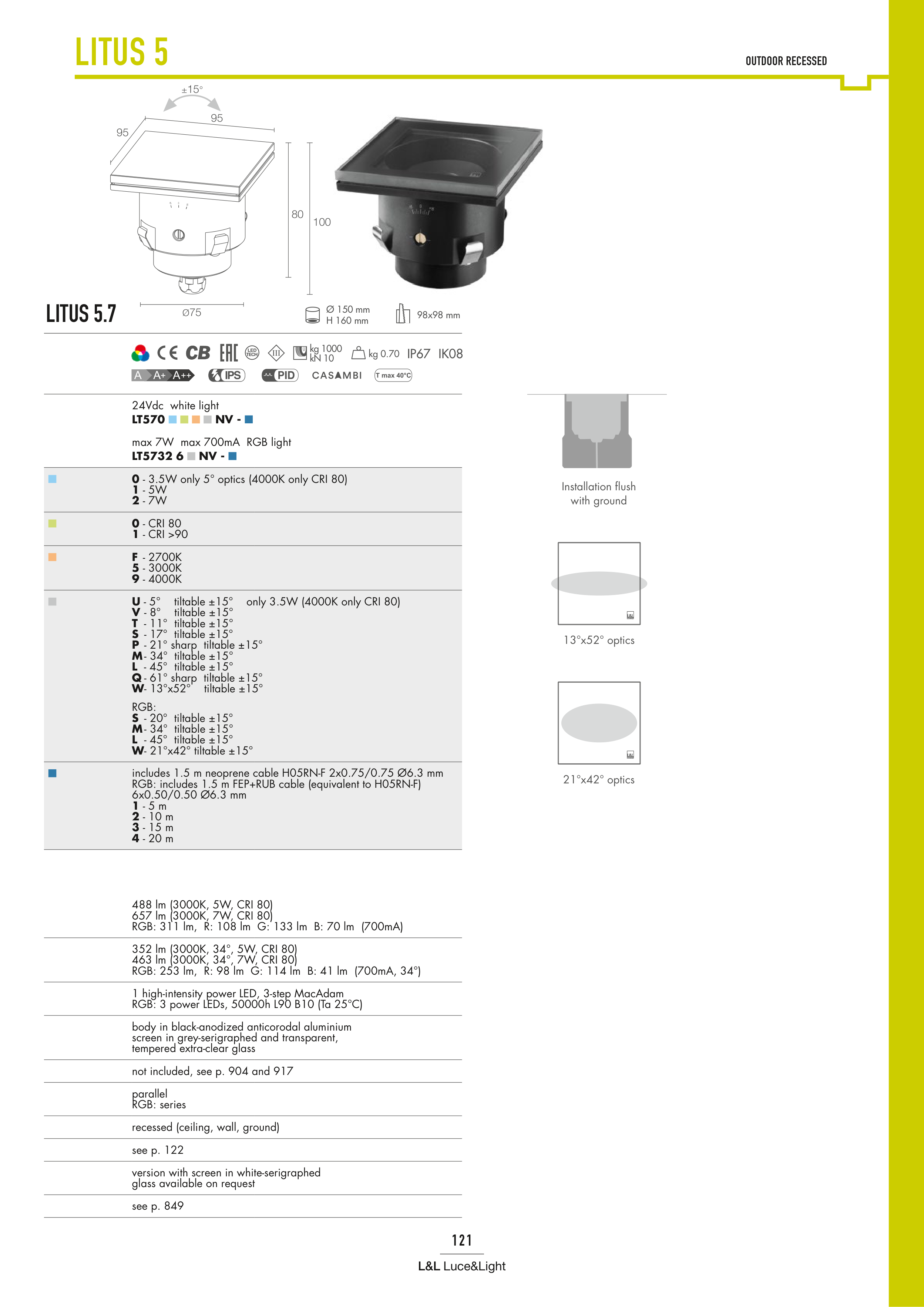

L&L Luce&Light
121
Ø 150 mm
H 160 mm
98x98 mm
IK08
IP67
LITUS 5.7
LITUS 5
kg 1000
kN 10
±15°
80
95
95
100
Ø75
24Vdc white light
LT570 NV -
max 7W max 700mA RGB light
LT5732 6 NV -
0 - 3.5W only 5° optics (4000K only CRI 80)
1 - 5W
2 - 7W
0 - CRI 80
1 - CRI >90
F - 2700K
5 - 3000K
9 - 4000K
U - 5° tiltable ±15° only 3.5W (4000K only CRI 80)
V - 8° tiltable ±15°
T - 11° tiltable ±15°
S - 17° tiltable ±15°
P - 21° sharp tiltable ±15°
M - 34° tiltable ±15°
L - 45° tiltable ±15°
Q - 61° sharp tiltable ±15°
W - 13°x52° tiltable ±15°
RGB:
S - 20° tiltable ±15°
M - 34° tiltable ±15°
L - 45° tiltable ±15°
W - 21°x42° tiltable ±15°
includes 1.5 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm
RGB: includes 1.5 m FEP+RUB cable (equivalent to H05RN-F)
6x0.50/0.50 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
488 lm (3000K, 5W, CRI 80)
657 lm (3000K, 7W, CRI 80)
RGB: 311 lm, R: 108 lm G: 133 lm B: 70 lm (700mA)
352 lm (3000K, 34°, 5W, CRI 80)
463 lm (3000K, 34°, 7W, CRI 80)
RGB: 253 lm, R: 98 lm G: 114 lm B: 41 lm (700mA, 34°)
1 high-intensity power LED, 3-step MacAdam
RGB: 3 power LEDs, 50000h L90 B10 (Ta 25°C)
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent,
tempered extra-clear glass
not included, see p. 904 and 917
parallel
RGB: series
recessed (ceiling, wall, ground)
see p. 122
version with screen in white-serigraphed
glass available on request
see p. 849
21°x42° optics
13°x52° optics
Installation flush
with ground
kg 0.70
OUTDOOR RECESSED
