L&L Luce&Light
117
IK08
IK08
IP67
IP67

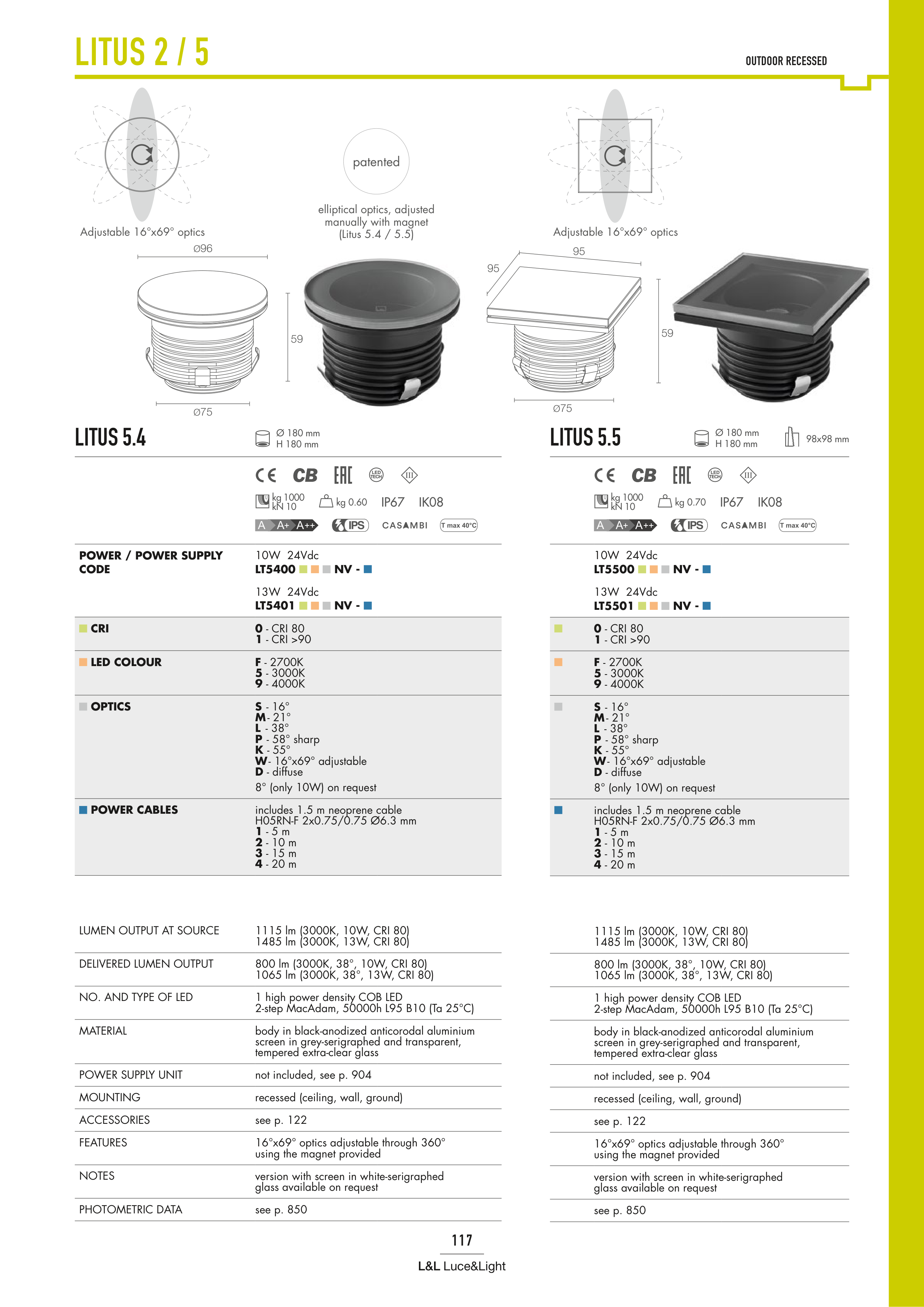

LITUS 5.4
LITUS 5.5
Ø 180 mm
H 180 mm
LITUS 2 / 5
Ø 180 mm
H 180 mm
98x98 mm
kg 1000
kN 10
kg 1000
kN 10
59
Ø75
Ø96
95
95
59
Ø75
kg 0.60
POWER / POWER SUPPLY
CODE
10W 24Vdc
LT5400 NV -
13W 24Vdc
LT5401 NV -
CRI
0 - CRI 80
1 - CRI >90
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 16°
M - 21°
L - 38°
P - 58° sharp
K - 55°
W - 16°x69° adjustable
D - diffuse
8° (only 10W) on request
POWER CABLES
includes 1.5 m neoprene cable
H05RN-F 2x0.75/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
1115 lm (3000K, 10W, CRI 80)
1485 lm (3000K, 13W, CRI 80)
DELIVERED LUMEN OUTPUT
800 lm (3000K, 38°, 10W, CRI 80)
1065 lm (3000K, 38°, 13W, CRI 80)
NO. AND TYPE OF LED
1 high power density COB LED
2-step MacAdam, 50000h L95 B10 (Ta 25°C)
MATERIAL
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
not included, see p. 904
MOUNTING
recessed (ceiling, wall, ground)
ACCESSORIES
see p. 122
FEATURES
16°x69° optics adjustable through 360°
using the magnet provided
NOTES
version with screen in white-serigraphed
glass available on request
PHOTOMETRIC DATA
see p. 850
10W 24Vdc
LT5500 NV -
13W 24Vdc
LT5501 NV -
0 - CRI 80
1 - CRI >90
F - 2700K
5 - 3000K
9 - 4000K
S - 16°
M - 21°
L - 38°
P - 58° sharp
K - 55°
W - 16°x69° adjustable
D - diffuse
8° (only 10W) on request
includes 1.5 m neoprene cable
H05RN-F 2x0.75/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
1115 lm (3000K, 10W, CRI 80)
1485 lm (3000K, 13W, CRI 80)
800 lm (3000K, 38°, 10W, CRI 80)
1065 lm (3000K, 38°, 13W, CRI 80)
1 high power density COB LED
2-step MacAdam, 50000h L95 B10 (Ta 25°C)
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent,
tempered extra-clear glass
not included, see p. 904
recessed (ceiling, wall, ground)
see p. 122
16°x69° optics adjustable through 360°
using the magnet provided
version with screen in white-serigraphed
glass available on request
see p. 850
Adjustable 16°x69° optics
elliptical optics, adjusted
manually with magnet
(Litus 5.4 / 5.5)
Adjustable 16°x69° optics
kg 0.70
patented
OUTDOOR RECESSED
