IK08
IK08
IP67
IP67

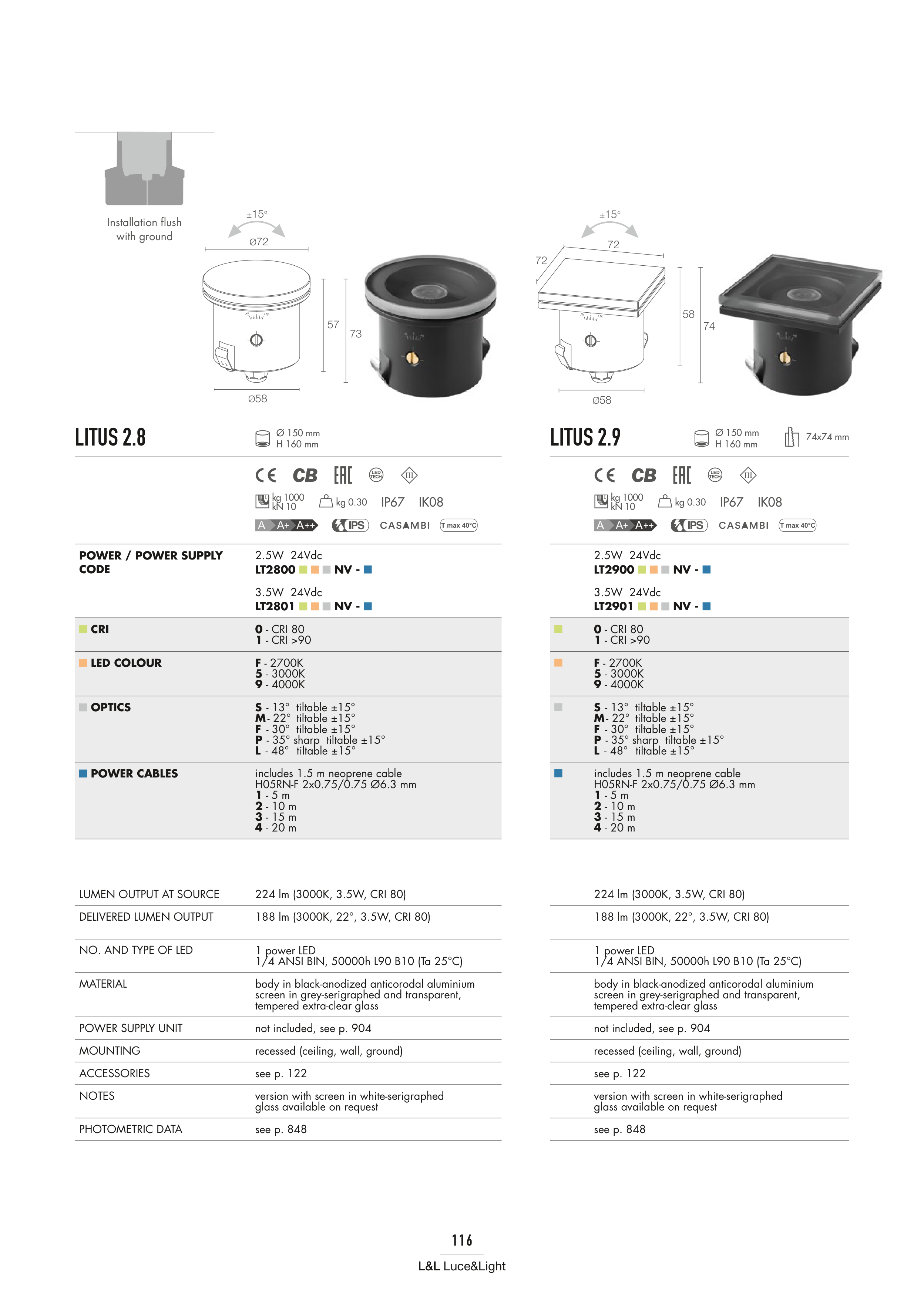

LITUS 2.8
LITUS 2.9
Ø 150 mm
H 160 mm
Ø 150 mm
H 160 mm
74x74 mm
kg 1000
kN 10
kg 1000
kN 10
72
58
72
±15°
Ø58
74
57
73
Ø72
±15°
Ø58
POWER / POWER SUPPLY
CODE
2.5W 24Vdc
LT2800 NV -
3.5W 24Vdc
LT2801 NV -
CRI
0 - CRI 80
1 - CRI >90
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
S - 13° tiltable ±15°
M - 22° tiltable ±15°
F - 30° tiltable ±15°
P - 35° sharp tiltable ±15°
L - 48° tiltable ±15°
POWER CABLES
includes 1.5 m neoprene cable
H05RN-F 2x0.75/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
224 lm (3000K, 3.5W, CRI 80)
DELIVERED LUMEN OUTPUT
188 lm (3000K, 22°, 3.5W, CRI 80)
NO. AND TYPE OF LED
1 power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
MATERIAL
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
not included, see p. 904
MOUNTING
recessed (ceiling, wall, ground)
ACCESSORIES
see p. 122
NOTES
version with screen in white-serigraphed
glass available on request
PHOTOMETRIC DATA
see p. 848
2.5W 24Vdc
LT2900 NV -
3.5W 24Vdc
LT2901 NV -
0 - CRI 80
1 - CRI >90
F - 2700K
5 - 3000K
9 - 4000K
S - 13° tiltable ±15°
M - 22° tiltable ±15°
F - 30° tiltable ±15°
P - 35° sharp tiltable ±15°
L - 48° tiltable ±15°
includes 1.5 m neoprene cable
H05RN-F 2x0.75/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
224 lm (3000K, 3.5W, CRI 80)
188 lm (3000K, 22°, 3.5W, CRI 80)
1 power LED
1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C)
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent,
tempered extra-clear glass
not included, see p. 904
recessed (ceiling, wall, ground)
see p. 122
version with screen in white-serigraphed
glass available on request
see p. 848
kg 0.30
kg 0.30
Installation flush
with ground
