74
57
Ø72
Ø58

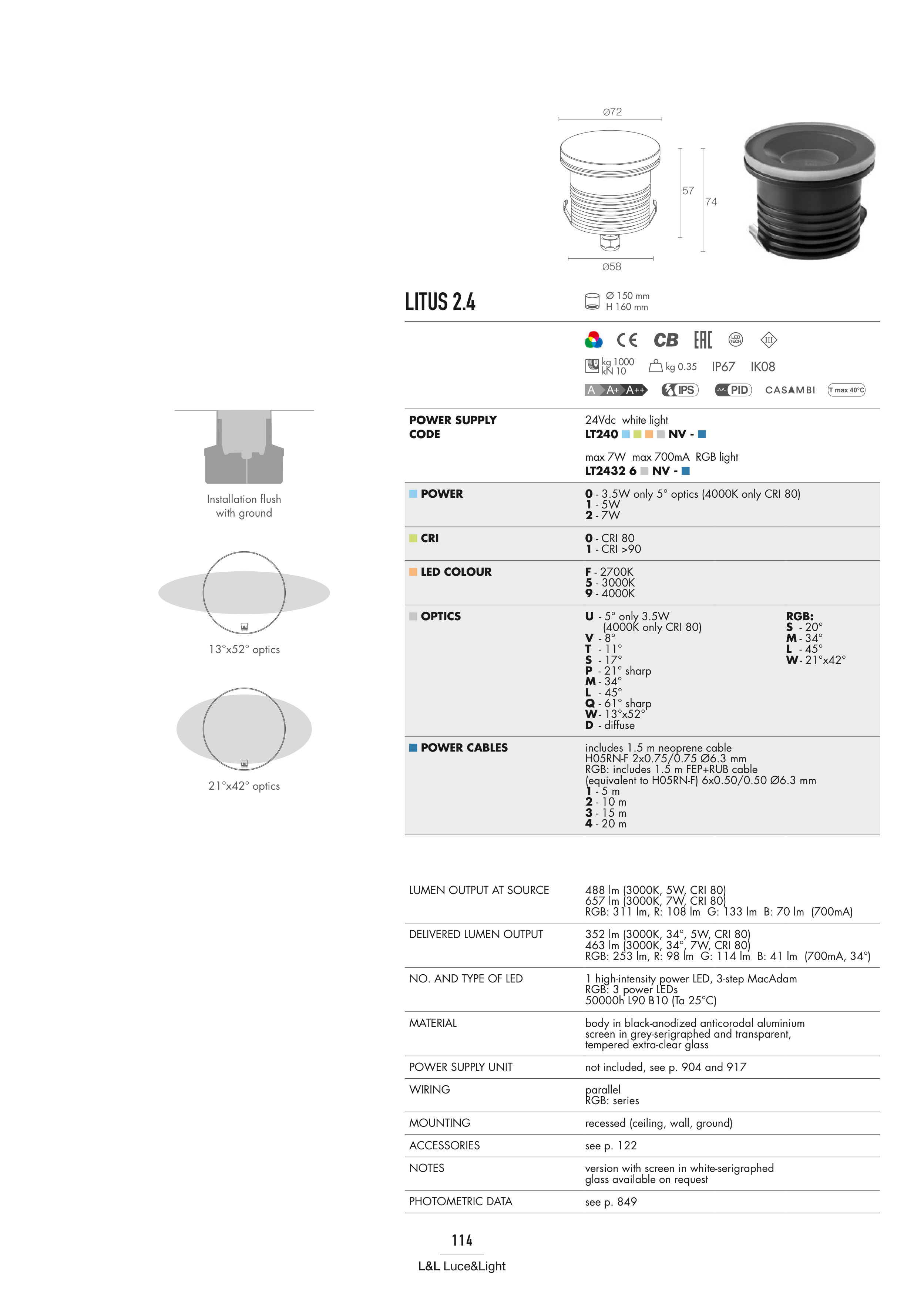

LITUS 2.4
Ø 150 mm
H 160 mm
kg 1000
kN 10
IK08
IP67
POWER SUPPLY
CODE
24Vdc white light
LT240 NV -
max 7W max 700mA RGB light
LT2432 6 NV -
POWER
0 - 3.5W only 5° optics (4000K only CRI 80)
1 - 5W
2 - 7W
CRI
0 - CRI 80
1 - CRI >90
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
U - 5° only 3.5W
(4000K only CRI 80)
V - 8°
T - 11°
S - 17°
P - 21° sharp
M - 34°
L - 45°
Q - 61° sharp
W - 13°x52°
D - diffuse
RGB:
S - 20°
M - 34°
L - 45°
W - 21°x42°
POWER CABLES
includes 1.5 m neoprene cable
H05RN-F 2x0.75/0.75 Ø6.3 mm
RGB: includes 1.5 m FEP+RUB cable
(equivalent to H05RN-F) 6x0.50/0.50 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
488 lm (3000K, 5W, CRI 80)
657 lm (3000K, 7W, CRI 80)
RGB: 311 lm, R: 108 lm G: 133 lm B: 70 lm (700mA)
DELIVERED LUMEN OUTPUT
352 lm (3000K, 34°, 5W, CRI 80)
463 lm (3000K, 34°, 7W, CRI 80)
RGB: 253 lm, R: 98 lm G: 114 lm B: 41 lm (700mA, 34°)
NO. AND TYPE OF LED
1 high-intensity power LED, 3-step MacAdam
RGB: 3 power LEDs
50000h L90 B10 (Ta 25°C)
MATERIAL
body in black-anodized anticorodal aluminium
screen in grey-serigraphed and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
not included, see p. 904 and 917
WIRING
parallel
RGB: series
MOUNTING
recessed (ceiling, wall, ground)
ACCESSORIES
see p. 122
NOTES
version with screen in white-serigraphed
glass available on request
PHOTOMETRIC DATA
see p. 849
21°x42° optics
13°x52° optics
Installation flush
with ground
kg 0.35
