L&L Luce&Light
104
Ø124
90
Ø148
3
Ø 125 mm
Ø 260 mm
H 150 mm
NTC
IP68
IP65
IP69K
IK10

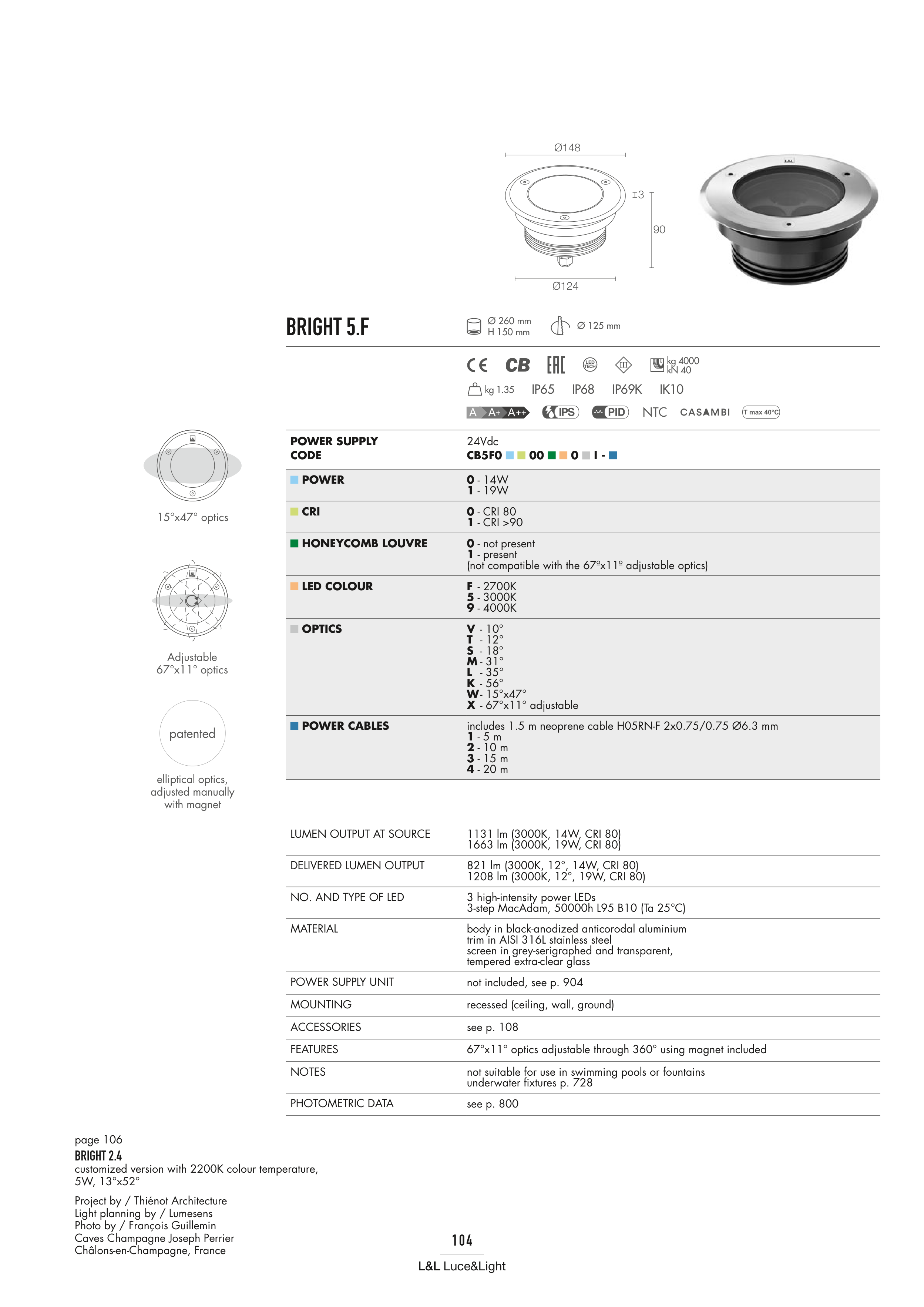

BRIGHT 5.F
kg 4000
kN 40
POWER SUPPLY
CODE
24Vdc
CB5F0 00 0 I -
POWER
0 - 14W
1 - 19W
CRI
0 - CRI 80
1 - CRI >90
HONEYCOMB LOUVRE
0 - not present
1 - present
(not compatible with the 67ºx11º adjustable optics)
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
V - 10°
T - 12°
S - 18°
M - 31°
L - 35°
K - 56°
W - 15°x47°
X - 67°x11° adjustable
POWER CABLES
includes 1.5 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
1131 lm (3000K, 14W, CRI 80)
1663 lm (3000K, 19W, CRI 80)
DELIVERED LUMEN OUTPUT
821 lm (3000K, 12°, 14W, CRI 80)
1208 lm (3000K, 12°, 19W, CRI 80)
NO. AND TYPE OF LED
3 high-intensity power LEDs
3-step MacAdam, 50000h L95 B10 (Ta 25°C)
MATERIAL
body in black-anodized anticorodal aluminium
trim in AISI 316L stainless steel
screen in grey-serigraphed and transparent,
tempered extra-clear glass
POWER SUPPLY UNIT
not included, see p. 904
MOUNTING
recessed (ceiling, wall, ground)
ACCESSORIES
see p. 108
FEATURES
67°x11° optics adjustable through 360° using magnet included
NOTES
not suitable for use in swimming pools or fountains
underwater fixtures p. 728
PHOTOMETRIC DATA
see p. 800
elliptical optics,
adjusted manually
with magnet
Adjustable
67°x11° optics
15°x47° optics
kg 1.35
page 106
BRIGHT 2.4
customized version with 2200K colour temperature,
5W, 13°x52°
Project by / Thiénot Architecture
Light planning by / Lumesens
Photo by / François Guillemin
Caves Champagne Joseph Perrier
Châlons-en-Champagne, France
patented
