65
15
47
Ø47
Ø85
2
Ø69
L&L Luce&Light
98
IP69K
IK10
IP68
IP65

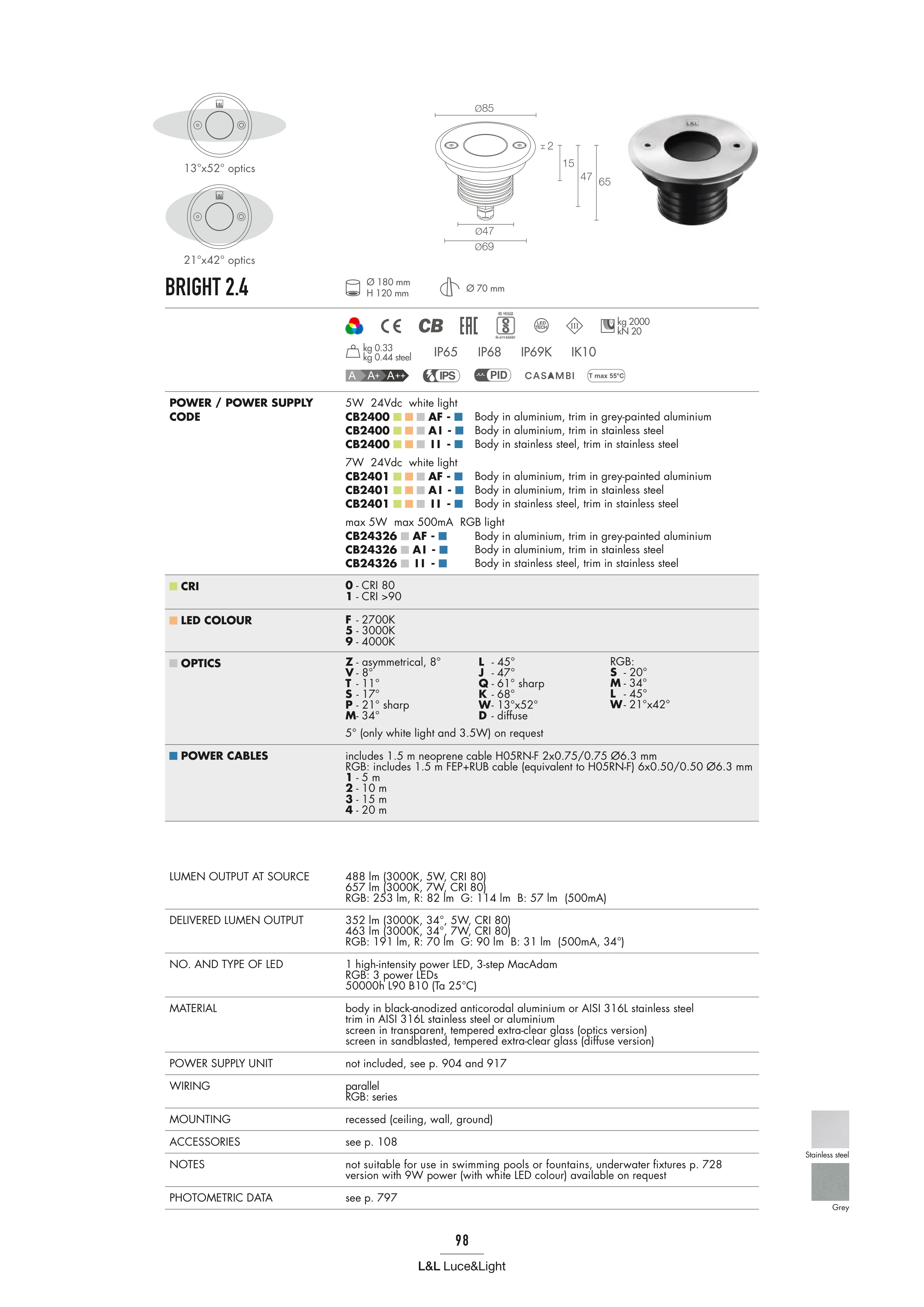

BRIGHT 2.4
Ø 70 mm
Ø 180 mm
H 120 mm
kg 2000
kN 20
POWER / POWER SUPPLY
CODE
5W 24Vdc white light
CB2400 AF -
CB2400 AI -
CB2400 I I -
Body in aluminium, trim in grey-painted aluminium
Body in aluminium, trim in stainless steel
Body in stainless steel, trim in stainless steel
7W 24Vdc white light
CB2401 AF -
CB2401 AI -
CB2401 I I -
Body in aluminium, trim in grey-painted aluminium
Body in aluminium, trim in stainless steel
Body in stainless steel, trim in stainless steel
max 5W max 500mA RGB light
CB24326 AF -
CB24326 AI -
CB24326 I I -
Body in aluminium, trim in grey-painted aluminium
Body in aluminium, trim in stainless steel
Body in stainless steel, trim in stainless steel
CRI
0 - CRI 80
1 - CRI >90
LED COLOUR
F - 2700K
5 - 3000K
9 - 4000K
OPTICS
Z - asymmetrical, 8°
V - 8°
T - 11°
S - 17°
P - 21° sharp
M - 34°
L - 45°
J - 47°
Q - 61° sharp
K - 68°
W - 13°x52°
D - diffuse
RGB:
S - 20°
M - 34°
L - 45°
W - 21°x42°
5° (only white light and 3.5W) on request
POWER CABLES
includes 1.5 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm
RGB: includes 1.5 m FEP+RUB cable (equivalent to H05RN-F) 6x0.50/0.50 Ø6.3 mm
1 - 5 m
2 - 10 m
3 - 15 m
4 - 20 m
LUMEN OUTPUT AT SOURCE
488 lm (3000K, 5W, CRI 80)
657 lm (3000K, 7W, CRI 80)
RGB: 253 lm, R: 82 lm G: 114 lm B: 57 lm (500mA)
DELIVERED LUMEN OUTPUT
352 lm (3000K, 34°, 5W, CRI 80)
463 lm (3000K, 34°, 7W, CRI 80)
RGB: 191 lm, R: 70 lm G: 90 lm B: 31 lm (500mA, 34°)
NO. AND TYPE OF LED
1 high-intensity power LED, 3-step MacAdam
RGB: 3 power LEDs
50000h L90 B10 (Ta 25°C)
MATERIAL
body in black-anodized anticorodal aluminium or AISI 316L stainless steel
trim in AISI 316L stainless steel or aluminium
screen in transparent, tempered extra-clear glass (optics version)
screen in sandblasted, tempered extra-clear glass (diffuse version)
POWER SUPPLY UNIT
not included, see p. 904 and 917
WIRING
parallel
RGB: series
MOUNTING
recessed (ceiling, wall, ground)
ACCESSORIES
see p. 108
NOTES
not suitable for use in swimming pools or fountains, underwater fixtures p. 728
version with 9W power (with white LED colour) available on request
PHOTOMETRIC DATA
see p. 797
Stainless steel
Grey
13°x52° optics
21°x42° optics
kg 0.33
kg 0.44 steel
