L&L Luce&Light
56

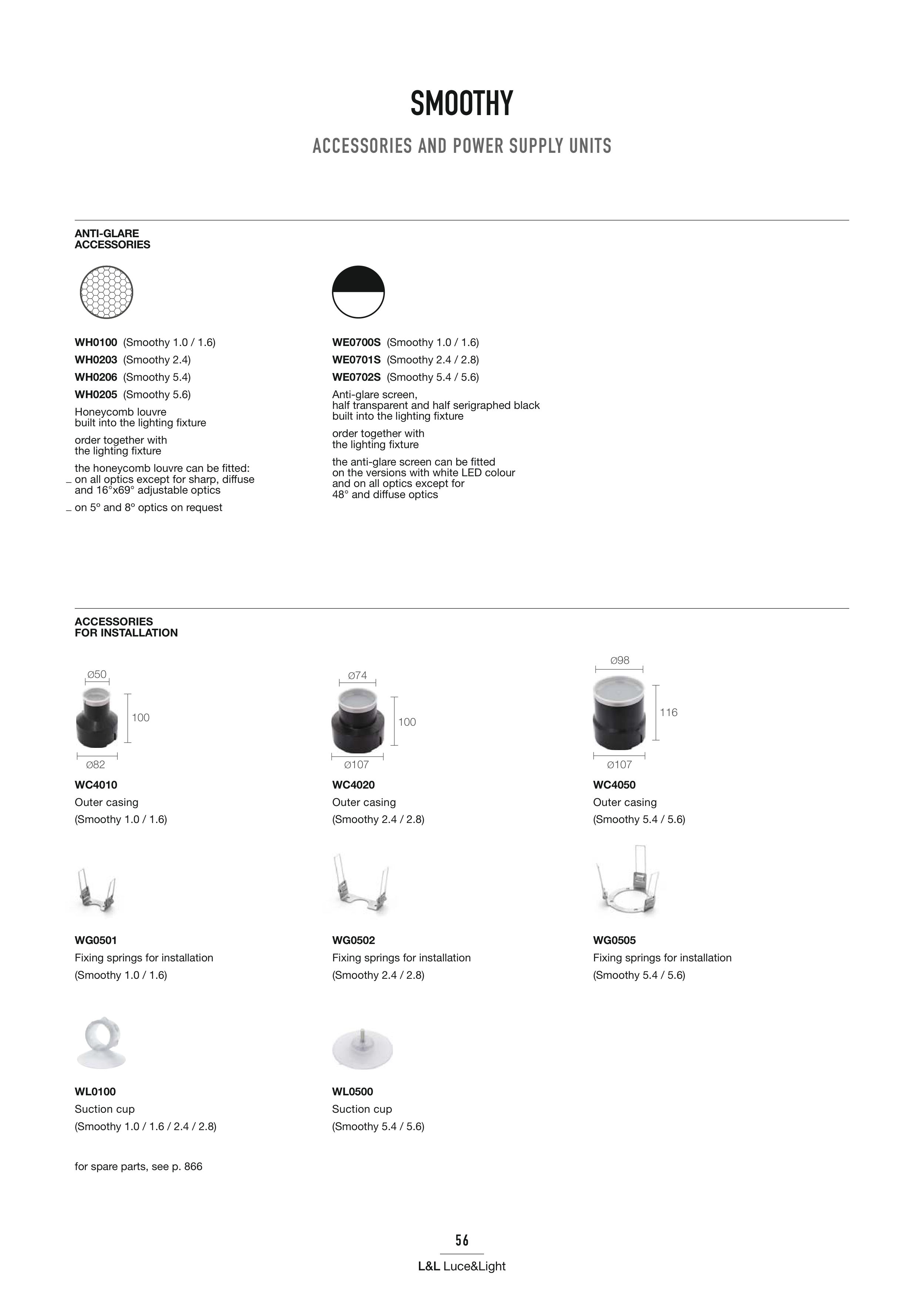

SMOOTHY
Ø50
Ø82
100
100
Ø107
Ø74
116
Ø107
Ø98
ANTI-GLARE
ACCESSORIES
WH0100 (Smoothy 1.0 / 1.6)
WH0203 (Smoothy 2.4)
WH0206 (Smoothy 5.4)
WH0205 (Smoothy 5.6)
Honeycomb louvre
built into the lighting fixture
order together with
the lighting fixture
_
the honeycomb louvre can be fitted:
on all optics except for sharp, diffuse
and 16°x69° adjustable optics
_ on 5º and 8º optics on request
WL0100
Suction cup
(Smoothy 1.0 / 1.6 / 2.4 / 2.8)
WL0500
Suction cup
(Smoothy 5.4 / 5.6)
WC4050
Outer casing
(Smoothy 5.4 / 5.6)
WC4020
Outer casing
(Smoothy 2.4 / 2.8)
WG0505
Fixing springs for installation
(Smoothy 5.4 / 5.6)
WC4010
Outer casing
(Smoothy 1.0 / 1.6)
WG0501
Fixing springs for installation
(Smoothy 1.0 / 1.6)
WG0502
Fixing springs for installation
(Smoothy 2.4 / 2.8)
ACCESSORIES
FOR INSTALLATION
WE0700S (Smoothy 1.0 / 1.6)
WE0701S (Smoothy 2.4 / 2.8)
WE0702S (Smoothy 5.4 / 5.6)
Anti-glare screen,
half transparent and half serigraphed black
built into the lighting fixture
order together with
the lighting fixture
the anti-glare screen can be fitted
on the versions with white LED colour
and on all optics except for
48° and diffuse optics
for spare parts, see p. 866
ACCESSORIES AND POWER SUPPLY UNITS
